ADEUNIS RF HCA - USER GUIDE - V1.2

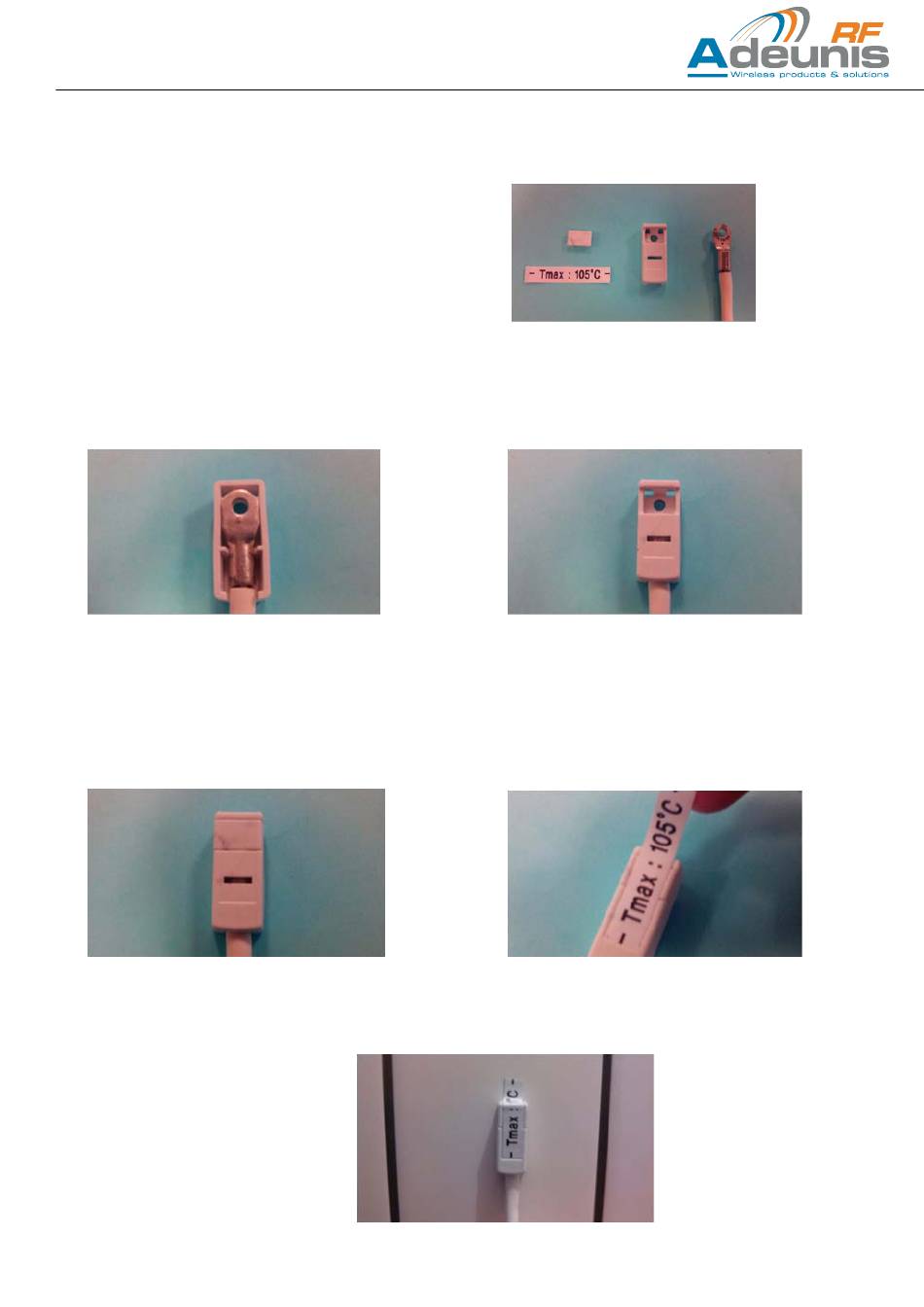

4.1. Mounting of Sensor on HCAs with Remote Sensor

Remote Sensor set is composed of 4 pieces:
• The cable with Sensor included in metallic tab.
• The plastic housing for the tab.
• The cover of plastic housing.
• The seal (sticker) to prevent unauthorized disassembly.
1st step
Insert tab into housing.
3rd step
Close the housing with its cover.
Sticker must partially overlap the radiator.
2nd step
Screw or stick it on the radiator.
4th step
Put the sticker on the housing.
Page 17 of 22
