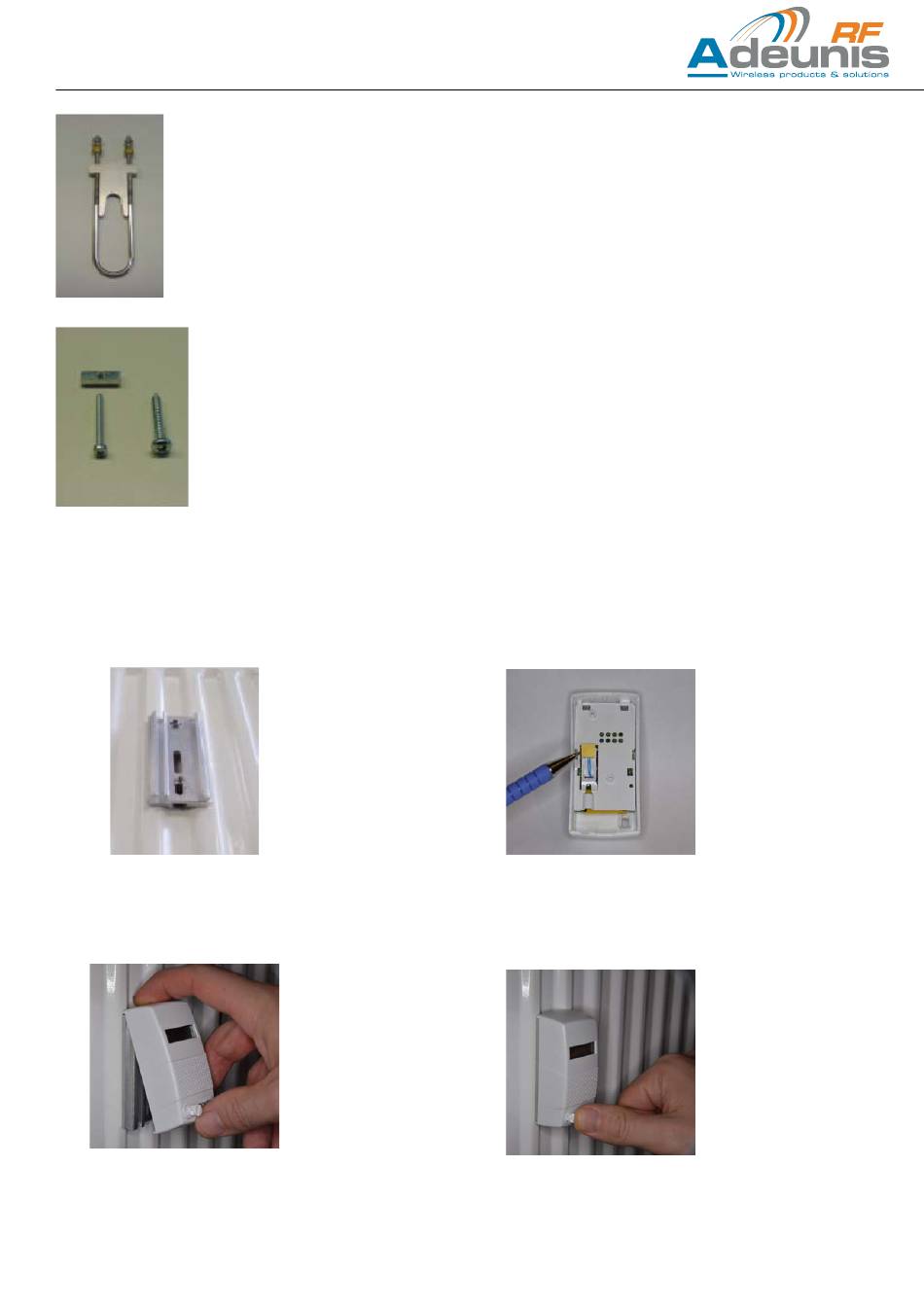

ADEUNIS RF HCA - USER GUIDE - V1.2
3.8. Convertor radiators
U bold complete set
4. Mounting of Adeunis RF HCA UNITY1
1st step
Fixing of Heat Conductor.
3rd step
Mount the HCA UNITY1 device on Heat
Conductor starting from up side.
3.9. Aluminum radiators
2 toggles for aluminum radiators.
Mounting with 2 bolts M3x25
Alternatively: 2 sheet metal screws 4,2x25
2nd step
Check that the thermal yellow conductive part
is present on sensor.
Last step
Complete the assembly by pushing the seal until
it locks.
Page
16
of 22
