Connections

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Plus CONNECTIONS
Elite

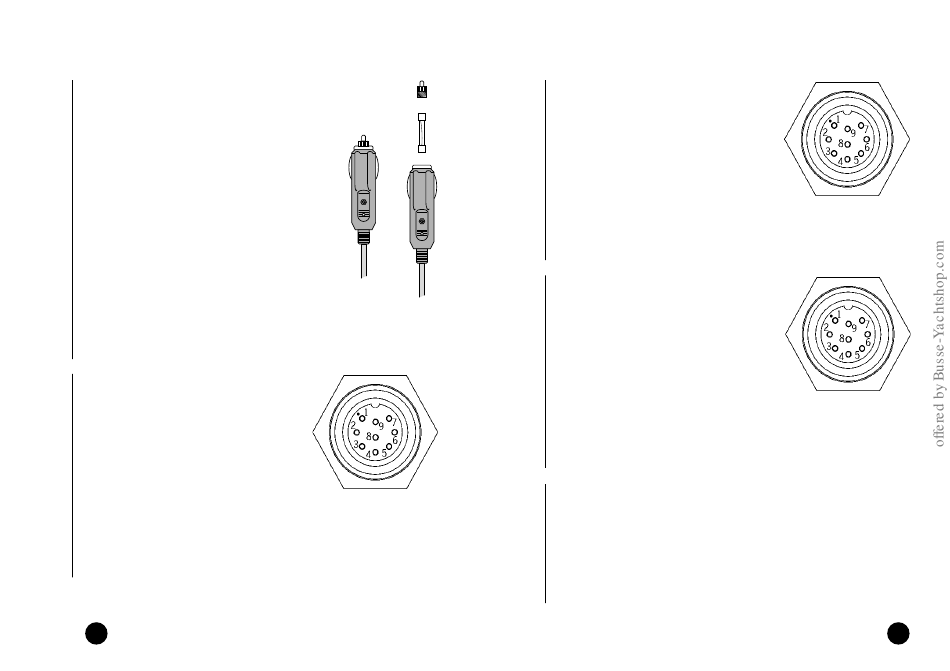

Power supply cable
The car lighter adapter has a little lamp
(LED) that goes on if the car is correctly pro-
viding power to the bracket.
If the lamp is off:
• verify that 12V voltage is available from
the lighter plug;
• open the adapter and check the fuse.
If the fuse is broken, replace it with a fuse
having the same electrical characteristics.
DO NOT USE ANY BYPASS CIRCUIT.
The fuse ensures that the special protec-
tion circuit inside the plotter works prop-
erly in case of accidental short-circuit, po-
larity inversion and overvoltage.
If you has to remove the lighter adapter,
internal connections are the following:
red (or white) +(+12V)
black - (ground)
Elite Connector and data cable
1. Auxiliary output voltage (Vaux)
red wire Vaux +, 250mA pin 1*
black wire GND
2. Data input ext. GPS/DGPS
brown wire ext. GPS in +
yellow wire ext. GPS in -
3. Data output
violet wire Autopilot out + pin 5
white wire Autopilot out -
4. Data input depth sounder
blue wire DS in +
green wire DS in -
SHIELD
* Vaux voltage is the same as the plotter's input voltage.
18
fuse
LED
pin 2
pin 3
pin 4
pin 6
pin 7
pin 8
pin 9
Connector and power supply / data cable
Cabin
1. Power supply input
red wire Vin + (11-18VDC),
250mA
black wire Vin -
2. Ext. GPS data input
brown wire data in +
yellow wire data in -
3. Autopilot data output
violet wire data out +
white wire data out -
4. Depth sounder data input
blue wire data in +
green wire data in -
SHIELD
Regatta Connector and power supply / data cable
1. Power supply input
red wire Vin + (11-18VDC),
250mA
black wire Vin -
2. Ext. GPS/DGPS data input
brown wire data in +
yellow wire data in -
3. Autopilot data output
violet wire data out +
white wire data out -
4. Anemometer/depth sounder
data input
blue wire data in +
green wire data in -
SHIELD
Elite If sent by the autopilot, the following NMEA messages are transmitted to
Cabin
external devices: GGA - RMC - ZDA
Regatta
The GEONAV will add the following messages: APA - APB - XTE - RMB -
BWC - GLL - VTG
The data cable is supplied together with the GEONAV plotter.
WARNING: Once the installation is completed, always make sure that all wires are properly con-
nected since wrong connections may damage the unit.
pin 1
pin 2
pin 3
pin 4
pin 5
pin 6
pin 7
pin 8
pin 9
pin 1
pin 2
pin 3
pin 4
pin 5
pin 6
pin 7
pin 8
pin 9
