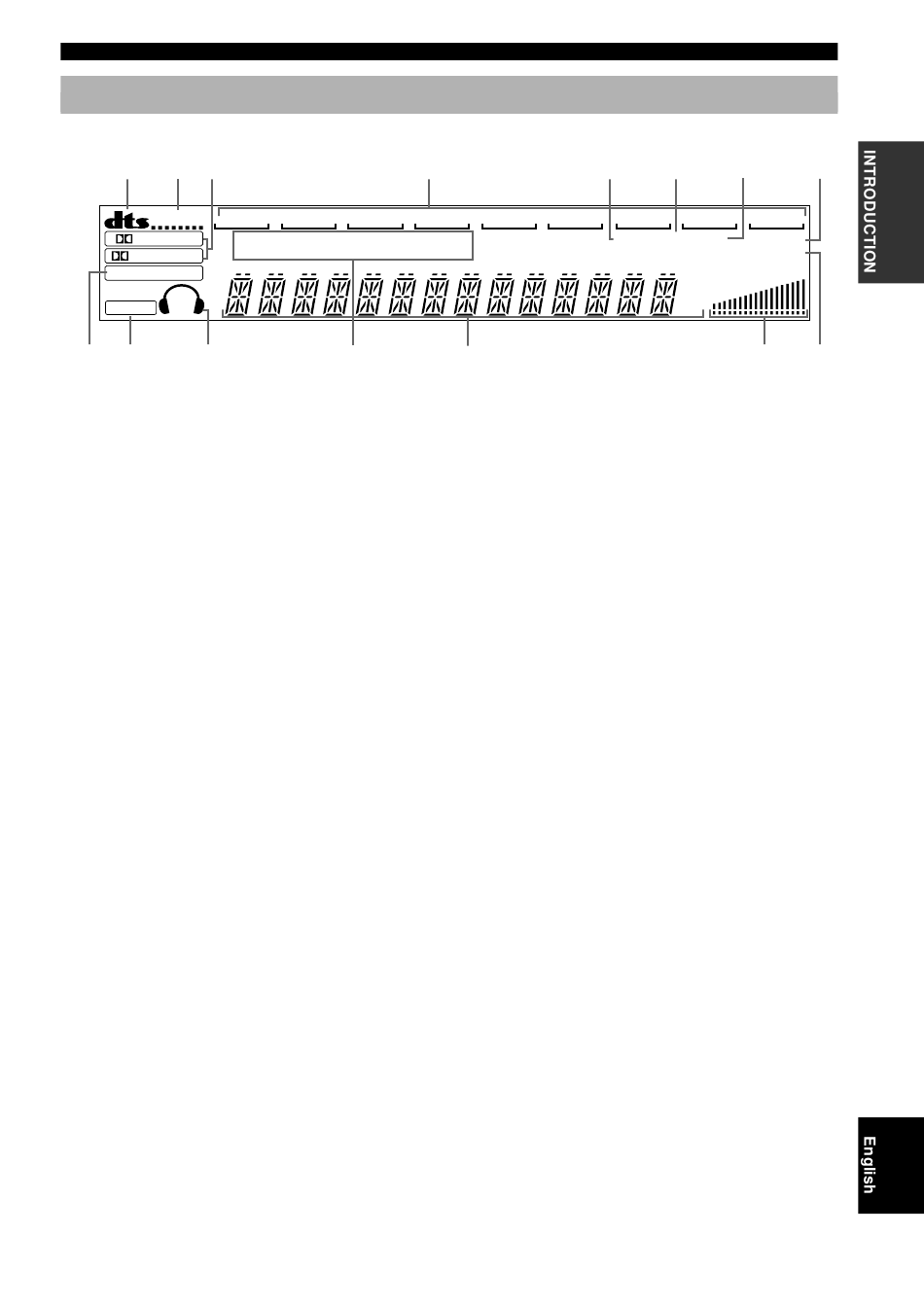

Front Panel Display

1 2 3
V-AUX
VIRTUAL
DIGITAL
PRO LOGIC
DSP
SP
PCM
A B
0 q
9
1
t indicator
Lights up when the built-in DTS decoder is on.
2
VIRTUAL indicator
Lights up when using Virtual CINEMA DSP.
3
g and o indicators
Light up according to the type of Dolby signals this unit
is reproducing. " g " lights up when the built-
in Dolby Digital decoder is on. " o " lights up
when the built-in Dolby Pro Logic decoder is on.
4
Input source indicator
Shows the current input source with a cursor.
5
TUNED indicator
Lights up when this unit tunes in to a station.
6
STEREO indicator
Lights up when the unit is receiving a strong signal for an
FM stereo broadcast while the "AUTO" indicator is lit.
7
AUTO indicator
Shows that this unit is in the automatic tuning mode.
8
MEMORY indicator
Flashes to show a station can be stored.
VCR2/DVR VCR 1
DOLBY DIGITAL MOVIE THEATER 1 2
PRO LOGIC DTS ENTERTAINMENT
w
4
D-TV/CBL DVD MD/CD-R
e
9
x indicator
Lights up when you select a DSP program.
0
v indicator
Lights up when this unit is reproducing PCM (pulse code
modulation) digital audio signals.
q
Headphones indicator
Lights up when headphones are connected.
w
DSP program indicators
The name of the selected DSP program lights up when the
ENTERTAINMENT, MOVIE THEATER 1, MOVIE
THEATER 2 or q/DTS SURROUND DSP program is
selected.
e
Multi-information display
Shows the current DSP program name and other
information when adjusting or changing settings.
r
VOLUME level indicator
Indicates the volume level.
t
SLEEP indicator
Lights up while the sleep timer is on.
CONTROLS AND FUNCTIONS
