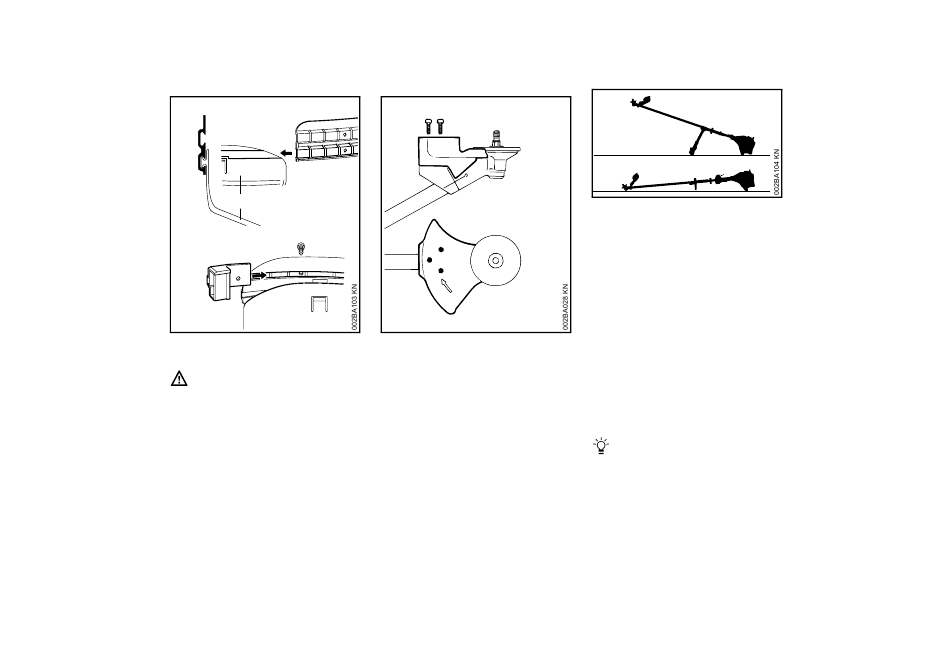

Fitting skirt and blade
These parts must be fitted to the
deflector (1) when you use a
mowing head:
:
Slide the lower guide slot of the
skirt (4) onto the deflector (1) – it
must snap into position.
:
Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
:
Fit the screw and tighten it down
firmly.
FS 120, FS 200, FS 250
7 7
6
7
Mounting the stop
:
Always fit stop (6) when you use a
circular saw blade.
:
Place the stop on the gearhead
flange.
:
Fit the three M 5 x 18 screws (7) and
tighten down securely.
English

Mounting the Cutting Tools

Preparations
:
Lay your brushcutter on its back
with the gearhead facing upward.
Mounting Hardware
for Cutting Tools
The mounting hardware supplied
depends on the cutting tool that comes
as original equipment with the new
brushcutter.
Mounting hardware is not packed
with the machine
Only mowing heads may be
mounted.
