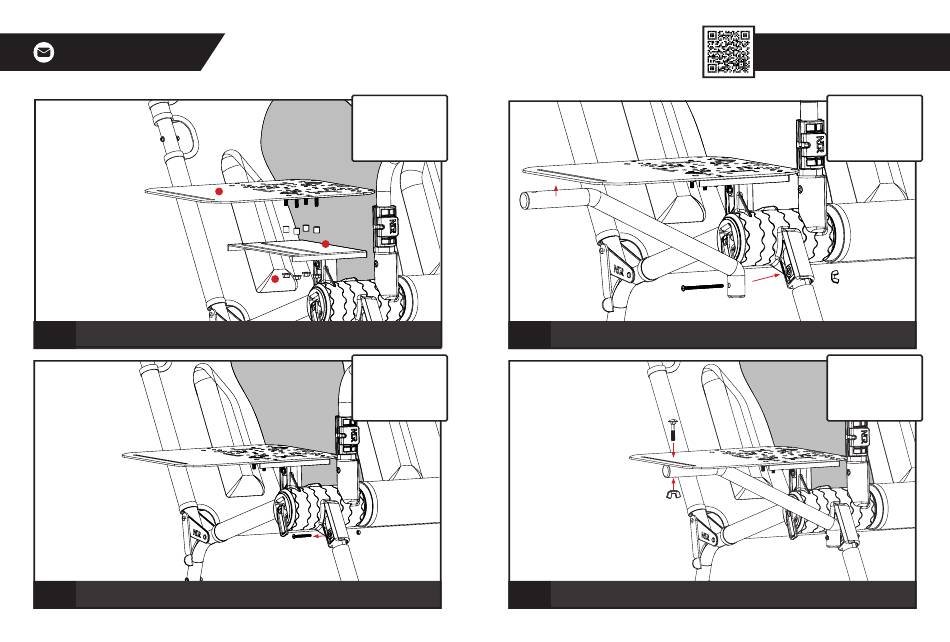

Install large mouse plate(1) using the plastic spacers(2) between the flight plate and adjuster plate
securing with washers and nuts(3)
21
Remove bolt from front leg on the large mouse plate side
All manuals and user guides at all-guides.com
PARTS
4 x M6 FULLY THREADED STUDS
4 x PLASTIC SPACER
4 x M6 FLANGE NUTS
4 X WASHER
2
3
PARTS
NIL
16
22
Install large mouse plate support bar with M5 60mm bolt through the front leg. Line up the slot in the
large plate with the support pole
23
Secure support pole to large mouse plate using the square neck bolt and wingnut supplied
Video Instruction: bit.ly/nlrbuild
PARTS
1 x M5 60MM
1 x WINGNUT
PARTS
1 x M6 SQUARE NECK BOLT
1 x WINGNUT
