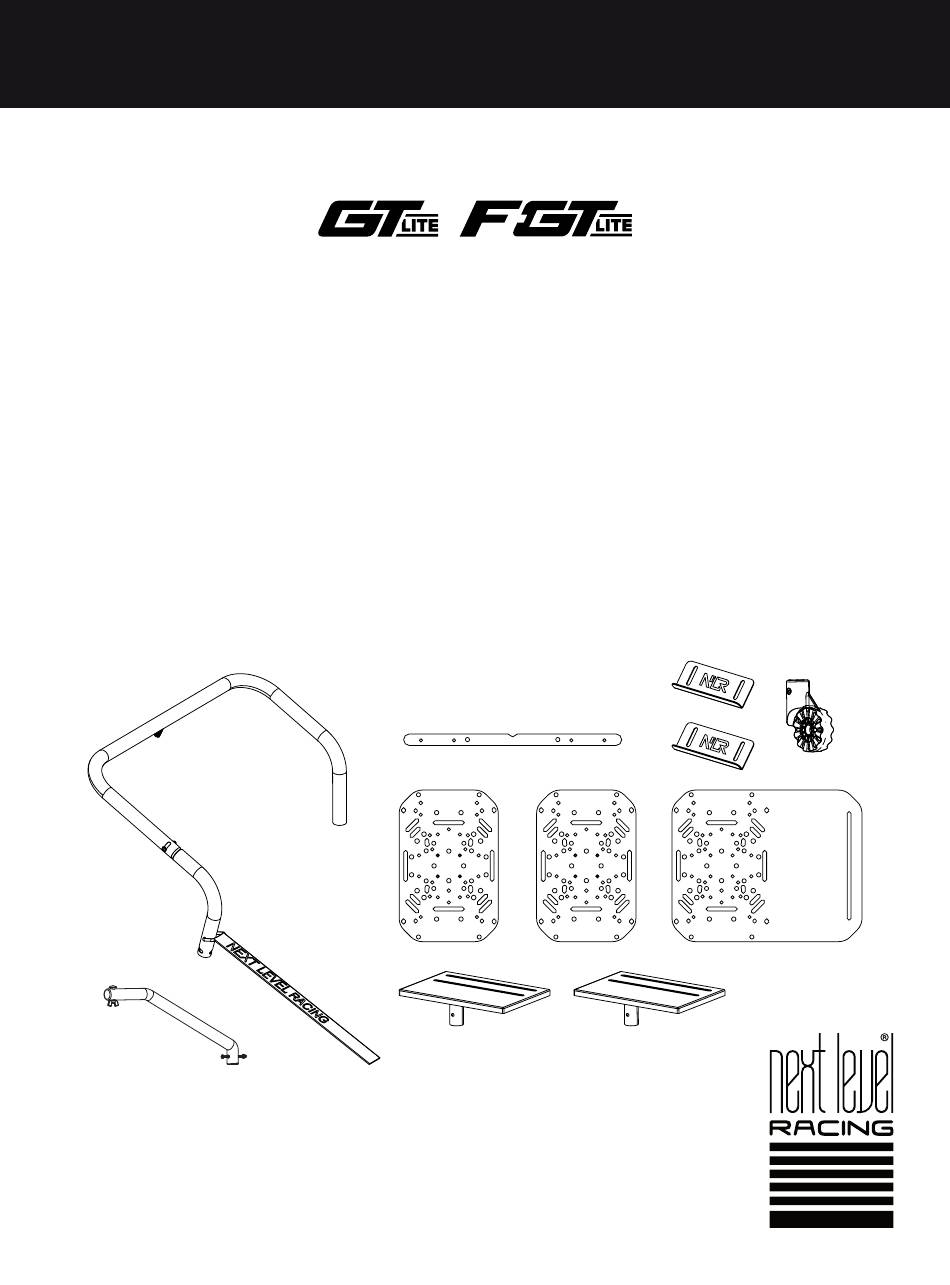

- Page 1 All manuals and user guides at all-guides.com T A K E R A C I N G T O T H E N E X T L E V E L® Video Instruction: bit.ly/nlrbuild FLIGHT PACK INSTRUCTION MANUAL...
- Page 2 T O T H E N E X T L E V E L® instruction booklet to fully optimize your product. N E X T L E V E L R A C I N G . C O M ASSEMBLY VIDEO bit.ly/nlrbuild @next_level_racing @nextlevelracingOfficial @nextlvlracing Next Level Racing FOLLOW support@nextlevelracing.com...
- Page 3 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PRE-RACE IN THE CHECKS WARNING • Please do not use power tools for assembly as over tightening can damage your frame. • Do not adjust the hubs while user is sitting in cockpit. Make sure user is out of the cockpit before adjusting. •...
- Page 4 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS Your final setup should look like this Remove shifter plate PARTS PARTS If the hub on the right side of the chair is reversed as shown in the image swap it over with supplied hub using steps 3-7 This bolt assembly will be re-used.
- Page 5 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS Please take not of how the hub comes apart as this will be re-installed Remove cam bolt, red spacer, and end hub ring Re-assemble hub as shown PARTS PARTS NEW HUB...
- Page 6 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS 1 x M5 30MM 1 x M5 WASHER 1 x M5 NUT Install new adjustment plate using bolt from shifter in step 2 Lift wheel plate off assembly PARTS PARTS 4 x M6 COUNTERSUNK...
- Page 7 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS Remove angle adjuster Remove wheel bar from cockpit PARTS PARTS 1 x M5 30MM 1 x FLIGHT BAR 1 x M5 WASHER 1 x M5 NUT This bolt will be used for re-installation later Remove bolt from wheel bar Install flight bar to cockpit (supplied with flight pack)
- Page 8 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS 1 x M5 30MM 1 x M5 WASHER 1 x M5 NUT Re-install bolt from step 13 Install wheel plate to clamp using nuts and bolts from step 09 PARTS PARTS 4 x M6 FULLY THREADED STUDS...
- Page 9 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS 4 x M6 FULLY THREADED STUDS 1 x M5 60MM 4 x PLASTIC SPACER 1 x WINGNUT 4 x M6 FLANGE NUTS 4 X WASHER Install large mouse plate(1) using the plastic spacers(2) between the flight plate and adjuster plate Install large mouse plate support bar with M5 60mm bolt through the front leg.
- Page 10 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS 3 x NLYON SPACERS 3 x M6 FULLY THREADED STUDS 3 x M6 FLANGE NUT OPTIONAL for flight plate install for yoke To use keyboard tray setup see step 27 (optional) Install flight plate(1) to the wheel plate(2) using nuts(3) for hard mounting yoke Slide rudder plates forward and back to adjust sizing for your rudders PARTS...
- Page 11 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS PARTS TPR pedal users only Bolt through the TPR adapter mounting it to the rudder plates Adjust plates to suit your keyboard width PARTS PARTS 4 x M6 30MM FULLY THREADED STUD TPR pedal users only TPR pedal users only...
- Page 12 All manuals and user guides at all-guides.com Video Instruction: bit.ly/nlrbuild support@nextlevelracing.com PARTS 2 x M6 WASHERS 2 x M6 FLANGE NUTS TPR pedal users only Secure with included nuts PARTS 2 x M6 15MM 4 X M6 WASHERS TPR pedal users only Align rudder plate with the holes on the TPR rudders then secure...
