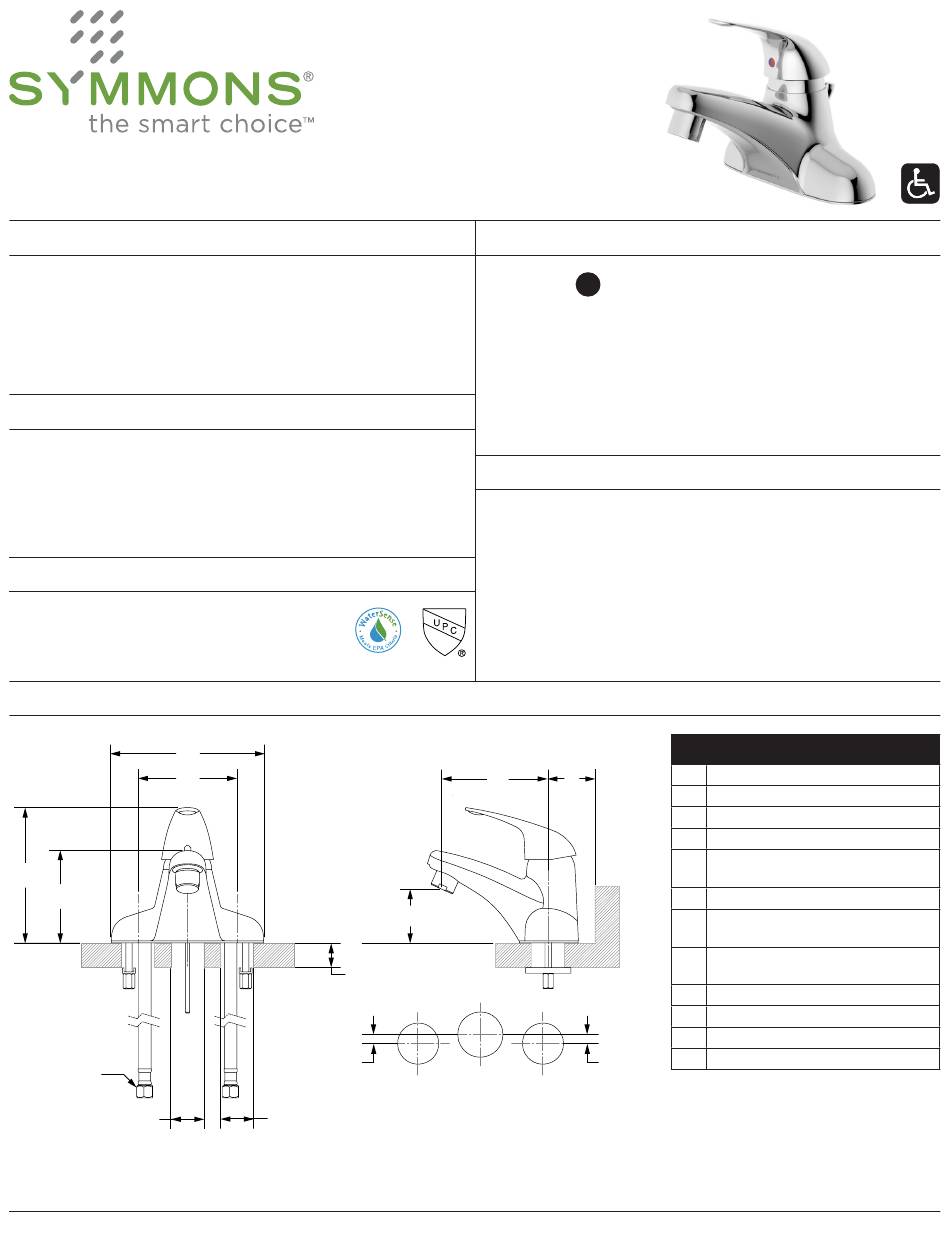

Symmons Origins S-9610-1.5 Manuel D'installation

S-9610-1.5, S-9612-1.5
Single Handle Centerset Lavatory Faucet
Specification Submittal
Feature Highlights
• 4" mount
• Quarter turn ceramic cartridge
• 50/50 drain assembly (S-9612-1.5 only)
• Temperature limit stop included
• Components shall be metal and nonmetallic construction,
plated in standard polished chrome finish
Model Numbers
☐
S-9610-1.5
Single handle centerset lavatory faucet, drain and lift rod
hole not included.
☐
S-9612-1.5
Single handle centerset lavatory faucet
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 61.9; NSF/ANSI 372
- WaterSense 1.5 gpm (5.7 L/min)
Dimensions
A A
B B
C C
D D
F F
G G
Note: Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2018 Symmons Industries, Inc.
Location:
Origins
c
Certified by
IAPMO R&T
K K
E E
L L
H H
■ ■
31 Brooks Drive Braintree, MA 02184
■
symmons.com
®
Options/Modifications
☐ CG
-0.5 0.5 gpm (1.9 L/min) flow restrictor
☐
-1.0
1.0 gpm (3.8 L/min) flow restrictor
☐
-G
Grid drain (S-9610 only)
☐
-MP Metal pop-up drain
☐
-OFG Offset grid strainer (S-9610 only)
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
J J
I I
L L
■
Phone: (800) 796-6667
■
gethelp@symmons.com
Measurements
A 5 7/8", 149 mm
B 3 3/4", 95 mm
C 5 1/4", 133 mm
D 3 1/2", 89 mm
Deck Thickness Ref.
E
Max. 1 1/8", 29 mm
F 3/8" Compression Fitting
Hole Size
G
Min. Ø 1 3/8", 35 mm
(2x) Hole Size
H
Min. Ø 1 1/4", 32 mm
4 1/4", 108 mm
I
Min. 2", 51 mm
J
K 2", 51 mm
L 1/4", 6 mm
■
Fax: (800) 961-9621
■ ■
ZV-1295 REV C 110218
