BATH MIXING PROGRAM
PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN
PROGRAMA MEZCLADORES BAÑO
Art. 58019
Gessi SpA - Parco Gessi
13037 Serravalle Sesia (Vercelli) - Italy
Phone +39 0163 454111 - Facsimile +39 0163 459273
www.gessi.com - gessi@gessi.it

Publicité

loading

Sommaire des Matières pour Gessi INCISO 58019

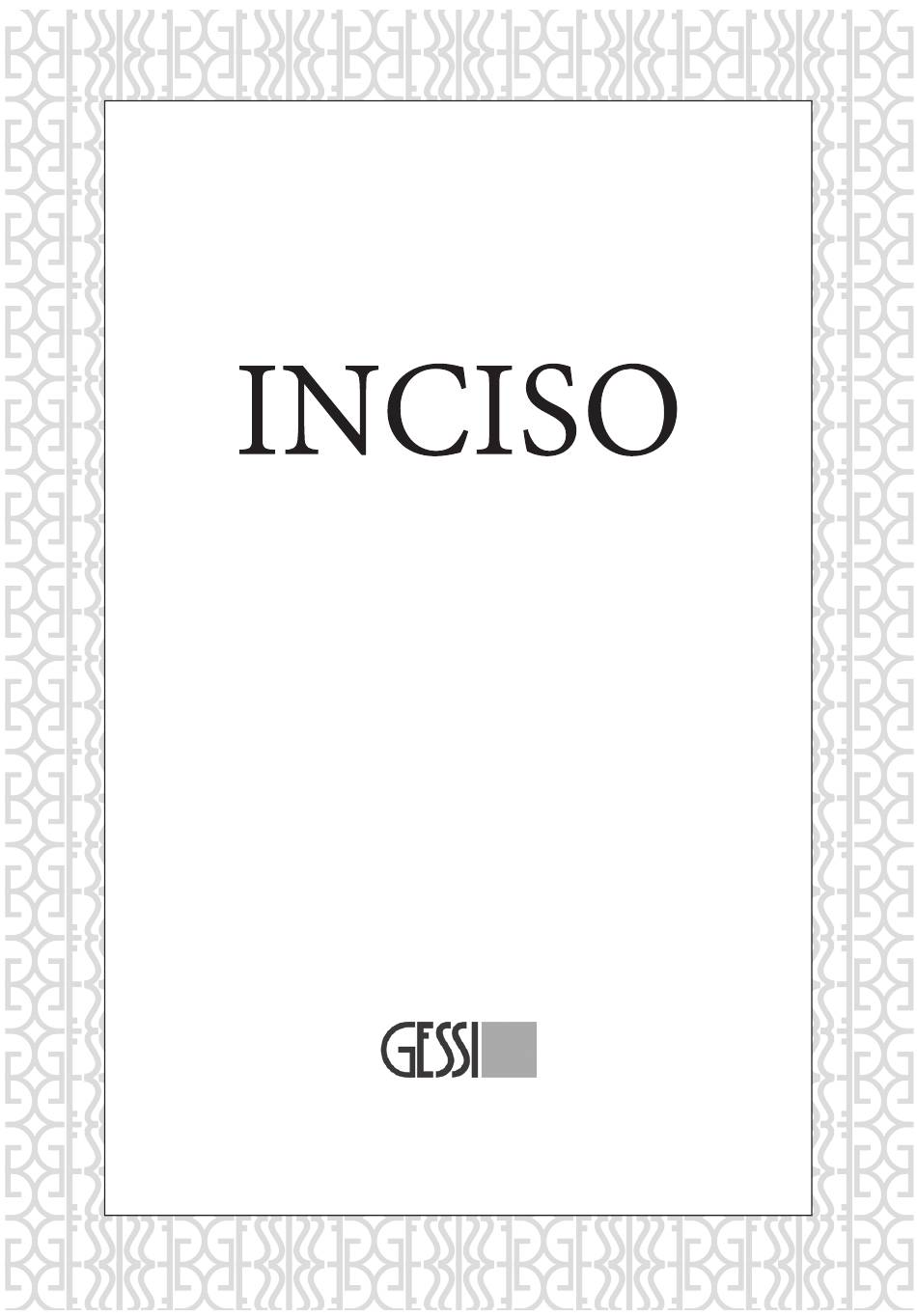

  • Page 1 All manuals and user guides at all-guides.com BATH MIXING PROGRAM PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN PROGRAMA MEZCLADORES BAÑO Art. 58019 Gessi SpA - Parco Gessi 13037 Serravalle Sesia (Vercelli) - Italy Phone +39 0163 454111 - Facsimile +39 0163 459273 www.gessi.com - gessi@gessi.it...
  • Page 2 MUST NEVER BE EXCEEDED, as it may damage and/or cause ruptures and/or leakages and/or even break the product, and present a potential hazard and danger to safety, health and/or property. Following are the technical data with respect to the installation of Gessi plumbing products. ► W orkingpressureshouldnotbelowerthan0,5bar(7,25psi)andnotbehigherthan5bar(72Psi).In case of higher working pressure use a pressure reducer valve.
  • Page 3 Ci-dessous nous indiquons les données techniques concernant l’installation des produits sanitaires Gessi. ► L apressiondeservicenedoitpasêtreinférieureà0,5bar(7,25psi)etsupérieureà5bar(72Psi).En cas de pressions de service plus hautes utiliser une soupape de réduction de la pression.
  • Page 4 1 - ¡CUIDADO!! LES ROGAMOS QUE TENGAN EN CUENTA QUE NUNCA la presión y/o la temperatura máximaaconsejadaNOTIENEQUESERSUPERADA,yaquepodríadañary/ocausarrupturasy/o pérdidasy/oaveríasdelproductoy,porlotanto,representarunriesgoyunpeligropotencialpara la seguridad, la saludad y/o la propiedad. A continuación Les proporcionamos los datos técnicos relativosalainstalacióndelosproductosdegriferíaGessi. ► L apresióndeejercicionotienequeserinferiora0,5bar(7,25psi)ysuperiora5bar(72Psi).Encaso depresionesdeejerciciomayores,utilicenunaválvuladereduccióndelapresión. ►Presiónmáximadeensayodurantelainstalación:8bar(116psi). ► E vitengrandesdiferenciasdepresiónentrelaalimentacióndelaguafríayaquelladelaguacaliente. Lasdiferenciasdepresión,elaguaconunalatocontenidomineralylassustanciasjabonosaspueden...
  • Page 5 All manuals and user guides at all-guides.com PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES...
  • Page 6 All manuals and user guides at all-guides.com PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers.
  • Page 7 All manuals and user guides at all-guides.com PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers.
  • Page 8 All manuals and user guides at all-guides.com PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Package content: Contenido de la caja: A - Finish plate A - Placa de acabado B - Fastening plate B-Placadefijación C - Plate fastening screws C-Tornillosdefijaciónplancha D - Solenoid valve D - Electroválvula E - Cover plate E - Placa de cobertura...
  • Page 9 All manuals and user guides at all-guides.com PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES 13/16” [21 mm] 3/4” [19 mm] 11/16” [18 mm] 1/4” 1/16” [6 mm] [2 mm] 1/8” 1/8” [2,5 mm] [3 mm] - Installation tools - Outils nécessaires pour l’installation - Herramienta necesaria para la instalación...
  • Page 10 All manuals and user guides at all-guides.com INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 1 Fig. 2 1/8” [3 mm] 1/4” Fig. 3 Fig. 4 [6 mm] 3/4” [19 mm]...
  • Page 11 All manuals and user guides at all-guides.com INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 5 Fig. 6 1/8” [2,5 mm] Fig. 7 Fig. 8 Fig. 9 1/16” [2 mm]...
  • Page 12 All manuals and user guides at all-guides.com INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 10 Fig. 11 13/16” 3/4” [21 mm] [19 mm] Fig. 12 Fig. 13 Fig. 14 Fig. 15...
  • Page 13 All manuals and user guides at all-guides.com INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 16 Fig. 17 Fig. 18 Fig. 19 1/8” [2,5 mm]...
  • Page 14 All manuals and user guides at all-guides.com WORKING - FONCTIONNEMENT - FUNCIONAMIENTO STANDARD SETTING Fig. 20 Fig. 21 Fig. 22 COLD TEMPERATURE 4 mm REGULATION...
  • Page 15 All manuals and user guides at all-guides.com WORKING - FONCTIONNEMENT - FUNCIONAMIENTO DETECTION RANGE ADJUSTAMENT Fig. 23 Fig. 25 Fig. 24 Fig. 26 Fig. 27...
  • Page 16 All manuals and user guides at all-guides.com WORKING - FONCTIONNEMENT - FUNCIONAMIENTO For a customized detection distance: 1.Disconnectthesupply(batteryorfeeder). 2.Waitforsomesecondsandreconnectthesupply. 3.Positionthehandatlessthan5cmoppositetothesensor,whiletheledlightisblinking. 4.Withsteadylight,movethehandtothedesiredpositionwithinthedetectionrange. 5.Beforeremovingthehand,waitforthelightswitchingoff.Atthispoint,thenewdistanceisstored. Pour une distance de détection personnalisée: 1.Débrancherl’alimentation(pileoualimentation) 2.Attendrequelquessecondesetrebrancherl’alimentation. 3.Positionnerlamainàmoins5cmdevantlecapteurpendantquelaledclignote. 4. L orsquelalumièreleddevientfixe,déplacerlamainàlapositionsouhaitéedanslechampdedétection indiqué. 5. A ttendre que la lumière led s’éteigne avant de retirer la main, à ce point la nouvelle distance de détection est mémorisée.
  • Page 17 All manuals and user guides at all-guides.com MAINTENANCE - ENTRETIEN - MANUTENCIÓN MAINTENANCE •   S houlditbenecessarytoreplaceoneormorecomponents,contactanauthorized retailerorvisitWWW.GESSI.COM •Productmaintenanceshouldbemadeonlybyqualifiedstaff ENTRETIEN • S ’ilestnécessairederemplacerunouplusieurscomposants,contacteruncentre autoriséouvisiterlesiteWWW.GESSI.COM •L’entretienduproduitnedoitêtreeffectuéquepardupersonnelqualifié MANUTENCIÓN • E nelcasodequeseanecesarioremplazarunoomáscomponentes,contacten conunrevendedorautorizadoovisitenelsitioWWW.GESSI.COM •Encarguensóloapersonalcalificadoparaelmantenimientodelproducto...
  • Page 18 All manuals and user guides at all-guides.com MAINTENANCE - ENTRETIEN - MANUTENCIÓN ELECTROVALVE REPLACEMENT - REMPLACEMENT DE L’ÉLECTROVALVE - SUSTITUCIÓN DE LA ELECTROVÁLVULA Fig. 2 CLOSE 1/4” 1/8” Fig. 1 [6 mm] [2,5 mm] Fig. 3 Fig. 4 13/16” [21 mm]...
  • Page 19 All manuals and user guides at all-guides.com MAINTENANCE - ENTRETIEN - MANUTENCIÓN CARTRIDGE REPLACEMENT - SUBSTITUTION DE LA CARTOUCHE - SUSTITUCIÓN DEL CARTUCHO Fig. 2 CLOSE 1/4” 1/8” Fig. 1 [6 mm] [2,5 mm] Fig. 3 Fig. 4 1/8” [2,5 mm] 1-1/8”...
  • Page 20 All manuals and user guides at all-guides.com MAINTENANCE - ENTRETIEN - MANUTENCIÓN CLEANING / REPLACEMENT OF FILTERS - NETTOYAGE / REMPLACEMENT DES FILTRES LIMPIEZA / SUSTITUCIÓN DE LOS FILTROS Fig. 2 CLOSE 1/8” Fig. 1 [2,5 mm] Fig. 3 Fig. 4 3/4”...
  • Page 21 All manuals and user guides at all-guides.com MAINTENANCE - ENTRETIEN - MANUTENCIÓN PHOTOCELL REPLACEMENT - REMPLACEMENT DE PHOTOCELLULE - SUSTITUCIÓN DE LA FOTOCÉLULA Fig. 2 CLOSE 1/4” 1/8” Fig. 1 [6 mm] [2,5 mm] Fig. 3 Fig. 5 Fig. 4 1/16”...
  • Page 22 All manuals and user guides at all-guides.com MAINTENANCE - ENTRETIEN - MANUTENCIÓN PHOTOCELL REPLACEMENT - REMPLACEMENT DE PHOTOCELLULE - SUSTITUCIÓN DE LA FOTOCÉLULA Fig. 6 Fig. 7 1/8” [2,5 mm] Fig. 8...
  • Page 23 All manuals and user guides at all-guides.com...
  • Page 24 All manuals and user guides at all-guides.com GIS007400-R1...
