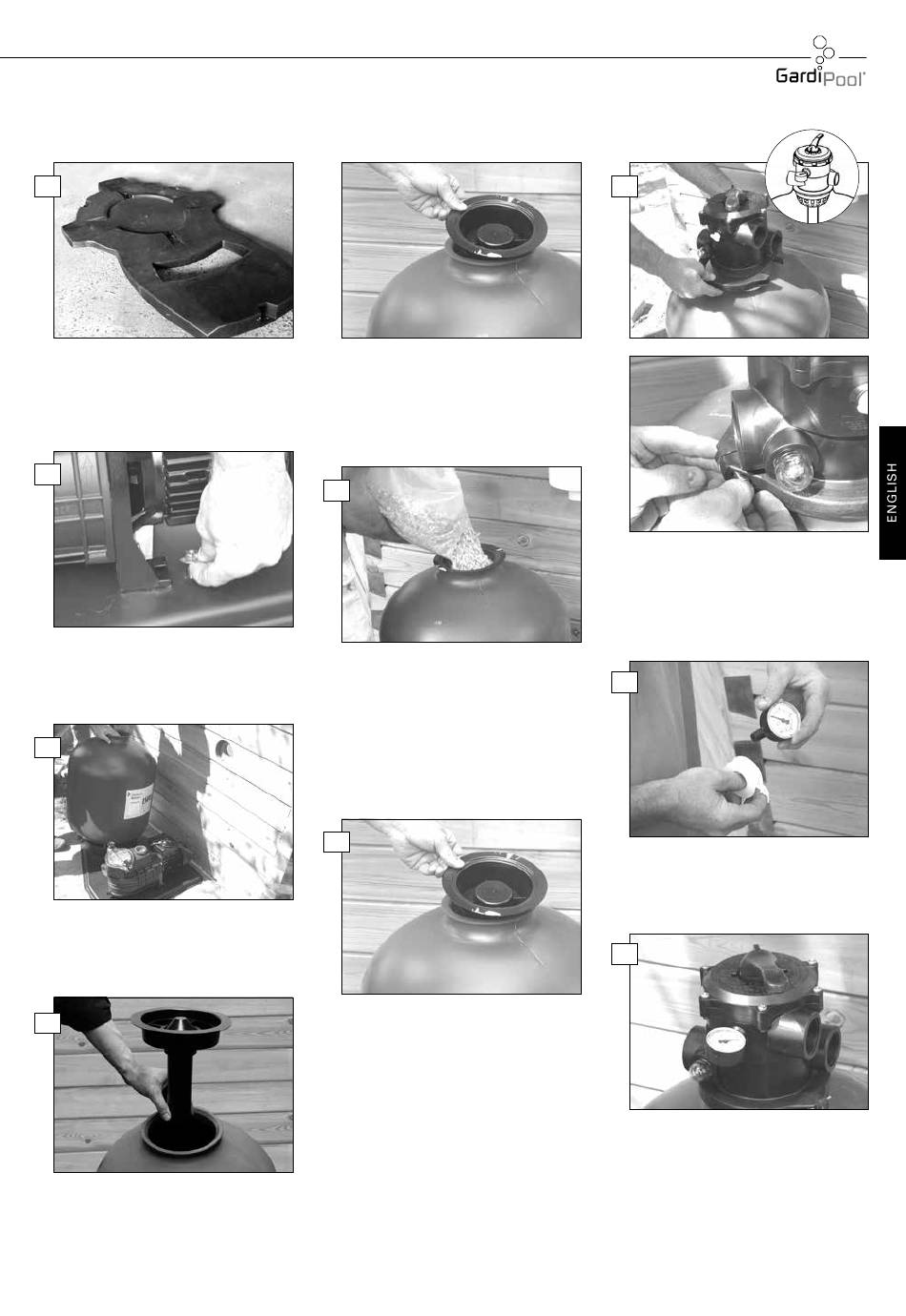

2.4.2 Monobloc

1
Place the installation in the final position;
bear in mind that the 6-way valve must
remain accessible.
_____
2
Attach the pump to the pedestal with the
enclosed bolts (+nuts and washers).
_____
3
Place the filter on the pedestal and fill it
with a 1/3rd water.
_____
4
Make sure that the plastic protection
(funnel) is placed on top of the filter to
prevent sand/gravel from falling into the
mouthpiece of the branch pipe.
_____
5
Fill the filter first with gravel (3-5mm) and
then with sand (0.4-0.8mm).
The sand has an unlimited lifetime and
only need to be topped up in case sand
is lost. Mark the level of sand/gravel to
be able to refill the filter to the correct
level at a later time.
_____
6
After filling the filter, remove the residue
of sand at the top of the filter and
remove the funnel.
_____
7
The 6-way valve is now placed on the
filter and the clamp is fixed around the
filter. This is how the valve is connected
to the filter.
_____
8
Now apply Teflon tape to the outer thread
of the manometer.
_____
9
Unscrew the little valve at the side of the
valve to fit the manometer.
_____
