Redfox STP 70/08 G Notice D'installation Et D'emploi page 7

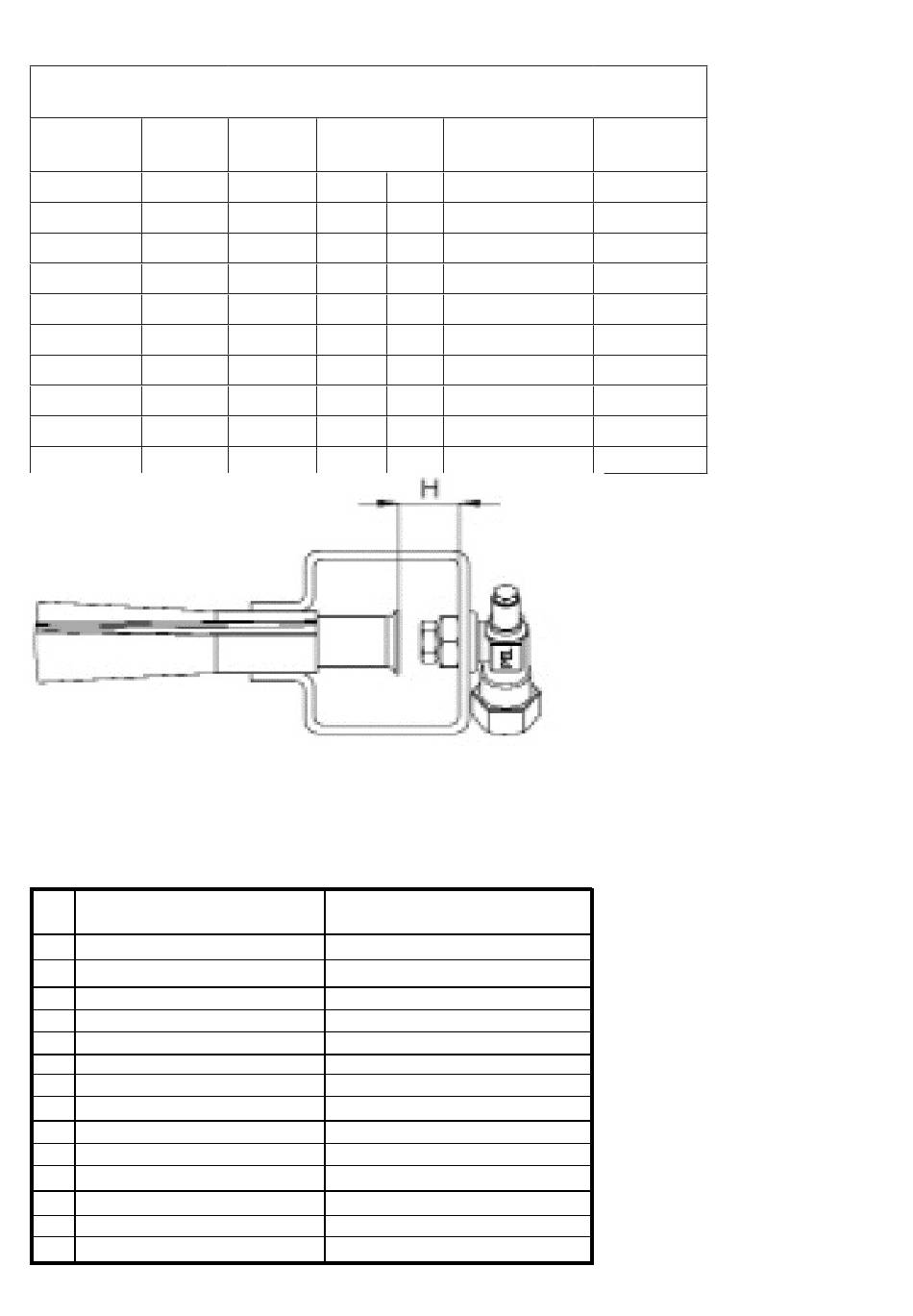

Nozzle table
plyn tryska č.10
ø [0,01mm]
G30 30 mbar 19
G30 37 mbar 19
G30 50 mbar 19
G31 37 mbar 19
G20 20 mbar 36
G20 25 mbar 36
G25 25 mbar 36
G25.1 25 mbar 36
G27 20 mbar 36
G27 20 mbar 27
The maximum and reduced rated heat input in kW is related to the Hi of the gas used.
If the product is connected to LPG, the gas cylinder must be in a sufficiently ventilated room.
Table of gases for which the product is intended
AL,AT,BG,CY,HR,DK,EE,FI,GR,LV
LT,MK,NO,RO,SK,SI,SE,CH,TR
II2H3B/P
Cat.
20, 30, 50
Pn
LU
I2E
Cat.
20
Pn
BE, FR
II2E+3+
Cat.
Pn 20/25, 28-30/37
IS, MT
I3B/P
Cat.
30
Pn
HU
II2HS3B/P
Cat.
30,25
Pn
Oven pilot - 404000003 - 0,23 kW
kód spotřeba
404000241 0,0123 kg/h
404000241 0,0146 kg/h
404000241 0,0167 kg/h
404000241 0,0157 kg/h
404000221 0,024 m3/h
404000221 0,021 m3/h
404000221 0,025 m3/h
404000221 0,024 m3/h
404000221 0,024 m3/h
404547031 0,016 m3/h
AL,CY,GR,IE,IT,LT,MK,PT,GB,CZ,SK
nastavení prim.
vzduchu
-
SI,ES,CH,TR
II2H3+
20, 28-30/37
NL, RO
II2L3B/P
25,30
DE
II2ELL3B/P
20,50
RO
II2E3B/P
20,30
PL
II2ELwLs3B/P
20,13,37
-
