English

Wall Mounting

DCB107, DCB112, DCB113, DCB115, DCB118, DCB132
These chargers are designed to be wall mountable or to sit
upright on a table or work surface. If wall mounting, locate
the charger within reach of an electrical outlet, and away
from a corner or other obstructions which may impede
air flow. Use the back of the charger as a template for
the location of the mounting screws on the wall. Mount
the charger securely using drywall screws (purchased
separately) at least 1" (25.4 mm) long, with a screw head
diameter of 0.28–0.35" (7–9 mm), screwed into wood to an
optimal depth leaving approximately 7/32" (5.5 mm) of the
screw exposed. Align the slots on the back of the charger
with the exposed screws and fully engage them in the slots.
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
COMPONENTS (FIG. A)

WARNING: Never modify the product or any part of it.
Damage or personal injury could result.

Intended Use

This impact driver is a professional power tool and is
designed for impact screwdriving applications. The impact
function makes this tool particularly useful for driving
fasteners in wood, metal and concrete.
DO nOT use under wet conditions or in presence of
flammable liquids or gases.
DO nOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
this tool.

ASSEMBLY AND ADJUSTMENTS


WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can cause injury.

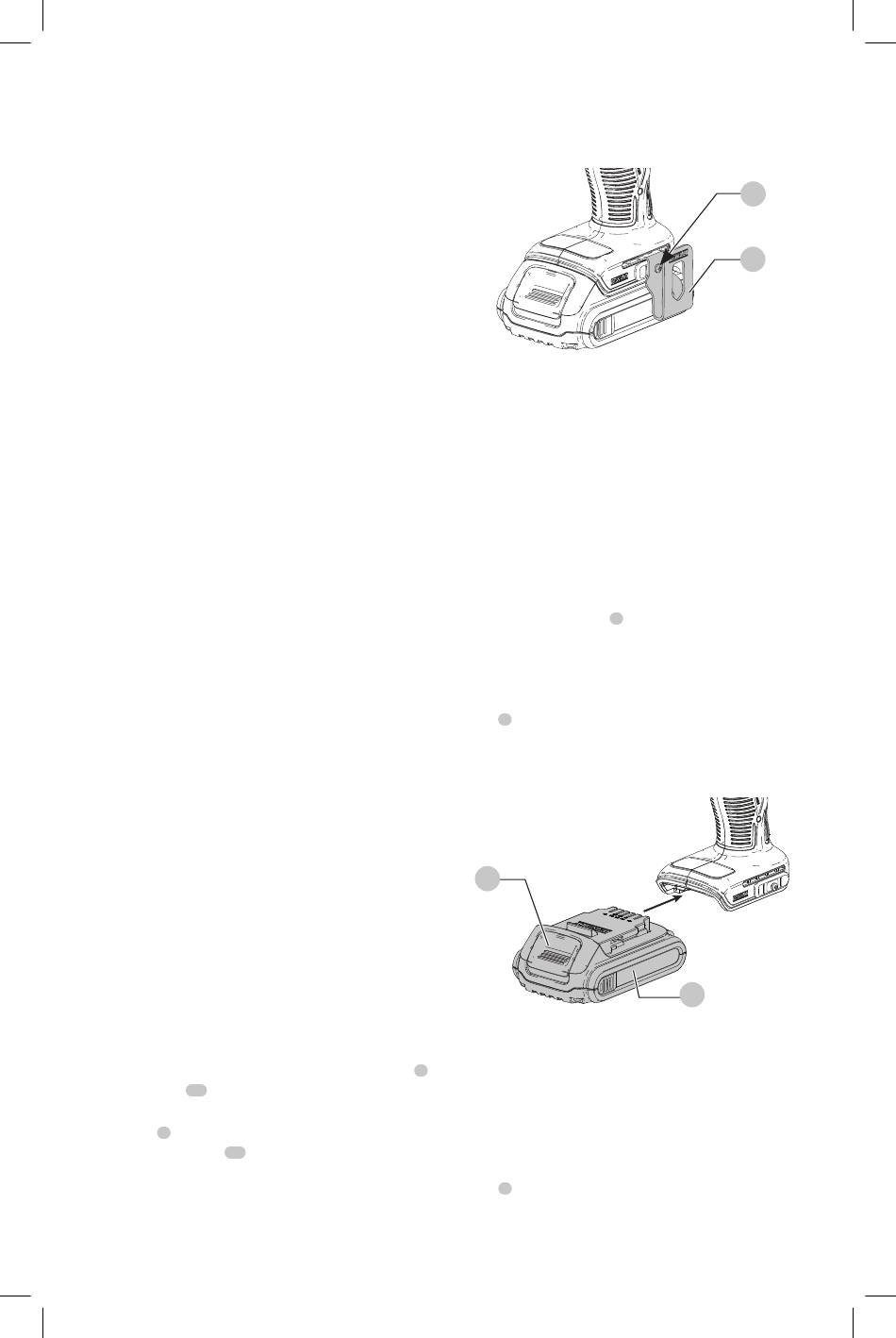

Belt Hook (Optional Accessory) (Fig. C)

WARNING: To reduce the risk of serious personal
injury, ONLY use the tool's belt hook to hang
the tool from a work belt. DO NOT use the belt
hook for tethering or securing the tool to a person or
object during use. DO NOT suspend tool overhead or
suspend objects from the belt hook.

WARNING: To reduce the risk of serious personal
injury, ensure the screw holding the belt hook
is secure.
iMPORTAnT: When attaching or replacing the belt hook
use only the screw that is provided. Be sure to securely
10
tighten the screw.
The belt hook 9 can be be attached to either side of the
tool using only the screw 10
left- or right- handed users. If the hook is not desired at all, it
can be removed from the tool.
8
9
provided, to accommodate
To move the belt hook, remove the screw that holds the
belt hook in place then reassemble on the opposite side. Be
sure to securely tighten the screw.
Fig. C
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can cause injury.
Installing and Removing the Battery Pack
(Fig. D)
nOTE: For best results, make sure your battery pack is
fully charged.
To install the battery pack
battery pack with the rails inside the tool's handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does not disengage.
To remove the battery pack from the tool, press the release
button and firmly pull the battery pack out of the tool
2
handle. Insert it into the charger as described in the charger
section of this manual.
Fig. D
2
Proper Hand Position (Fig. E)

WARNING: To reduce the risk of serious personal injury,
,
ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
sudden reaction.
Proper hand position requires one hand on the main
handle 8 and one hand on the battery pack. Hold tool
firmly with both hands to control the twisting action.
10
9
into the tool handle, align the
1
1
