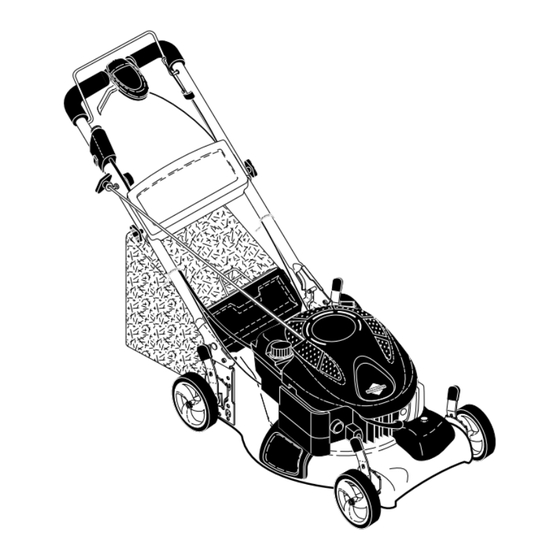

LM 2153CMDAE
Instruction manual
Please read these in struc tions care-
ful ly and make sure you un der stand
them before using this ma chine.
Bedienungsanleitung
Lesen Sie diese Anweisungen
sorgfältig durch und machen Sie
sich mit dem Inhalt vertraut, bevor
Sie diese Maschine benutzen.
Manuel d'instructions
Lisez très attentivement et
soyez certain de comprende
ces in struc tions avant d'utiliser
cette machine.
Manual de las instrucciones
Por favor lea cuidadosamente y
comprenda estas intrucciones
antes de usar esta maquina.
Instructieboekje
Lees deze instructies aandachtig
en zorg dat u ze begrijpt voordat
u deze machine gebruikt.
Manuale di istruzioni
Prima di utilizzare la macchina
leggete queste istruzioni con at-
tenzione ed accertatevi di averle
comprese bene.

Publicité

loading

Manuels Connexes pour Jonsered LM 2153CMDAE

Sommaire des Matières pour Jonsered LM 2153CMDAE

  • Page 1 LM 2153CMDAE Instruction manual Manuel d’instructions Instructieboekje Please read these in struc tions care- Lisez très attentivement et Lees deze instructies aandachtig ful ly and make sure you un der stand soyez certain de comprende en zorg dat u ze begrijpt voordat them before using this ma chine.
  • Page 2 CONTENTS PAGE INDICE SIVU SAFETY RULES .........3-10 REGLAS DE SEGURIDAD ....3-10 TECHNICAL DATA ........11 ESPECIFICACIONES TÉCNICAS ..11 OVERVIEW ..........12 SUMARIO ..........12 ASSEMBLY ........13-15 MONTAJE.........13-15 ADJUSTMENTS .......16-18 REGULACIÓN ........16-18 START AND STOP ......19-21 ARRANQUE Y PARADA ....19-21 USE ..........21-22 APLICACIÓN DEL CORTACÉSPED ..21-22 MAINTENANCE .......23-26 MANTENIMIENTO ......23-26 GENERAL INFORMATION ....27...
  • Page 3 • Stop the blade if the lawnmower has to be Safe Operation Prac tic es for Pe des tri- tilted for trans por ta tion when cross ing sur- an-Controlled Rotary Lawnmowers faces other than grass, and when transport- ing the lawnmower to and from the area to IMPORTANT: This cutting machine is ca pa ble be mowed.
  • Page 4 • Always let someone know you are outside - Alle Deckel wieder fest auf Kraftstofftanks mowing. und Kraftstoffbehältern anbringen. IV. Maintenance and Storage • Schadhafte Schalldämpfer ersetzen. • Keep all nuts, bolts and screws tight to be • Vor dem Gebrauch immer mit einer Sich- sure the equip ment is in safe work ing condi- tprüfung sicherstellen, daß...
  • Page 5 • Den Motor stoppen und das Kabel der Zünd- Mesures de sécurité d'utilisation kerze trennen: d'une tondeuse à hélice horizontale - vor dem Entfernen von Verstopfungen aus à conducteur marchant dem Mähwerk oder dem Auswurf; ATTENTION: Cette tondeuse est capable - vor dem Prüfen, Reinigen oder Reparieren d’amputer mains ou pieds et de projeter des des Rasenmähers;...
  • Page 6 III. Utilisation • Lorsque la tonte est terminée, réduisez • Ne jamais démarrer un moteur à l’intérieur les gaz avant de couper le moteur et, si le dans un espace confiné où des émanations tondeuse à gazon est équipé d’un robinet dangereuses de monoxyde de carbone pour- d’arrêt du carburant, fermez celui-ci.
  • Page 7 • Nunca permita que los niños o las per so nas • Parar la hoja en caso de que se tenga que sin los conocimientos adecuados operen la inclinar el cortacésped para transportarlo segadora. Leyes lo cales pueden restriñir la por una superficie que no sea de hierba, o edad del operador.
  • Page 8 • Los niveles de vibración que se indican - Als benzine is gemorst, probeer de motor en este manual no están ajustados a la dan niet te starten maar haal de machine exposición a vibraciones de los trabajadores. van de plaats vandaan waar u benzine Los empleados deben calcular unos valores heeft gemorst en zorg dat u geen ontstek- de exposición equivalentes a 8 horas (Aw) y...
  • Page 9 - nadat u een ongewenst voorwerp heeft Misure operative di sicurezza per geraakt. Inspecteer de maaimachine op rasaerba schade en voer reparaties uit voordat u de machine weer start en gebruikt; ATTENZIONE: Questo trattorino tosaerba ha - als de machine abnormaal begint te trillen (onmiddellijk controleren).
  • Page 10 • Usare i tosaerba soltanto con la luce del WAARSCHUWING: KINDEREN KUNNEN giorno oppure in presenza di buona luce VERWOND WORDEN DOOR DEZE APPA- artificiale. RATUUR. De American Academy of Pediat- rics adviseert dat kinderen minimaal 12 jaar • Se possibile, evitare di utilizzare l’apparecchio sull’erba bagnata.
  • Page 11 These symbols may appear on your machine or Estos símbolos pueden aparecer sobre su unidad in the literature supplied with the product. Learn o en la literatura proporcionada con el producto. and understand their meaning. Complies with Aprenda y comprenda sus significados. Cumple the provisions and current amendments of the las estipulaciones y enmiendas actuales de las Directives and Standards shown in the product...
  • Page 13 ASSEMBLING Handle Pull up the handle in direction of the arrow. With the handle in up-turned position, tighten the wing-nuts. MONTAGE Griff Griff in Pfeilrichtung hochklappen. Anschließend Flü- gelmuttern anziehen. MONTAGE Manche Déployez le manche dans la direction de la flèche. Une fois le manche déployé, serrez les écrous à...
  • Page 14 Install Starter Rope (T-knob) • Loosen T-knob. • Hold brake yoke down to upper handle and slowly pull out the starter rope until the rope will slip into loop of the rope guide. • Tighten T-knob. Starterseil Installieren (T-Knauf) • Lösen Sie den T-Knauf. •...
  • Page 15 To Assemble and Attach Grass Catcher • Put grass catcher frame into grass bag with stiff part of bag on the bottom. • Slip vinyl bindings over frame. • The grass catcher is secured to the lawn mower housing when the rear door is lowered onto the grass catch er frame.
  • Page 16 To Empty Grass Catcher • To remove grass catcher, release en gine brake yoke to stop engine. • Lift up rear door and remove the grass catcher by the handle. • Do not drag the bag when emptying, it will cause unnecessary wear.
  • Page 17 To Convert Mower FOR REAR BAGGING - • Grass catcher installed. FOR MULCHING - • Rear door (1) closed. FOR DISCHARGING - • Rear door (1) closed. • Discharge deflector (2) installed. Umrüsten des Mäweks VERWENDEN DES HECK-GRASFÄNGERS - • Grasfänger montiert. KOMPOSTIEREN DES SCHNITTGUTES - •...
  • Page 18 Adjustment The mower can be set to different cutting levels. Adjust to desired cutting level by means of the lever at each wheel. Move the lever towards the wheel and set the cutting level. All wheels must be in the same height positions, otherwise uneven cutting will result.
  • Page 19 Starting the Engine for the First Time The battery must be charged for 24 hours before use. You will prolong the life of both battery and starter if you ensure that the starter is not engaged for more than 5 seconds at a time followed by a pause of 10 seconds before you make a fresh attempt to start the machine.
  • Page 20 Starting and Stopping Place the mower on a flat surface. Note: not on gravel or similar. Fill the tank with petrol, not oil-blended. Do not fill with petrol while the engine is running. • Keep the engine brake yoke in position “IN”. Push the start button.
  • Page 21 Drive Forward drive is engaged (1) and disengaged (2) with the gear shift lever (3) at the top of the handle. The farther toward the handle the lever is pulled, the faster the unit will travel. NOTE: If after releasing the drive control the mower will not roll backwards, push the mower forward slightly to disengage drive wheels.
  • Page 22 Before mowing, objects such as twigs, toys and stones should be removed from the lawn. Bevor mit dem Mähen begonnen wird, sollten Zweige, Spielzeuge, Steine usw. von der Rasenfläche entfernt werden. Avant de commencer à tondre, il faut débarrasser la pelouse des branch es, des jouets, des pierres etc...
  • Page 23 Maintenance Always remove the spark plug lead before repair, cleaning or main te nance work. After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest point on the mower when it is tilted up.
  • Page 24 Annually (After end of season) Grinding and balancing the cutter blade. Remove the spark plug lead. Fitting and removing the blade require the use of protective gloves. Unscrew the cutter blade and deliver it to a service workshop for grinding and balancing.
  • Page 25 N.B.: Alvorens de grasmaaier van olie te voorzien, leeg dan eerst de benzinetank door de motor te laten draaien tot de tank leeg is. Ververs de olie elk seizoen, of na 25 u rijden. Laat de motor warmlopen, schakel de motor uit en demonteer de ontstekingskabel.
  • Page 26 Over time, ground speed may decrease. Adjust as follows: • Rotate nut (1) on the underside of the housing to tighten cable. Ground speed should increase. If ground speed remains the same, drive belt is worn and should be replaced. Mit der Zeit kann die Geschwindigkeit abnehmen.
  • Page 27 GENERAL INFORMATION Transport Remove spark plug lead. Empty the petrol tank. Before public trans port ing, engine oil and petrol must be removed. NOTE: Before tipping mower to drain oil, drain fuel tank by running engine until fuel tank is empty. ALGEMEINE ERLÄUTERUNGEN Transport Zienhen Sie das Zündkerzenkabel ab.
  • Page 28 07.14.15 BY 115 62 43-20 Rev. 8 Printed in U.S.A.
