4" [102]
4" [102]
6X ø1 3/8" [ø35]
2X ø1 3/4" [ø44]
34 1/2" [876]
1-866-439-9800, de lunes a domingo de 8 a.m. a 8 p.m., hora estándar del Este, de lunes a domingo.
OVE 2022-09-07
60" [1524]
4" [102]
4" [102]
Questions, problems, need help?
Call our customer service department at
1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You could also contact us at partsplus@lowes.com or visit www.lowespartsplus.com.
English and French speaking representatives available
Questions, problèmes ou besoin d'aide?
Communiquez avec notre service à la clientèle au
1-866-439-9800, entre 8 h et 20 h (HNE), du lundi au dimanche. Des représentants
Vous pouvez aussi nous contacter à partsplus@lowes.com ou sur www.lowespartsplus.com.
anglophones et francophones sont disponibles.
Preguntas, problemas o necesita ayuda?
Llame a nuestro Departamento de Servicio al Cliente al
También puede contactarnos en partsplus@lowes.com o para www.lowespartsplus.com.
Representantes que hablan inglés y francés disponibles.
ITEM #/ARTICLE #/ARTÍCULO #: 2694594 / 2694589 / 3700394
MODEL#/MODÈLE#/MODELO #: BRINKHAVEN 60AG / W / GB
BRINKHAVEN 60AG / W / GB

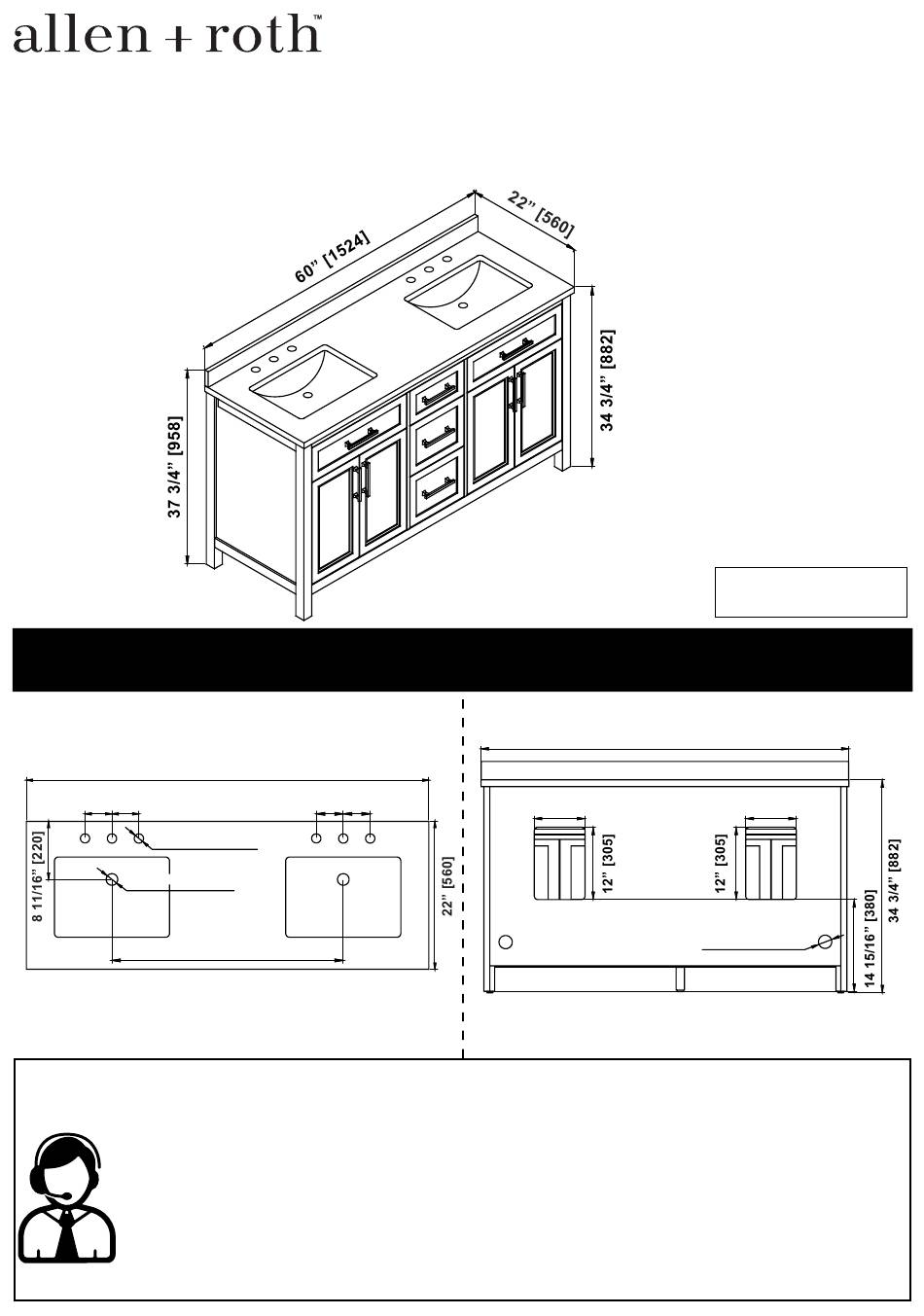

DIMENSIONS
DIMENSIONS
DIMENSIONES
10" [254]
INSTALLATION MANUAL
GUIDE D'INSTALLATION
MANUAL DE INSTALACIÓN
Measures: inch [millimeter]
Mesures: pouces [millimètres]
Medidas: pulgada [milímetro]
60" [1524]
10" [254]
ø2 15/16" [ø75]
PAGE 1
Publicité
Manuels Connexes pour Allen + Roth BRINKHAVEN 60AG
Sommaire des Matières pour Allen + Roth BRINKHAVEN 60AG
- Page 1 MODEL#/MODÈLE#/MODELO #: BRINKHAVEN 60AG / W / GB BRINKHAVEN 60AG / W / GB ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All Rights Reserved ALLEN + ROTH et son logo sont des marques commerciales ou des marques déposées de LF, LLC.
- Page 2 PART LIST LISTE DES PIÈCES LISTA DE PIEZAS PART # QUANTITY DE PIÈCE DESCRIPTION DESCRIPTION DESCRIPCIÓN QUANTITÉ PIEZA # CANTIDAD Countertop Comptoir Cubierta prefabricada Backsplash Dosseret Protector contra salpicaduras Basin Lavabo Recipiente Tilt-down drawer (left) Tiroir rabattable (gauche) Cajón abatible (izquierda) Door (left) Porte (gauche) Puerta (izquierda)
- Page 3 GFCI ACCESIBILITY GUIDELINE LIGNE DIRECTRICE D’ACCESSIBILITÉ GFCI DIRECTRIZ DE ACCESIBILIDAD GFCI GFCI (plug with reset button) GFCI (prise avec bouton reset) GFCI (enchufe con botón de reinicio) Drawings are for reference only. Les dessins sont pour référence seulement. Los dibujos son solo para referencia. 1.1.
- Page 4 GFCI FIRST TIME USAGE GUIDELINES DIRECTIVES POUR LA PREMIÈRE UTILISATION DUDDFT DIRECTRICES DE USO DE LA GFCI POR PRIMERA VEZ A. This GFCI is shipped from the factory in the tripped condition and cannot be reset until power is supplied to the device. Plug the GFCI to your receptacle. Ensure that the GFCI is still in the tripped condition by pressing the TEST button.
- Page 5 INSTALLATION INSTALLATION INSTALACIÓN PAGE 5...
- Page 6 INSTALLATION INSTALLATION INSTALACIÓN 24H! PAGE 6...
- Page 7 DRAWER TIROIR GAVETA Pull-out tray Tablette coulissante Estante deslizante Pull-out tray Tablette coulissante Estante deslizante REMOVE RETIRER RETIRAR INSTALL INSTALLER INSTALAR PAGE 7...
- Page 8 DRAWER TIROIR GAVETA REMOVE INSTALL RETIRER INSTALLER RETIRAR INSTALAR PAGE 8...
- Page 9 MAINTENANCE AND CARE ENTRETIEN ET MAINTENANCE MANTENIMIENTO Y CUIDADO Stone countertops (Granite, Marble, etc.) are surprisingly resilient to stains and scratches. However, as a preventative measure, any spills on the stone surfaces should be wiped up within a reasonable amount of time. Don’t let liquid sit on the stone overnight. Stones are most prone to staining by oil and acid, so be sure to blot these spills up as soon as they happen.
- Page 10 FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 11 WARRANTY NOT VALID IN MEXICO LIMITED 1 YEAR WARRANTY This warranty applies to the DISTRIBUTOR vanities installed for commercial and residential use. The DISTRIBUTOR warrants that, when installed in accordance with the Recognized Plumbing Industry Practice, the vanities are free of manufacturing defects for a period of one (1) year from the date of purchase. We guarantee your satisfaction with each vanity.
