Lifetime ACTION GRIP 90176 Instructions D'assemblage

ACTION GRIP

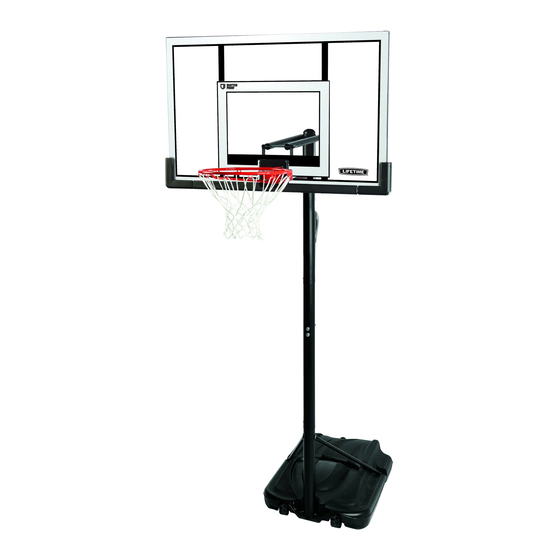

PORTABLE BASKETBALL SYSTEM
MODEL 90176
BEFORE ASSEMBLY:
• Decide with what to fi ll the the base
(sand is recommended)
• At least 2 people recommended for setup
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (≈13 mm), 7/16" (≈11 mm),
9/16" (≈14 mm), 3/4" (≈19 mm)
(x2)
(x1)
(x1)
QUESTIONS? CONTACT LIFETIME
Dial 1-800-225-3865
®
1/2" (≈13 mm)
(x1)
(x1)
(x1)
®
CUSTOMER SERVICE:
Live Chat:
www.lifetime.com/customerservice/home
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
3/16" (≈5 mm)
(included)
(x2) (x1)
375 lb (≈170 kg)
(x1)
(x1)
(x1)
For Customer Service in Mainland Europe
and the United Kingdom,
E-mail: csinternational@lifetime.com
TABLE OF CONTENTS
Icon Legend...................................................4
Warnings & Notices......................................5
Pole Assembly...............................................6
Pole-to-Base Assembly..............................11
Backboard-to-Rim Assembly.....................15
Backboard-to-Pole Assembly.....................19
Parts Identifi er..........................................i–iv
Handle Assembly........................................24
Final Assembly............................................31
Moving the System.....................................35
Maintenance Instructions..........................36
Warning Sticker...........................................37
Registration..............................................38
Warranty....................................................41
MODEL# AND PRODUCT ID
(both are needed when contacting us)
Model Number: 90176
Product ID:
