Lifetime ACTION GRIP 90020 Instructions D'assemblage

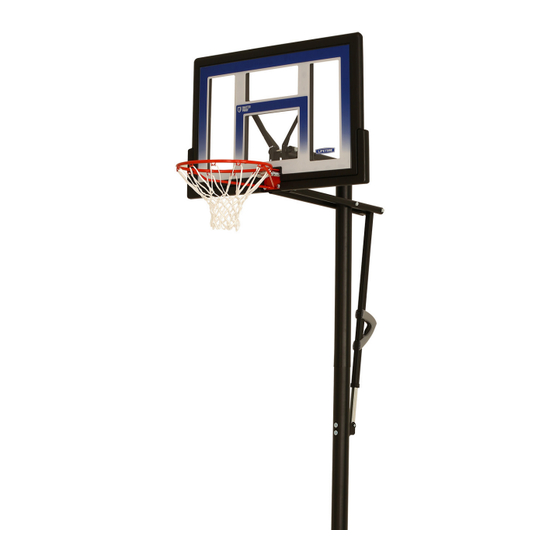

ACTION GRIP
BASKETBALL SYSTEM
MODEL 90020
BEFORE ASSEMBLY:
• Requires at least 420 lb (≈191 kg) of concrete mix to fi ll
a volume of 3.07 ft (≈0.087 m
3
• Requires, at least, 3 days for concrete to cure, plus
3–4 hours to complete assembly steps. If you have
quick-setting concrete, check the bag for required
cure time.
• At least 3 people recommended for setup.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED
1/2"
(≈13 mm)
(x2)
7/16"
(≈11 mm)
(x2)
Concrete Mix
60 lb Bag (x7)
(x1)
(420 lb (≈191 kg))
QUESTIONS?
CONTACT LIFETIME
Dial 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
(English, French, Spanish)
®
).
3
9/16"
3/8"
(≈14 mm)
(≈10 mm)
(x2)
(x1)
(x1)
(x1)
Bricks (x4–6)
CUSTOMER SERVICE:
®
Live Chat:
www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
3/4"
(≈19 mm)
(x2)
(x1)
(x1)
(x1)
(x1)
(x1)
(x1)
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: csinternational@lifetime.com
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices....................5
Initial Setup...............................6
Pole Assembly..........................12
Backboard-to-Rim Assembly......17
Backboard-to-Pole Assembly......22
Parts Identifi er.........................i–iv
Handle Assembly......................25
Final Assembly..........................32
Maintenance...........................38
Registration........................39
Warning Sticker........................40
Warranty................................41
Model Number: 90020
Product ID:
