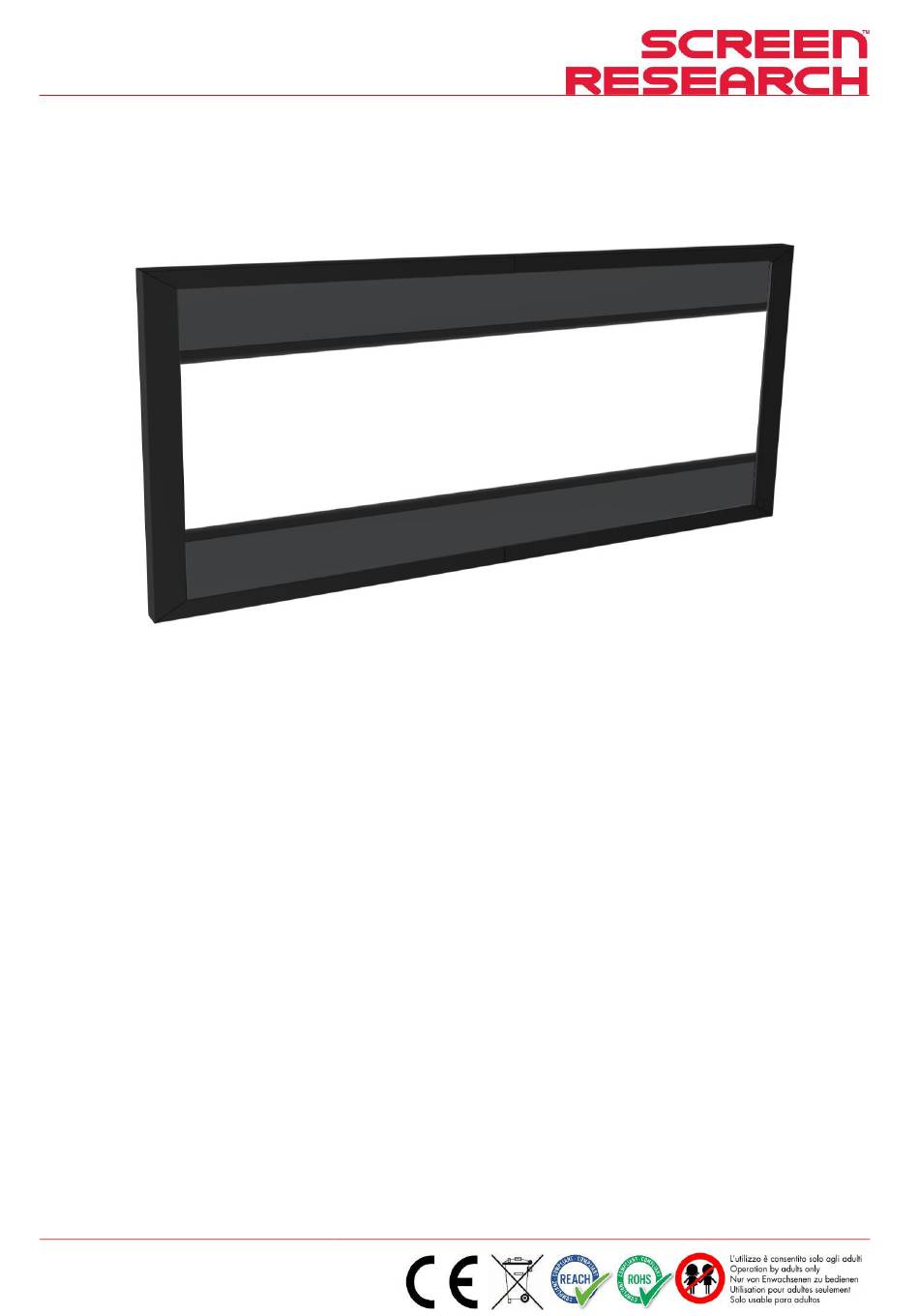

XTR3 Installation Manual
Model Fixed Frame Screen with Masking
Reference X-Mask 2-Way Top-Bottom – XTR3
Code PFMAXTR3-XXXXX
ERA MAT
Manuale d'installazione e d'uso schermo a cornice rigida con mascheramento
Fixed frame screen with masking installation and operation manual
Manuel d'installation et d'utilisation de l'écran à cadre rigide avec masquage
Bedienungs- und Installationsanleitung: Leinwand mit festem Rahmen und Maskierung
Manual de instalación y de uso: pantalla con marco rígido y máscara
Instrukcja montażu i obsługi ekranu ramowego z maskami
Made by Adeo Screen Sp. Z o.o. (Poland)
Doc: XTR3 Installation Manual rev3 | 27.10.2020
