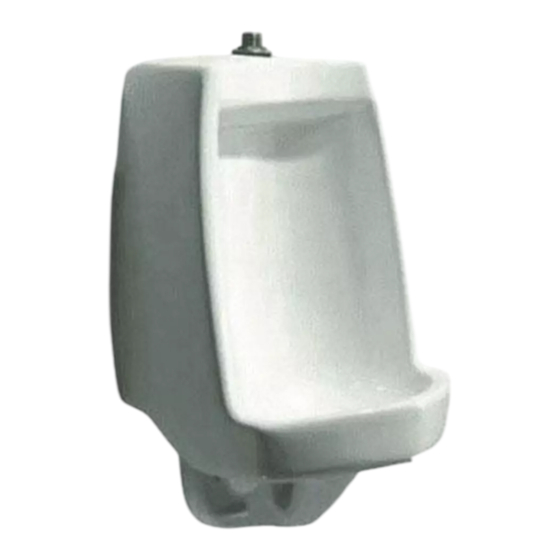

PROFLO PF1835WH Instructions D'installation

Installation Instructions
Instructions d'installation
Instrucciones de Instalación
Wall Hung Urinal / Urinoir mural /
Mingitorio Suspendido en Pared
PF1835WH
Follow flush valve manufacturers installation instructions. This fixtures requires 25 psi minimum water pressure. Refer to all local plumbing and building codes before installation.
Veuillez suivre les instruction d'installation du fabricant du robinet de la chasse d'eau. Cet équipement exige une pression d'eau minimum de 25 psi. Veuillez vous référer à tous les
codes locaux de plomberie.
Siga las instrucciones de instalación del fabricante de la válvula de descarga. Estas conexiones requieren una presión mínima de agua de 172kPa [25 PSI]. Refiérase a todos los códigos
de plomería
1. Turn water supply off.
2. Install or relocate the supply line wand
waste pipe to conform to rough in
dimensions
3. Install shut off valve, (not included) per
11-13/16"
manufacturers instructions
(300 mm)
4. Insure there is appropriate construction
framing to support urinal (figure 1).
5. Install the wall hangers according to the
rough in dimensions by marking each hole
then drilling a pilot hole. Attach with
appropriate lag screws.
6. Apply thread sealant tape to the pipe
11/16"
0 mm)
threads and install the female collar to the
17-11/16"
waste pipe. (450 mm)
17-5/8"
7. Place the gasket onto the female collar
(448 mm)
with the beveled surface facing away from
the collar.
3/16"
11/16 * 7/16"
8. Gently place the urinal on the hanger(s) as
3 mm)
(18 * 11 mm)
8"
7-3/16"
supplied and installed.
m)
(183 mm)
4"
9. Secure the urinal to the female collar with
(102 mm)
the screws and washers provided.
1-5/16"
(33 mm)
10. Install the flush valve per the manufactures
instructions
11. Connect the water supply and waste pipe
connections
4"
(100 mm)
5/8"
(16 mm)
17-11/16"
(450 mm)
17-11/16"
(450 mm)
3-3/8"
3-3/8"
7-3/16"
(85 mm)
(85 mm)
(183 mm)
3-3/8"
7-3/16"
(85 mm)
(183 mm)
1-5/16"
1-5/16"
(33 mm)
(33 mm)
1-5/16"
(33 mm)
© 2011 Ferguson Enterprises, Inc. All Rights Reserved
Figure 1
