1. INSTALLATION RECOMMENDATIONS
Installation of the filter assembly below the water level of the pool is highly recommended. In the event that
the filter is installed above the pool water level, a check valve, accessible through a service hatch, must
be installed on the suction line.
Allow a surface area of 1200 mm x 1200 mm for the installation.
Position the control panel as close as possible to the multiport valve to facilitate manipulations.
To prevent vibrations, and any resonance effect, insert a sheet of soft rubber between the base of the
pump and the ground.

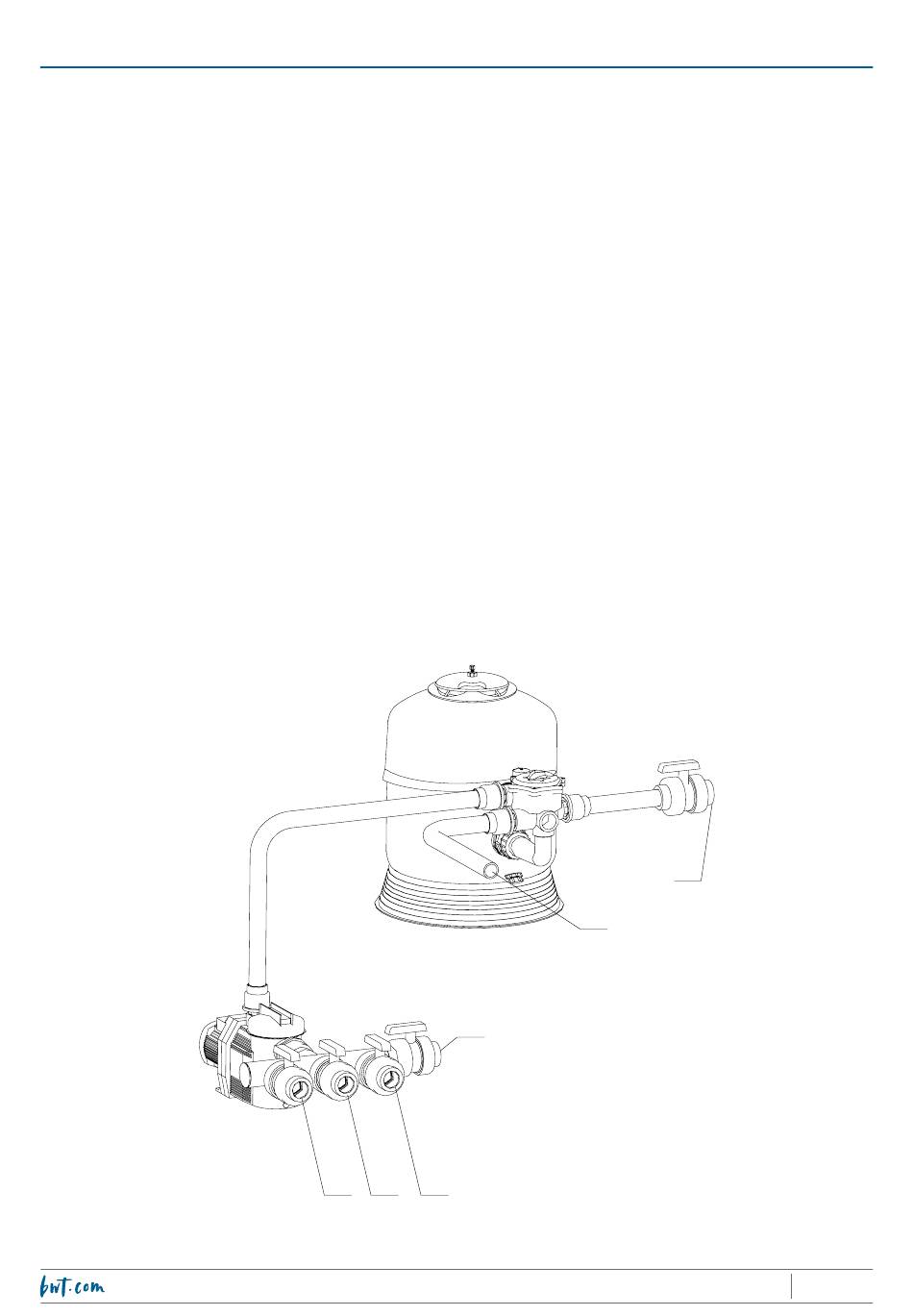

STANDARD INSTALLATION
A-B : Skimmers
C : Main drain
D : Vacuum point
E : Return fitting
F : Waste line
