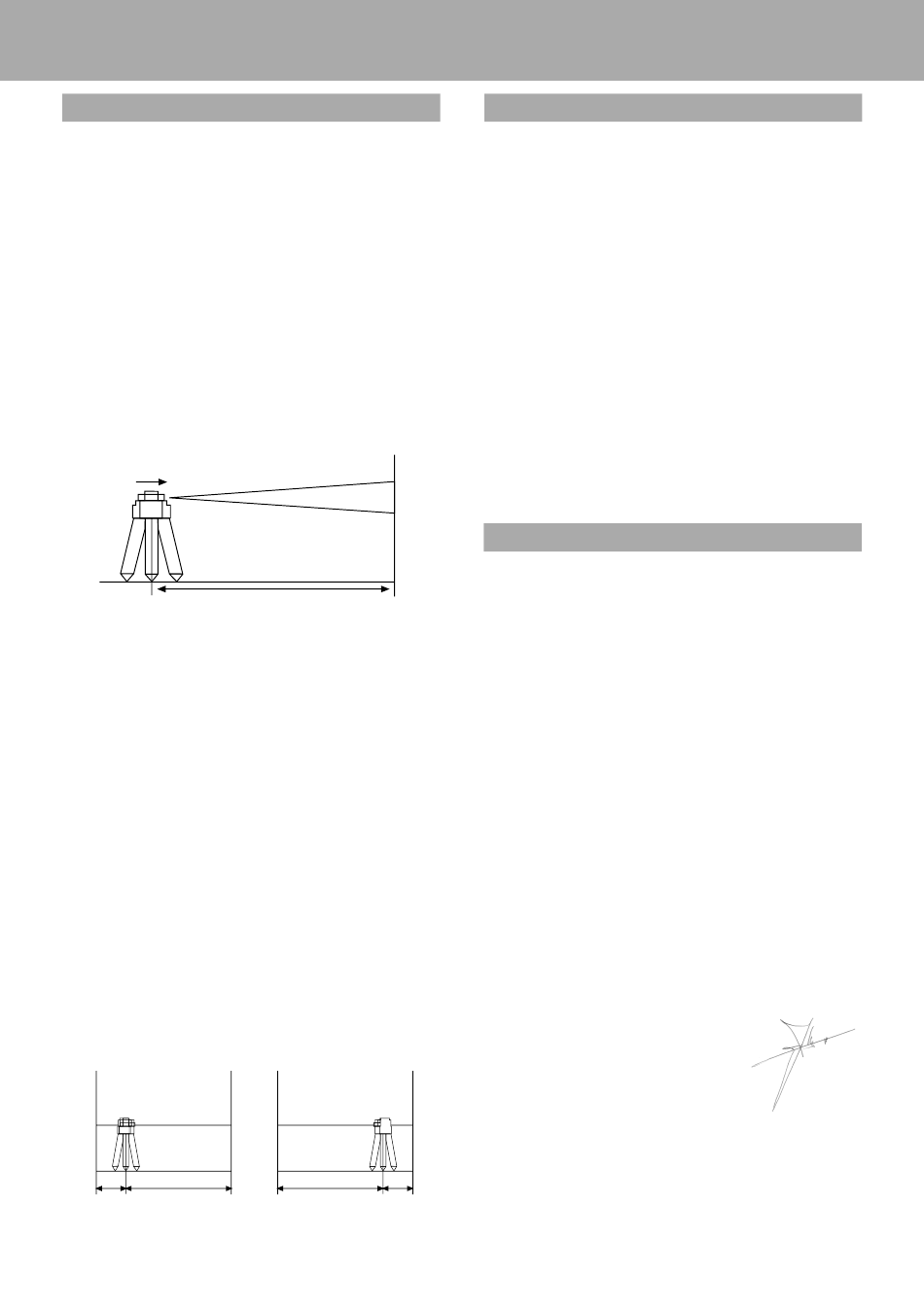

CALIBRATION TEST
Horizontal Plane:
• Install your RUBILASER RD2 some 50 m.
from a wall and activate it in order to project
the horizontal plane on said wall.
• Use the laser detector to find out where the
plane projects on the wall at point h1.
• Without moving the tripod, turn the instru-
��
ment 180º in order to find out the point h2
where the plane projects on the same wall,
using the detector.
• The distance between h1 and h2 should be
������������� �������
less than 10 mm.
��
Laser pointers:
• Look for two walls that are separated by
thirty and a half meters.
• Place your RUBILASER RD2 on its side
some 30 m. from wall B (0.5 m. from wall A).
• Activate it and mark the half-way point of
the projected laser pointer (hA, hB) on
each wall.
• Move your RUBILASER RD2 to 0.5 m. from
wall B (30 m. from wall A).
• Do the same as before marking hA' and
hB'.
• The distance between the two points
marked on wall A (hA-hA') and the two
points marked on wall B (hB-hB') should be
less than 6 mm.
��
�� ���
������������� �������
��
��
��
All manuals and user guides at all-guides.com
ENGLISH
�� ���
����������������������������������
��
��
��
��
�����
���
����������������������������������
��
��
PRECAUTIONS
• Only use the product for those jobs for
which it was intended. Keep out of the
reach of children.
• Do not look directly into the laser ray.
• Do not take the instrument apart or make
any type of modification.
• Any repair and/or calibration must only be
���
carried out by the manufacturer.
• Do not store the product in very warm or
very cold places. Likewise, always store it in
areas that are free of dust and humidity.
• Do not bump your unit or throw it on the
ground.
CERTIFICATION CE
The company, Germans Boada S.A.,
hereby certifies that the product RUBILA-
SER RD2 complies with the following regu-
lations:
• European Directives 89/336/CEE, and
92/31/CEE
• Rohs Directive 2002/95/CEE
• EN55022:1998+A1:2000+A2:2003
• EN61000-3-2/-3; EN60825-1/1994
• E N 5 5 0 2 4 : 1 9 9 8 + A 1 : 2 0 0 0 + A 2 : 2 0 0 3 ,
(EN61000-4-2/-3/-4/-5/-6/-11)
• EN61010-1:2001+CORRIG.1+2
• EN60825-1:1994+A1+A2+CORRIG.
This declaration will no longer be valid if
the product is not used in accordance with
the aforementioned or if any alterations are
made to it.
9
Josep Llagostera
Product Engineering Director
