• When you are working in manual mode,
you can adjust the inclination of the X or
Y axis with the buttons designated for this
purpose.
BATTERY CHARGING
When the battery charging LED indicator
turns on, your batteries should be immedi-
ately charged. To do so, a charger is pro-
vided in the kit which should be connected
to the mains by means of the socket and to

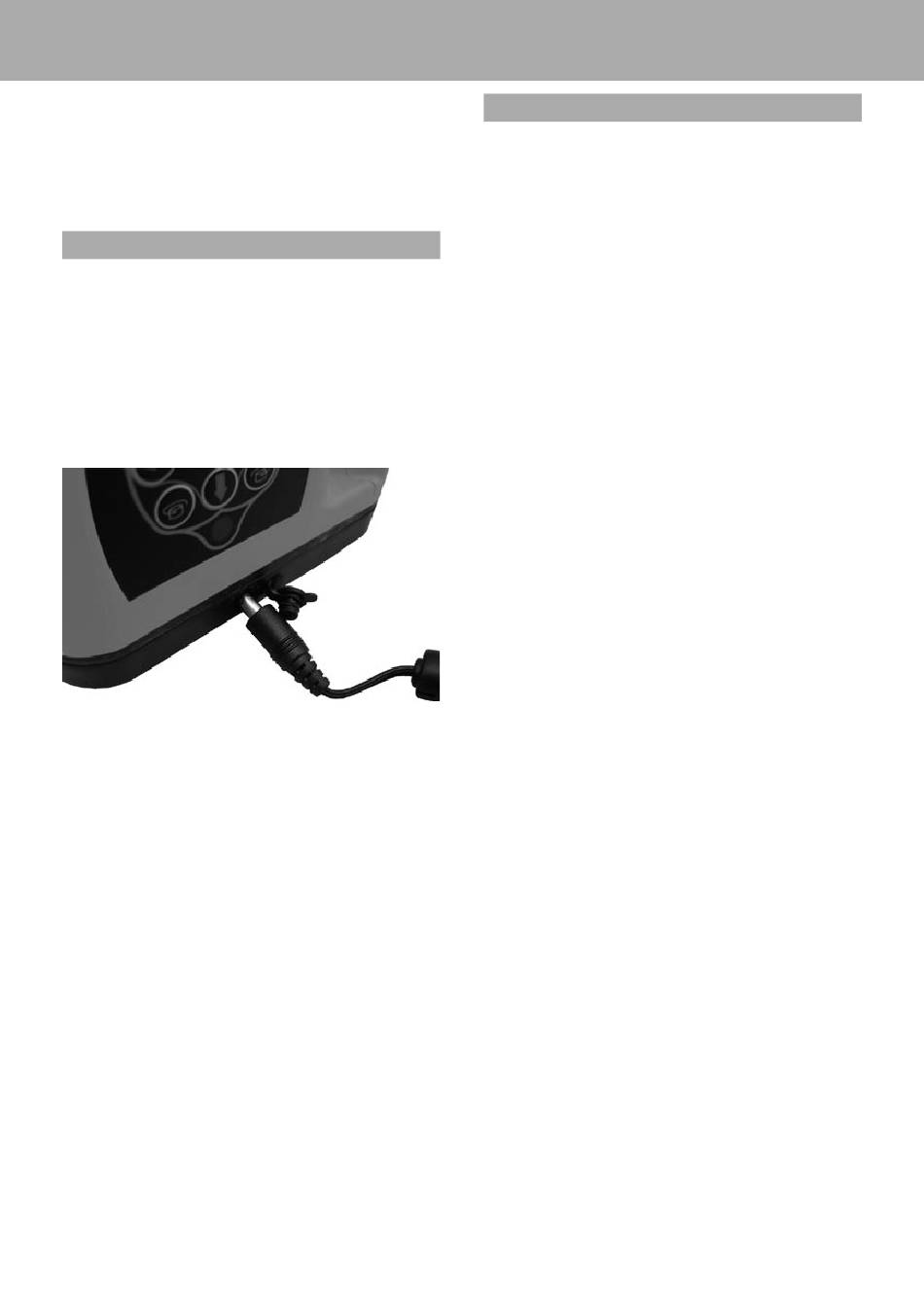

the laser unit with the plug. (Please see figure
below).
When the LED on the charger is on, it means
that the batteries are charging. On the other
hand, when the LED blinks, it means that the
batteries have been charged.
• The batteries take approximately 7 hours
to charge.
• The charger must work on a frequency of
50-60 HZ. and a voltage of 85-265 V.
• You can use your RUBILASER RD2 while
you charge the batteries.
• If you store your RUBILASER RD2 for a
long period of time, be sure to remove the
batteries from the unit.
• New batteries or ones that have not been
used for a long time need to uncharge and
recharge three times in order to obtain
maximum capacity.
All manuals and user guides at all-guides.com ENGLISH
TECHNICAL SPECIFICATIONS
Accuracy: ±1 mm. /10 m.
±1 mm. /1.5 m.
(lower pointer)
Scope: Used with a detector,
some 500 m.
Laser diodes: Class 2 (<1mW), 635 nm.
Self-leveling range: ±5º
Rotation speeds:
0, 60, 120, 300, 600 r.p.m.
Directional exploration angles:
0º, 10º, 45º, 90º, 180º
Inclination range of the axes:
±5º (bidirectional)
Scope of remote control:
approximately 20 m.
Weight:
Unit: 1570 Gr.
Complete kit: 4250 Gr.
Power source:
4 Ni-MH rechargeable batteries
Dimensions:
Unit: 135x135x170 mm.
Complete kit: 400x320x220 mm.
Water resistance: IP 64
Temperature when working:
-20ºC to +50ºC (-4ºF to +122ºF)
Duration of the battery:
Approximately 20 h. in continuous use
