Assemble the parts

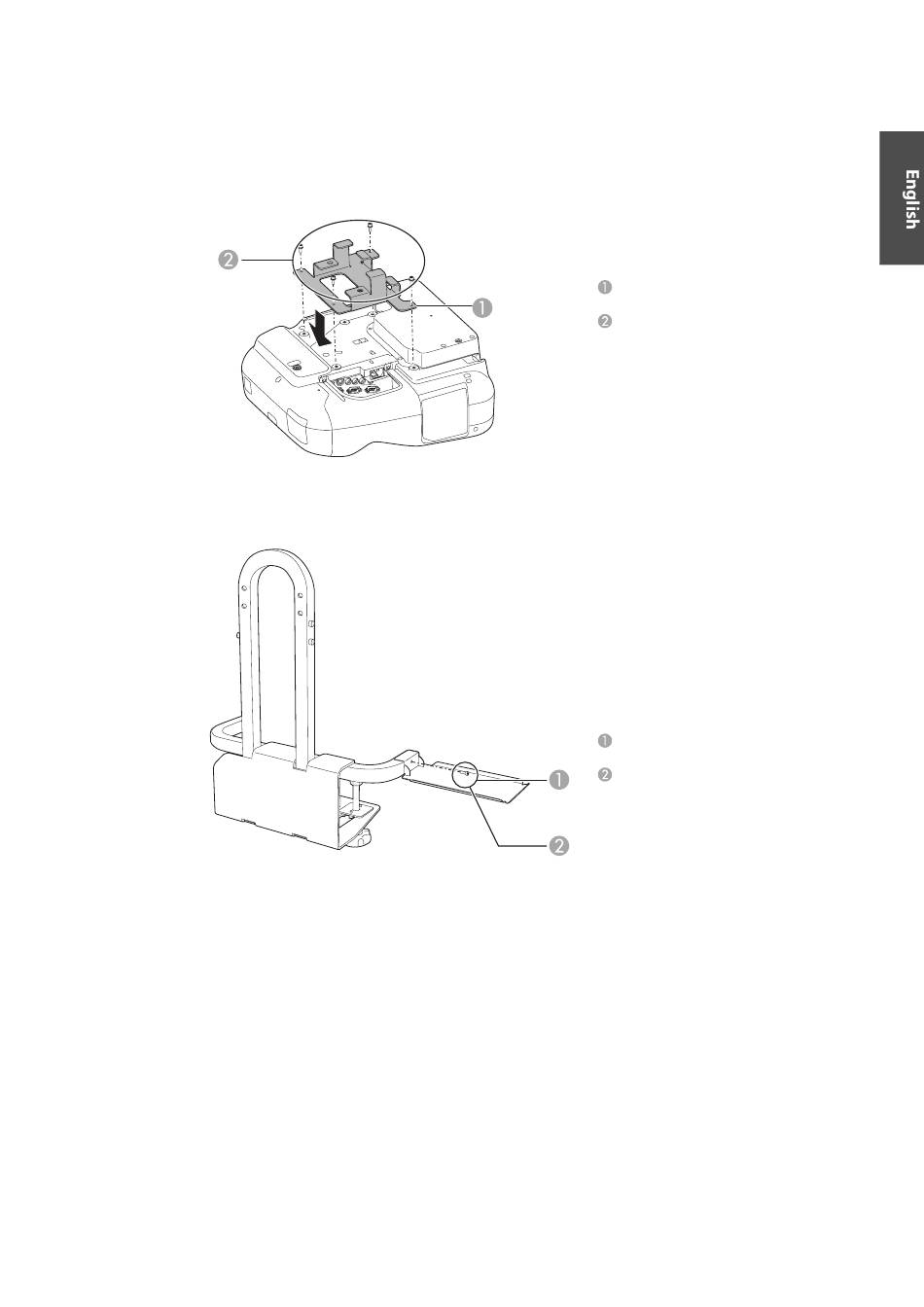

(1) Mount the attachment plate on the projector using M4 ×12 mm hexagon socket head cap
bolts (4 bolts with washer and spring washer).
(2) Mount the tray on the base frame unit using an M4 × 8 mm hexagon socket head cap bolt.
You can mount the tray on either the left or right side of the base frame unit.
You can place the pen tray supplied with the projector on the accessory tray.
Attachment plate
M4 × 12 mm hexagon socket head
cap bolts (with washer and spring
washer)
Accessory tray
M4 × 8 mm hexagon socket head
cap bolt
