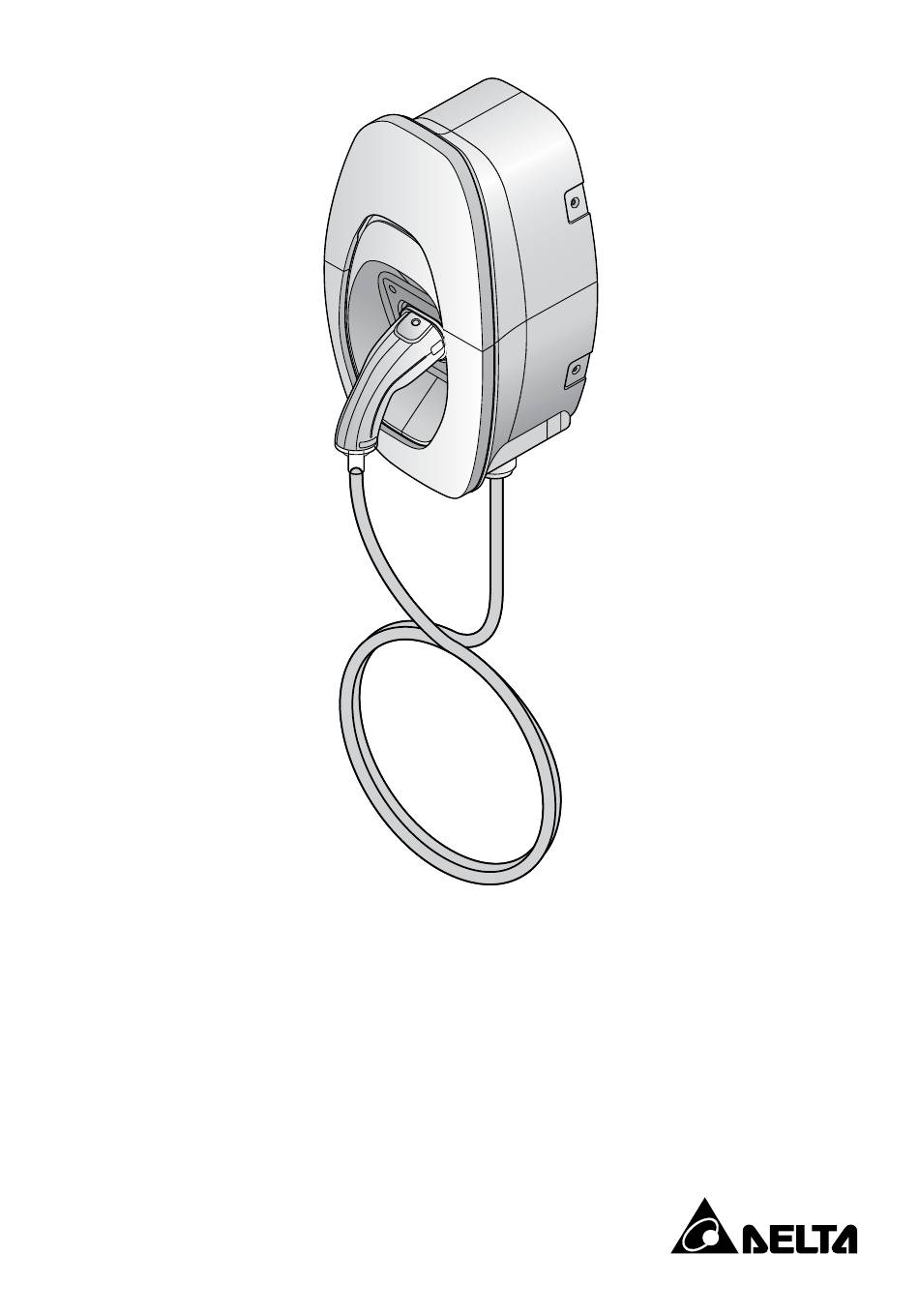

- Page 1 All manuals and user guides at all-guides.com AC MAX Smart Quick Installation Guide...
- Page 2 All manuals and user guides at all-guides.com...
- Page 3 : Ove kratke upute za instalaciju odnose se na sljedeće modele punjača: Jelen Gyors telepítési útmutató az alábbi töltőtípusokra vonatkozik: AC MAX SMART La presente Guida all‘installazione rapida si applica ai seguenti modelli di caricabatteria: Šis Greito įrengimo vadovas skirtas tokiems įkroviklių modeliams: Šī...
- Page 4 All manuals and user guides at all-guides.com Support: Поддръжка: Podpora: Support: Kundendienst: Support: Support: Tugiteenus: Tuki: Support: Podrška: evcs.service@deltaww.com Támogatás: Delta Electronics (Netherlands) B.V Zandsteen 15 Supporto: 2132 MZ Hoofddorp Netherlands Palaikymo tarnyba: Atbalsts: Support: Support: Wsparcie: Assistência: Suport: Support: Podpora:...
- Page 5 Selle toote volitatud esindaja Euroopa Liidus – Tämän tuotteen valtuutettu edustaja EU:ssa: Ovlašteni zastupnik za ovaj proizvod u EU: Ovlašteni zastupnik za ovaj proizvod u EU: Delta Electronics (Netherlands) B.V Az Európai Unióban a termék meghatalmazott képviselője: Zandsteen 15 2132 MZ Hoofddorp Rappresentante autorizzato per questo prodotto nell‘UE:...
- Page 6 Prüfen Sie vor Beginn der Installationsarbei- Prije početka instalacije uvijek na web-mjestu ten immer unter emobility.delta-emea.com, ob emobility.delta-emea.com provjerite postoji eine neuere Version der Installationskurzanlei- li novija verzija kratkih uputa za instalaciju ili tung bzw.
- Page 7 Manualului mai cuprinzător de vadovo versija. instalare și utilizare. Pirms uzstādīšanas darbu sākšanas vienmēr Pred začiatkom inštalačných prác vždy skon- pārskatiet vietni emobility.delta-emea.com, trolujte, či na adrese emobility.delta-emea. lai uzzinātu, vai nav pieejama jaunāka Ātrās nie je k dispozícii novšia verzia Stručnej uzstādīšanas rokasgrāmatas vai vispārējās...
- Page 8 All manuals and user guides at all-guides.com No. 8 1/4“ Torx T30 AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 9 All manuals and user guides at all-guides.com Never use damaged components. Не използвайте повредени компоненти! Nepoužívejte poškozené komponenty! Beskadigede komponenter må ikke anvendes. Keine beschädigten Komponenten verwenden! Μην χρησιμοποιείτε εξαρτήματα που έχουν υποστεί ζημιά. No utilice componentes dañados. Ärge kasutage kahjustatud kompo- nente! Vaurioituneita komponentteja ei saa käyttää!
- Page 10 All manuals and user guides at all-guides.com Torx T20 + T30 AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 11 All manuals and user guides at all-guides.com 200 mm 500 mm 500 mm 500 mm 500 mm AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 12 All manuals and user guides at all-guides.com AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 13 All manuals and user guides at all-guides.com 8,8 Nm 3 Nm AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 14 All manuals and user guides at all-guides.com Torx T30 / 1,5 Nm Torx T20 Torx T20 AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 15 All manuals and user guides at all-guides.com Authorization (DIP 2) OFF ON OFF ON 1 OFF ON 1 1 OFF ON 1 Key (default) 2 OFF ON 2 2 OFF ON 2 3 OFF ON 3 3 OFF ON 3 Bluetooth 4 OFF ON 4...
- Page 16 All manuals and user guides at all-guides.com (DIP 4, 5, 6) = 11 kW ⇒ I = 22 kW ⇒ I = 16 A = 32 A OFF ON OFF ON 1 OFF ON 1 1 OFF ON 1 2 OFF ON 2 2 OFF ON 2...
- Page 17 All manuals and user guides at all-guides.com Always ground the charger via the PE connection! Винаги заземявайте зарядното устройство чрез PE връзката! Nabíječku je nutné vždy uzemnit přes připojení k ochrannému zemnění! Opladeren skal altid jordes via PE- forbindelsen! AC MAX Das Ladegerät immer über den PE- L1 L2 L3 N PE Anschluss erden!
- Page 18 All manuals and user guides at all-guides.com Always ground the charger via the PE connection! Винаги заземявайте зарядното устройство чрез PE връзката! Nabíječku je nutné vždy uzemnit přes připojení k ochrannému zemnění! Opladeren skal altid jordes via PE- forbindelsen! AC MAX Das Ladegerät immer über den PE- L1 L2 L3 N PE Anschluss erden!
- Page 19 All manuals and user guides at all-guides.com 18 mm 12,8 ... 19,7 mm 10 mm max. Wrong Wrong AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 20 All manuals and user guides at all-guides.com Torx T20 / 1,2 Nm Torx T20 / 0,5 Nm AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 21 All manuals and user guides at all-guides.com 0,8 s 0,8 s yellow, flashing blue giallo, lampeggiante жълто, мигащо син geltona, mirksi mėlyna žlutá, blikající modrý dzeltens, mirgo zils gul, blinkende blå geel, knipperend blauw gelb blinkend blau gul, blinkende blå...
- Page 22 All manuals and user guides at all-guides.com Version Smart Charging mode Mode 3 IEC 62196-2: Type 1 plug, Type 2 plug, Type 2 Charging interface socket, or Type 2 socket with shutter 220-240 V , 1~, 16 A or 32 A max., 50-60 Hz Input/output rating 380-415 V , 3~, 16 A or 32 A max., 50-60 Hz...
- Page 23 All manuals and user guides at all-guides.com AC_MAX_SMART_QIG_EU_V1.0.0_2021-03...
- Page 24 TEL : +886 3 452 6107 TEL : +31 0 20 800 3900 evcharging.deltaww.com | evcs@deltaww.com More information Copyright © 2021 Delta Electronics, Inc. All rights reserved. All information and specifications are subject to change without notice. Quick Installation Guide EU V1.0.0 2021-03...
