INSTALLATION RECOMMENDATIONS
•
Installation of the filter assembly below the water level of the pool is highly recommended. In the event
that the filter is installed above the pool water level, a check valve, accessible through a service hatch,
must be installed on the suction line.
•
Allow a surface area of 1200 mm x 1200 mm for the installation.
•
Position the control panel as close as possible to the multiport valve to facilitate manipulations.
•
To avoid vibrations and possible resonance effects, we recommend you to place a soft rubber plate
between the base plate of the pump and the ground.

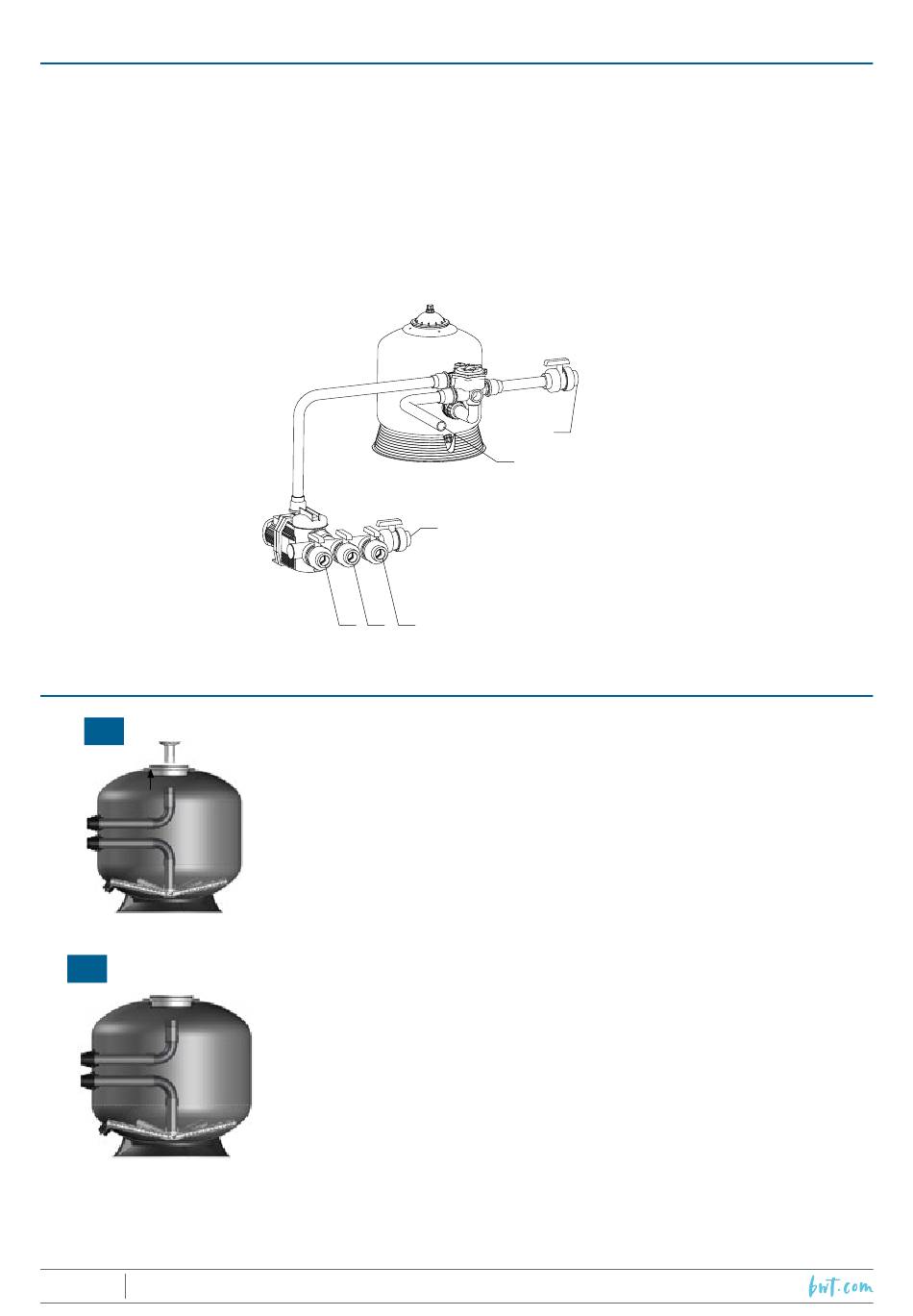

1.1
Standard installation
A-B :
Skimmers
C :
Main drain
D :
Vacuum point
E :
Water return
F :
Waste
2.
FILTER ASSEMBLY
1
2
14/40
2020/12 - Indice de révision : D - Code : 26625
D
A B C
PTYHON 920 : Remove the diffuser (3), be careful of the air bleed tube
(4). Place a cap on the collector tube (6).
Fill the tank with water until the water level is 5 cm above the laterals (5).
F
E
