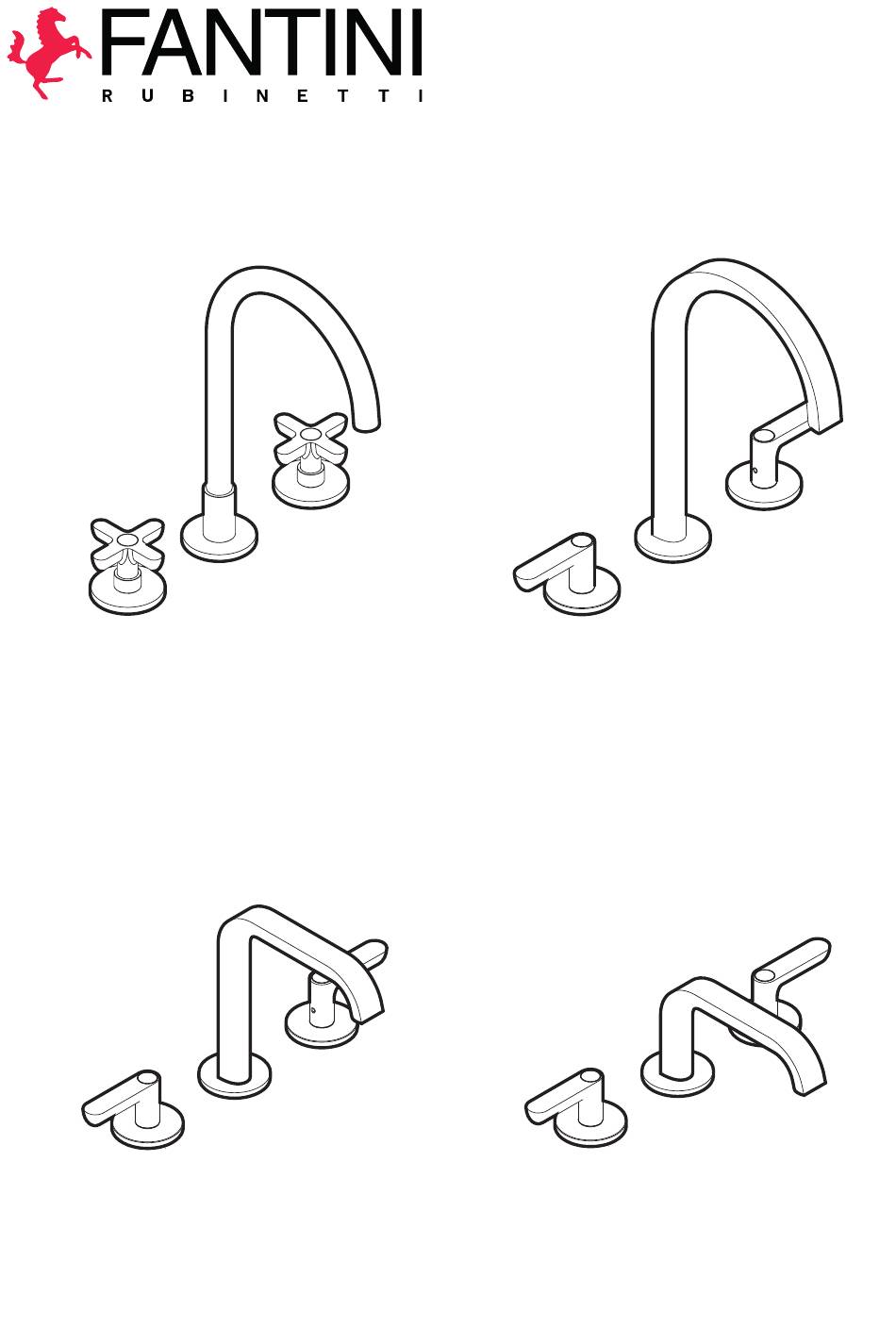

- Page 1 ICONA Instructions / Instructions De Montage / Instrucciones CLASSIC R007U DECO R107U DECO R106U DECO R104U...
- Page 2 pre-installation - pré-installation - preinstalación CLASSIC R007U 100 - 150 100 - 150 181 - 7 1/8" 3 15/16" - 5 15/16" 3 15/16" - 5 15/16" 161 - 6 5/16" 2 1/4" M 29 x1 63.5 2 1/2" G1"1/4 9/16 9/16 24F UNEF...
- Page 3 pre-installation - pré-installation - preinstalación DECO R107U 181 - 7 1/8" 100 - 150 100 - 150 3 15/16" - 5 15/16" 3 15/16" - 5 15/16" 161 - 6 5/16" 2 1/4" 63.5 M 29 x1 2 1/2" G 1"1/4 9/16 9/16 24F UNEF...
- Page 4 pre-installation - pré-installation - preinstalación DECO R106U 100 - 150 100 - 150 3 15/16" - 5 15/16" 3 15/16" - 5 15/16" 165 - 6 1/2" 144 - 5 11/16" 2 1/4" M29 x1 63.5 2 1/2" G1"1/4 9/16 9/16 24F UNEF 24F UNEF...
- Page 5 pre-installation - pré-installation - preinstalación DECO R104U 100 - 150 100 - 150 3 15/16" - 5 15/16" 3 15/16" - 5 15/16" 165 - 6 1/2" 144 - 5 11/16" 2 1/4" M29 x1 63.5 2 1/2" G1"1/4 9/16 9/16 24F UNEF 24F UNEF...
- Page 6 tecHnical Details - Données tecHniQUes - Datos técnicos Minimum pressure pression minimum pression mínima 1 Bar Maximum pressure pression maximum pression máxima 10 Bar reccomended working pressure pression optimale de service pression de trab. aconsejada 2-5 Bar Max. water temperature température maximum temperatura máxima 80°...
- Page 7 installation - installation - instalación INSTALLING THE FLEXIBLE HOSES (SUP- PLIED): warning only use the flexible hoses supplied. check for the presence and perfect condition of the seaming DIN6 = 25mm - 1” on either side of the flexible hoses before instal- DIN8 = 30mm - 1 1/8”...
- Page 8 installation - installation - instalación asseMBlY pHases pHase D’ a sseMBlage Fases De Montaje CLASSIC R007U asseMBlY pHases pHase D’ a sseMBlage Fases De Montaje DECO R107U asseMBlY pHases pHase D’ a sseMBlage Fases De Montaje DECO R104U R106U...
- Page 9 installation - installation - instalación 1/8”...
- Page 10 installation - installation - instalación...
- Page 11 installation - installation - instalación asseMBlY pHases CLASSIC pHase D’ a sseMBlage R007U Fases De Montaje asseMBlY pHases DECO pHase D’ a sseMBlage R107U Fases De Montaje asseMBlY pHases DECO pHase D’ a sseMBlage R104U Fases De Montaje R106U...
- Page 12 installation - installation - instalación ICONA CLASSIC R007U CLASSIC R007U 5/64”...
- Page 13 installation - installation - instalación 5/64” silicon...
- Page 14 installation - installation - instalación M 8X1...
- Page 15 installation - installation - instalación G 1/2” G 1/2” G 1/2” 15/16” 29/32” 9/16 24F UNEF G 1/2” 3/4” 9/16 24F UNEF 3/4”...
- Page 16 - installation - instalación ICONA DECO R107U DECO R107U 5/64”...
- Page 17 installation - installation - instalación silicon...
- Page 18 installation - installation - instalación M 8X1...
- Page 19 installation - installation - instalación G 1/2” G 1/2” G 1/2” 15/16” 9/16 29/32” 24F UNEF G 1/2” 3/4” 9/16 24F UNEF 3/4”...
- Page 20 installation - installation - instalación ICONA DECO R104U-R106U DECO R104U-R106U 5/64”...
- Page 21 installation - installation - instalación silicon...
- Page 22 installation - installation - instalación M 8X1...
- Page 23 installation - installation - instalación G 1/2” G 1/2” G 1/2” 15/16” 9/16 29/32” G 1/2” 24F UNEF 3/4” 9/16 24F UNEF 3/4”...
- Page 24 - Utilisation - Uso on first use or following prolonged periods of inactivity, do not use the first half-litre of drinking water dispensed. shut off the plumbing system in the event of a long absence. check the water-tightness regularly. lors de la première utilisation ou après une longue période de non utilisation, ne pas consommer le premier demi-litre d’eau potable qui sort du robinet.
- Page 25 cleaning - nettoYage - liMpieZa clean the surfaces using a soft cloth soaked in liquid soap diluted in water, then rinse and dry thoroughly. never use detergents containing abrasive substances or containing muriatic acid, vinegar, ammonia, acetone, bleach, domestic acids, disinfectants in general or abrasive sponges. caUtion! the use of products other than those recommended may damage the surfaces irreparably, in which case the manufacturer will not be held liable.
