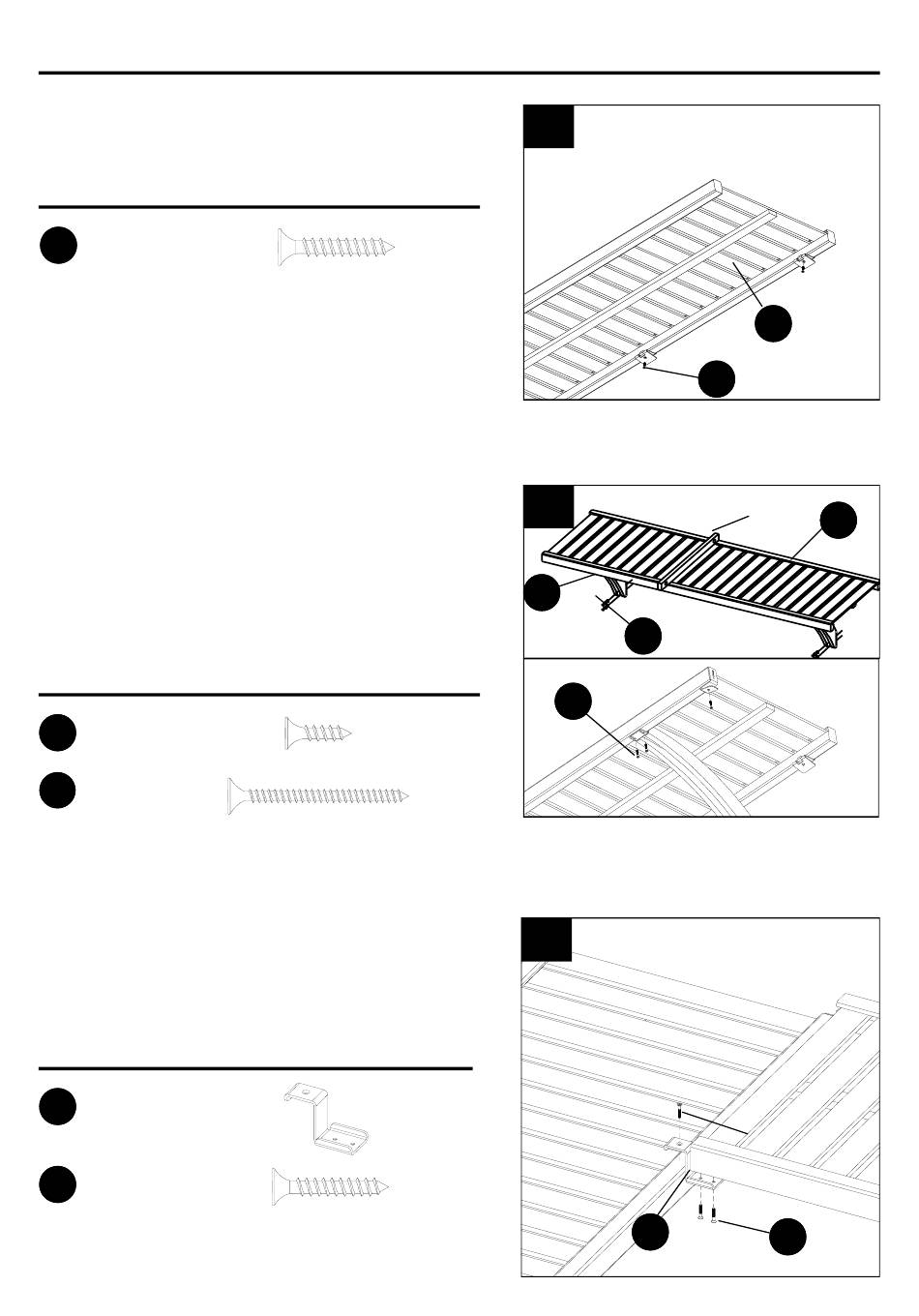

ASSEMBLY INSTRUCTIONS
3.
Attach shelf (A) to wall brackets using M4 x
25 mm screw (GG).
Hardware Used
GG
M4 x 25 mm Screw
4.
Position the shelf bracket (B) under the shelf
at each wall stud. Slide shelf bracket upward
to engage the shelf with the front nose angle
supporting the shelf. Place a level on shelf to
level and attach shelf bracket to wall using M4
x 45mm screws (DD). Secure nose angle to
shelf with M3 x 15mm screw (FF).
Hardware Used
FF
M3 x 15 mm Screw
M4 x 45 mm
DD
Wood Screw
5.
Versatile system could be constructed if
more than one shelf are available, assemble
corner bracket (AA) as shown, and secure
with M4 x 25 mm screw (GG).
Hardware Used
Corner Bracket
AA
M4 x 25 mm Screw
GG
All manuals and user guides at all-guides.com
x 3
x 4
x 4
x 1
x 3
7
3
GG
4
B
DD
FF
5
AA
A
Level
A
GG
