Doc. N.° 1SDH000719R0615 - ECN000245422 - Rev. E

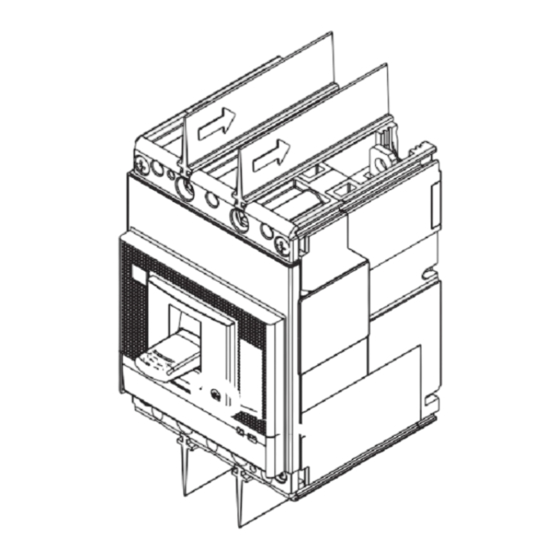

SACE Tmax XT
AUX-C - Contatti ausiliari 250V-24V cablati XT1 - XT2 - XT3 - XT4 (S51; 1Q+1SY; 2Q+1SY; 3Q+1SY; 3Q+2SY; 2Q+2SY+1S51)
AUX-C - XT1 - XT2 - XT3 - XT4 wired auxiliary contacts 250V-24V (S51; 1Q+1SY; 2Q+1SY; 3Q+1SY; 3Q+2SY; 2Q+2SY+1S51)
AUX-C - Hilfskontakte 250V-24V, verdrahtet XT1 - XT2 - XT3 - XT4 (S51;1Q+1SY; 2Q+1SY; 3Q+1SY; 3Q+2SY; 2Q+2SY+1S51)
AUX-C - Contacts auxiliaires 250V-24V câblés XT1 - XT2 - XT3 - XT4 (S51;1Q+1SY; 2Q+1SY; 3Q+1SY; 3Q+2SY; 2Q+2SY+1S51)
AUX-C - Contactos auxiliares 250V-24V cableados XT1 - XT2 - XT3 - XT4 (S51;1Q+1SY; 2Q+1SY; 3Q+1SY; 3Q+2SY; 2Q+2SY+1S51)
AUX-C - 带导线辅助触点 250V-24V XT1 - XT2 - XT3 - XT4 (S51;1Q+1SY; 2Q+1SY; 3Q+1SY; 3Q+2SY; 2Q+2SY+1S51)
