LiftMaster OES-RD16 Installation

To prevent possible SERIOUS INJURY or DEATH from a closing door:
• Be sure to DISCONNECT POWER to the operator BEFORE installing the photoelectric edge sensor.
• The door MUST be in the fully opened or mid position BEFORE installing the LiftMaster
• Correctly install, connect and test the photoelectric edge sensor for proper operation.
• Install the photoelectric edge sensor on the closing edge of the door.
®
• LiftMaster Monitored Entrapment Protection devices OES-RD16 are for use with LiftMaster
other product voids the warranty.
• Entrapment protection devices MUST be installed per the operator owner's manual.
APPLICATION
LiftMaster ® Protector System models OES-RD16 is a monitored entrapment protection devices for use with rolling doors. These devices are compatible
with LiftMaster ® Heavy, Standard, & Medium Duty Logic (post 2010), FDC, FDCL, FDOA, FDOB, & Egress Commercial Door operators. These devices
may be installed in areas exposed to rain or moisture. The images in this document are for reference only and your product may look different.
CARTON INVENTORY
Photoelectric sensors (transmitter and receiver), junction box with wire nuts, 2-wire coil for doors up to 20 feet (6.1 m) high, and bumpers (2).
INSTALLATION

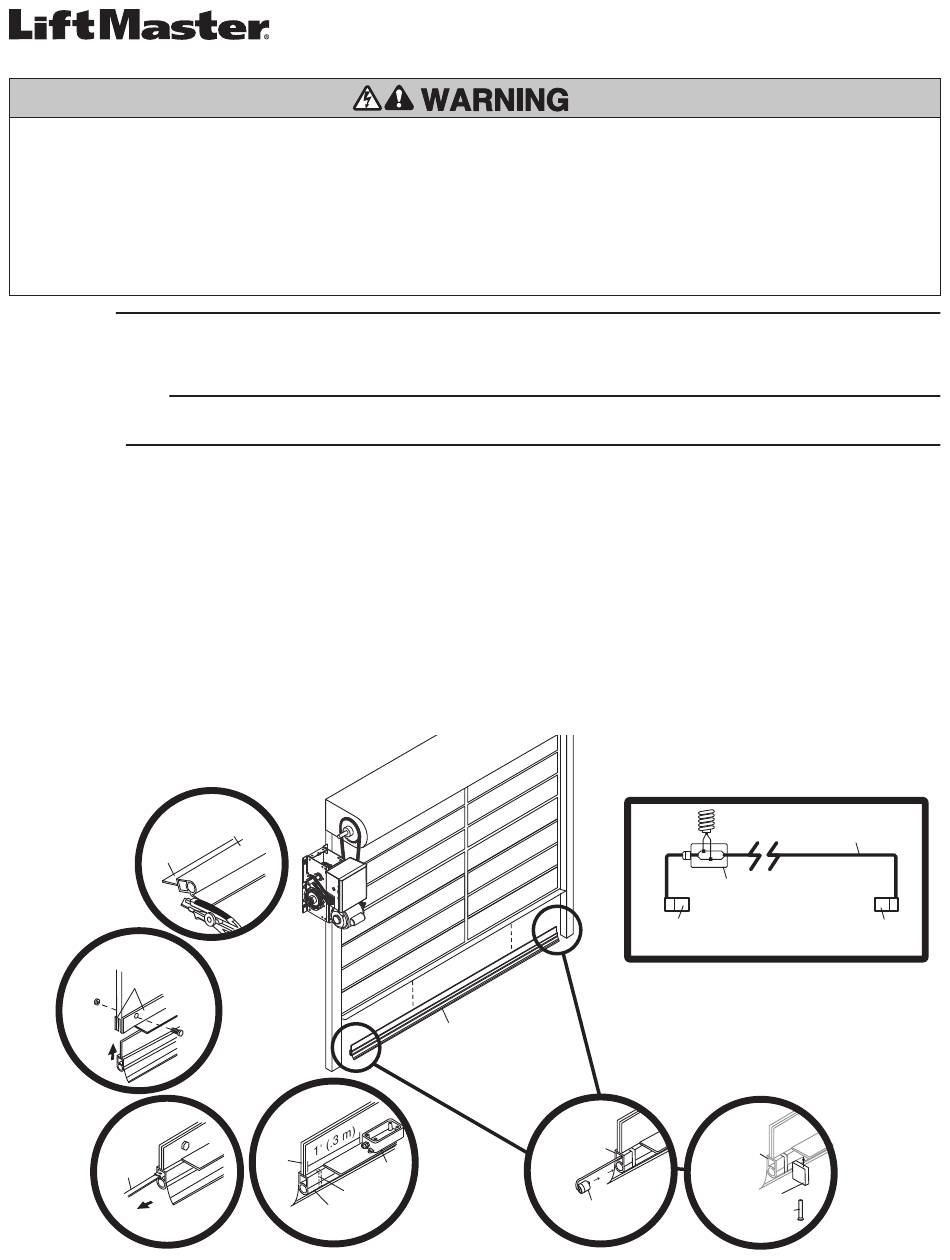

1. Measure the width of the door and cut the rubber sensing edge to the width of the door.
2. Insert the top fl ap of the rubber sensing edge into the double angle bottom bars of the rolling door. Make sure the bottom fl ap is facing outside.
Secure with the hardware from the double angle bottom bars of the rolling door.
3. From the side nearest the operator, use the fi sh tape to pull the photoelectric sensor wire through the upper compartment of the rubber sensing
edge. NOTE: Fish tape is not provided.
4. Mount the junction box to the rolling door on the same side of the door as the operator approximately 1 foot (.3 m) from the edge of the door.
5. Cut a small slit in the upper compartment of the rubber sensing edge directly below the connector of the junction box. Use pliers to pull both sets of
wires through the slit.
6. Insert the photoelectric sensors into the lower circular chamber of the rubber sensing edge until fl ush.
7. Insert the photoelectric sensor wires into the junction box and cut the excess wire.
8. Use self-tapping screws provided to mount a bumper at each end of the inside angle bottom bar.
NOTE: Check the manufacturer's requirements for approved safety devices. The OSE-C 1003 is available for older non-monitored operators.
