Safco TASK MASTER 5117 Instructions D'installation

an LDI Company
New Hope, MN 55428
Visit us on the web:
www.safcoproducts.com
PARTS LIST PARTS LIST PARTS LIST PARTS LIST PARTS LIST
CODE
DESCRIPTION
A Base
Lower Footrest
B
C Footrest Nut
D Flat Washer
E Hex Bolt
Glide
F
G Tapered Bushing (on H)
H Wavetube Assembly
I Seat Assembly
Back Assembly
J
K Knob with Cone Point
L Back Support Bar
M Knob with Flat Point
Check all parts against Parts List before beginning assembly.
Allow all parts to warm to room temperature prior to assembly.
1

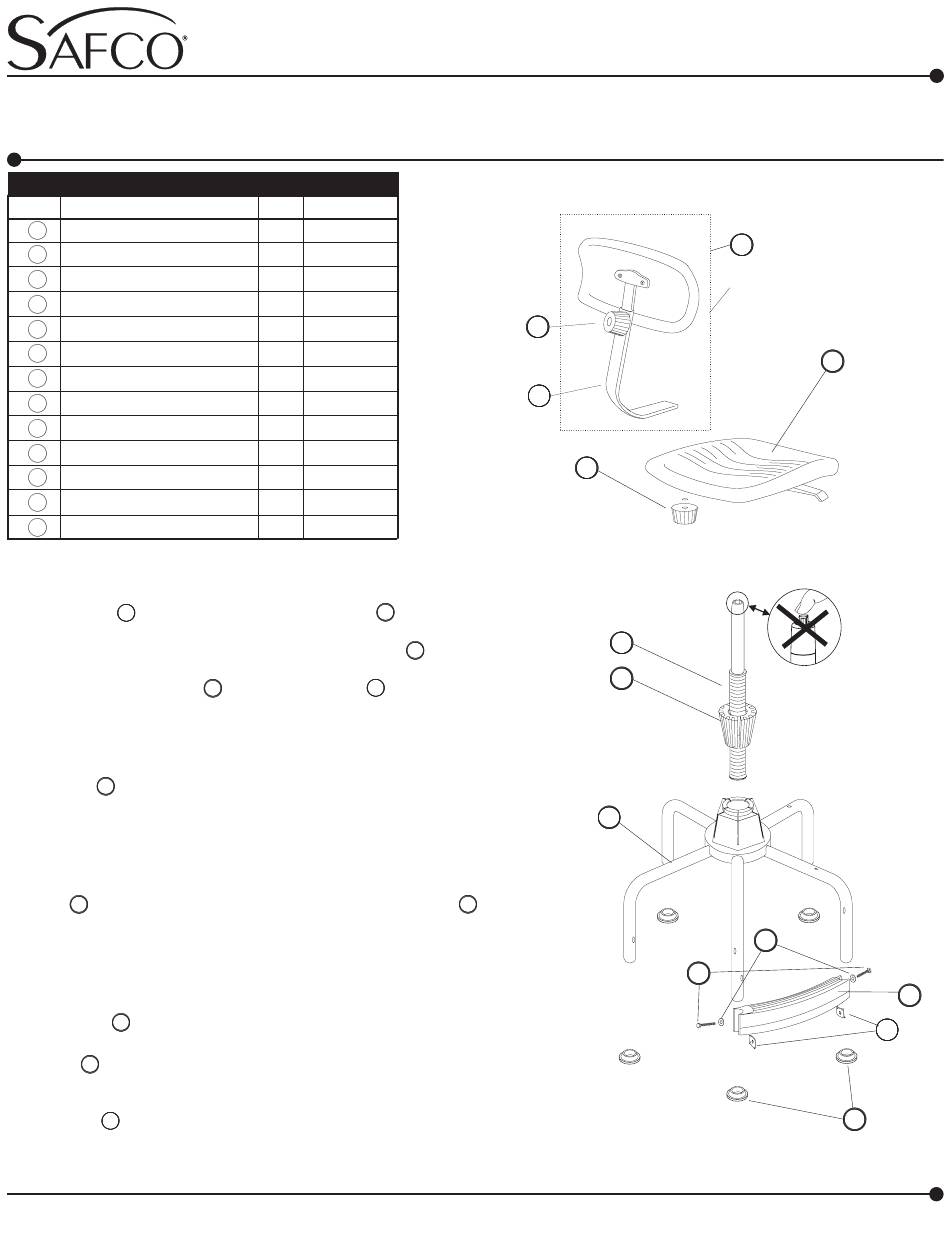

Select either the LOWER or the HIGHER set of mounting holes on the
legs of the A Base. From the bottom, slide a B Lower Footrest (with
the curved front facing out) up between those legs until the holes in
the footrest line up with those in the legs. Place a C Footrest Nut
inside the footrest, with the cupped side matching the curve of the
footrest end. Insert a D Flat Washer on to E Hex Bolt through the
hole in the base leg and the footrest, and thread it into the footrest nut.
Attach the other end of the footrest the same way. Now tighten bolts
alernately with a wrench, until both sides are evenly tight. Do not
overtighten.
2
Install a F Glide onto each of the legs of the base. The glides should
fit snugly, so place a glide under a leg and tap the leg into it with a
rubber mallet. Be sure the leg is inserted completely into the glide for
proper stability. (HINT: Glides are easier to install if they are slightly
expanded. Use a blow dryer or warm water, drying thoroughly, to
expand glides.)
3
The G Tapered Bushing should come preassembled on H
Wavetube (contact Safco if it is not). Spread the tapered bushing
slightly (it has a split side) and slide to about halfway down wavetube.
Insert the wavetube assembly, wave surface first, into the central hub
of the base; slide it down until the tapered bushing pops inside the
hub and nests securely.
4
Install the I Seat Assembly by aligning the hole on the underside
with the shaft of the wavetube assembly; push down firmly on seat.
5
Slide L Back Support Bar into bracket on underside of seat assem-
bly. Use a standard screwdriver to depress push button near end of
Back Support Bar and slide Bar until push button locks into bracket.
Remove K Knob with Cone Point from parts bag. Thread Knob into
bracket and tighten to secure Back Support Bar in proper position.
6
Make the final chair adjustments following the instructions on the
reverse side.
5117-37MP: 1 of 6;
Rev. 3: 12/03 [8001.03]
