Description
ID number
Communication media
PLC => Mains-borne signalling
Command keys
Operation

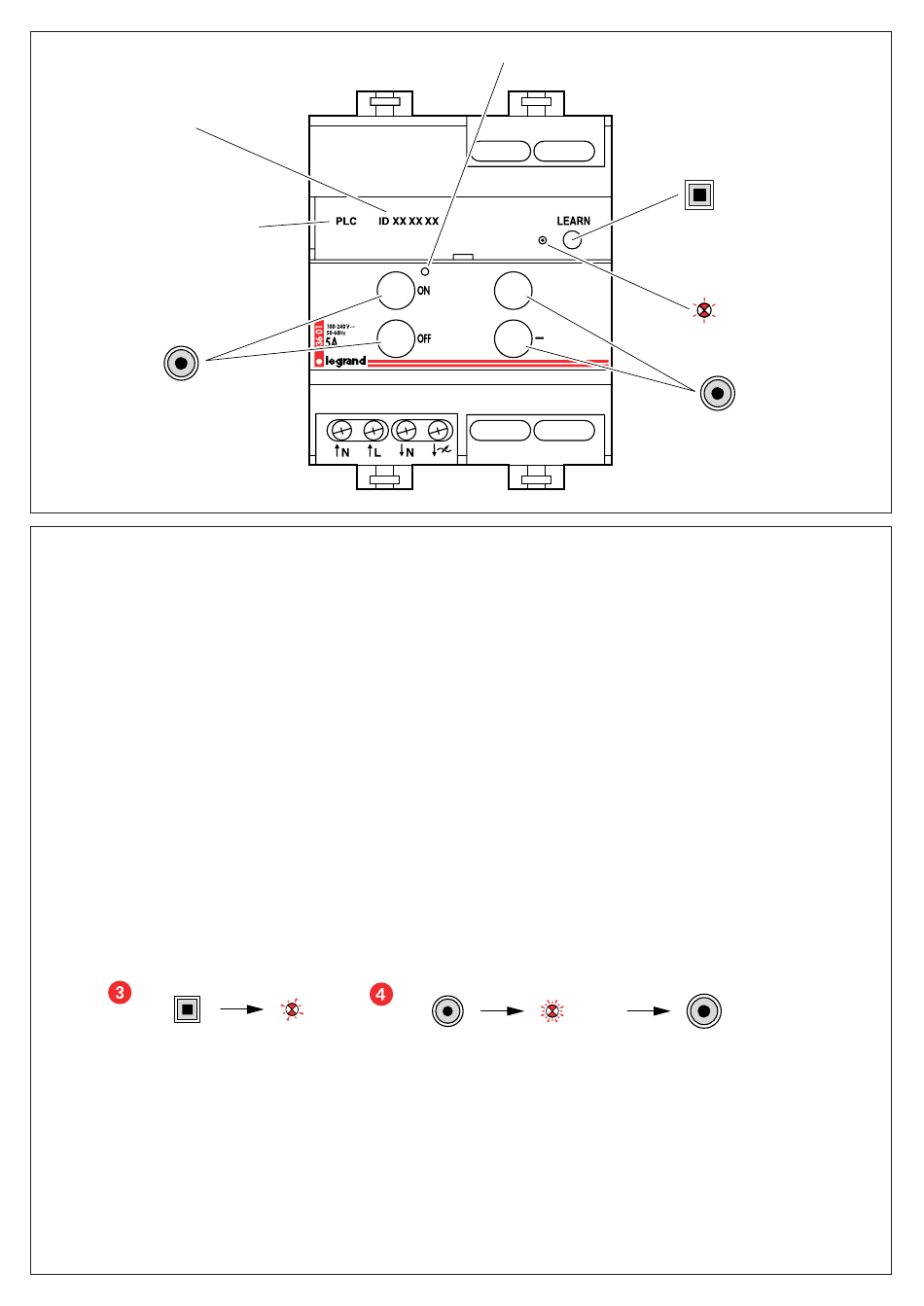

The remote control dimmer:
- Using its ON and OFF keys it can simultaneously control a set of products (actors) that have been associated with it
during the learn phase
(1)
- Can be controlled by other Leader products. It is then an Actor.
As Leader:
The remote control dimmer switch can control:
- The lighting points that are directly connected to the open phase terminal, using the ON, OFF , + and - keys.
- The lighting points associated with it (the actors) using the ON and OFF keys.
As Actor:
The remote control dimmer can participate in 16 different scenarios, executing the commands from the other Leaders.
Setting the light level of the ON button (excluding learning procedure) :
- Set the level using the + and - buttons
- Press the + and ON buttons at the same time, for 5 seconds
- The load will extinguish and light up again at the ON level
The ON level is now saved.
To record a light level during the learn phase, step 2 of the "learn scenario" becomes:
Press LEARN
(1) Learn phase: Operation to associate products so that they can be controlled simultaneously from a central point.
This association is carried out by applying the learn scenario procedure on page 7.
(2) Scenario: Corresponds to the set of products (actors) that are associated with a command key.
. It is then the Leader of the scenario
Press the ON command key
which must be associated
Load status
indicator lamp
+
.
(2)
with the leader
6 6
LEARN key
LEARN indicator lamp
Command keys
Press the + or - command key
to set the required
lighting level
