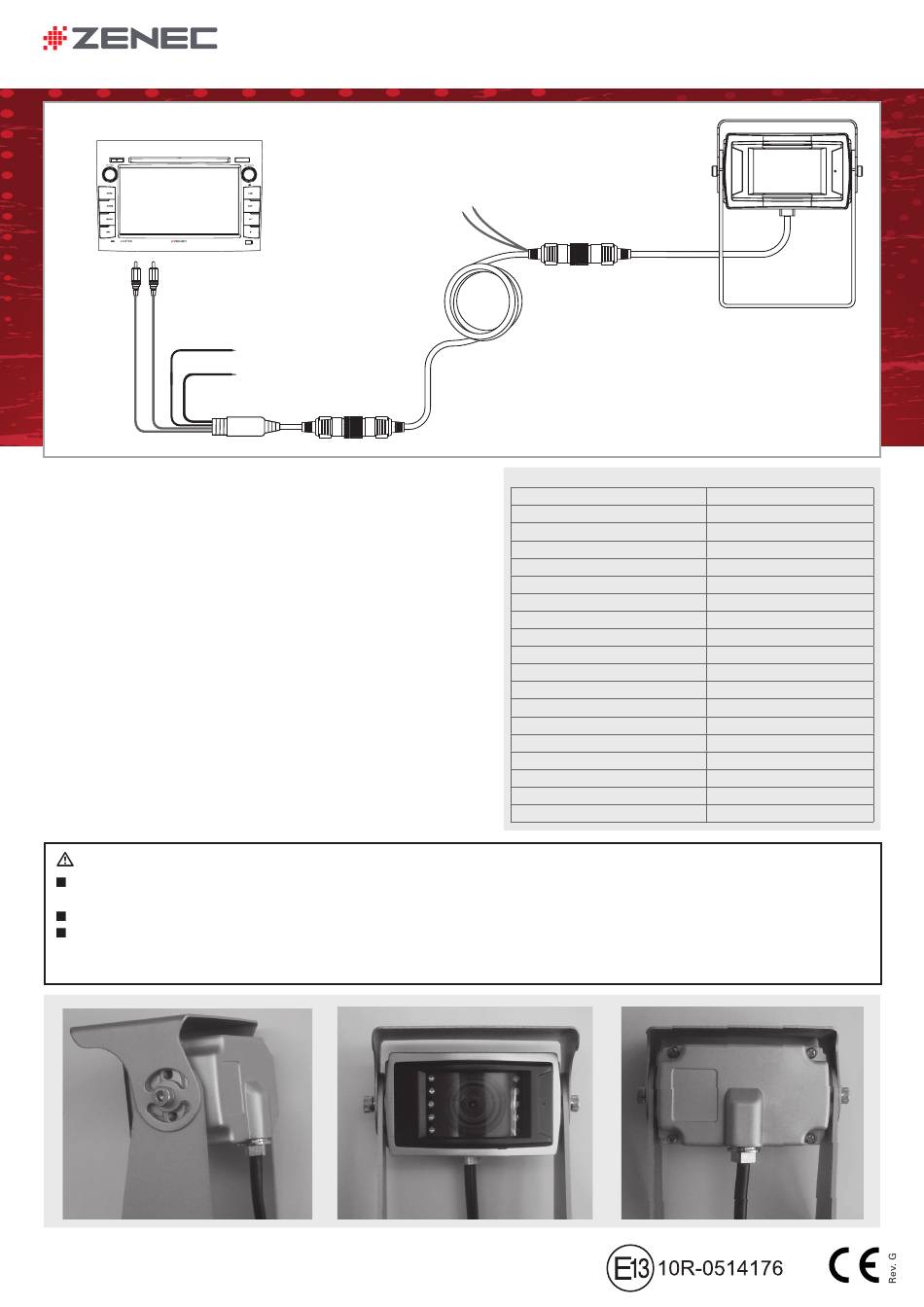

MOUNTING INSTRUCTIONS
Head unit
Yellow: video signal to head unit
Red: audio signal from microphone to head unit
KEY FEATURES
• Compact high resolution rear view camera
• LDR controlled day / night mode with 9 night vision IR-LED's
• User switchable picture inversion (mirror image)
• 3 m main wire harness length with 6PIN connector system – incl. 15m
extension cable
• Mounting brackets for 38 mm or 60 mm mounting clearance included
in the set
• Powder-coated aluminum die cast housing
DESCRIPTION:
This ZENEC rear view camera model has been developed for use with
motorhomes, camper vans and trailers. The use of high quality parts and
materials for best weather resistance and longevity, as well as the clever
construction according to IP69K protection class allow for a perfect
operation in the afore mentioned target vehicles.
The ZE-RVSC90 offers a large horizontal viewing angle and can be
operated in inverted or non-inverted picture mode to comply with a great
variety of RVC monitors and head units.
This product is compatible with a wide variety of 2-DIN A/V receivers of
the aftermarket and the ZENEC E>GO product line up, including ZENEC
2-DIN infotainers and naviceivers.
NOTES:
Following the latest trend in vehicle electronics, newer cars mainly use a pulse width modulated power feed for outer
hull lights, which is unsuitable for imaging/video electronics, as it causes considerable picture distortion.
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is 100% water- and dustproof and has been tested according to international standard IP69K. However, cleaning
your vehicle with a high pressure washer, may damage the housing sealings.
Keep a distance of at least one meter between water nozzle and camera housing.
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com
Red: CAMERA PWR (+12V)
Black: GND
Connect the bare ends of
the two green wires for
inverted picture.
6 PIN connector
15 m
Technical Specifi cations
Image device:
Lens focal length:
TV system:
View angles:
Native sensor resolution:
Resolution of video-out:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
Dimensions w/short bracket (HxWxD): 74 x 85 x 65 mm
Dimensions w/long bracket (HxWxD):
Weight:
ZE-RVSC90
ZE-RVSC90
REAR VIEW CAMERA
REAR VIEW CAMERA
ZE-RVSC90
3 m
:
⅓" / 8.5 mm Sharp CCD sensor
f2.3
NTSC / 60 Hz
150°(D) x 105°(H) x 80°(V)
811 (H) x 507 (V) pixels
> 600 TV lines
> 51 dB
0.3 Lux (IR On)
1,0 Vp-p, 75 ohms
Auto
Auto
Auto
DC 12 V (10 V - 16 V)
130mA (DC12V) / ≤ 1.5W
IP69K
-20°C~+70°C, RH 95% max.
101 x 85 x 65 mm
333 g
