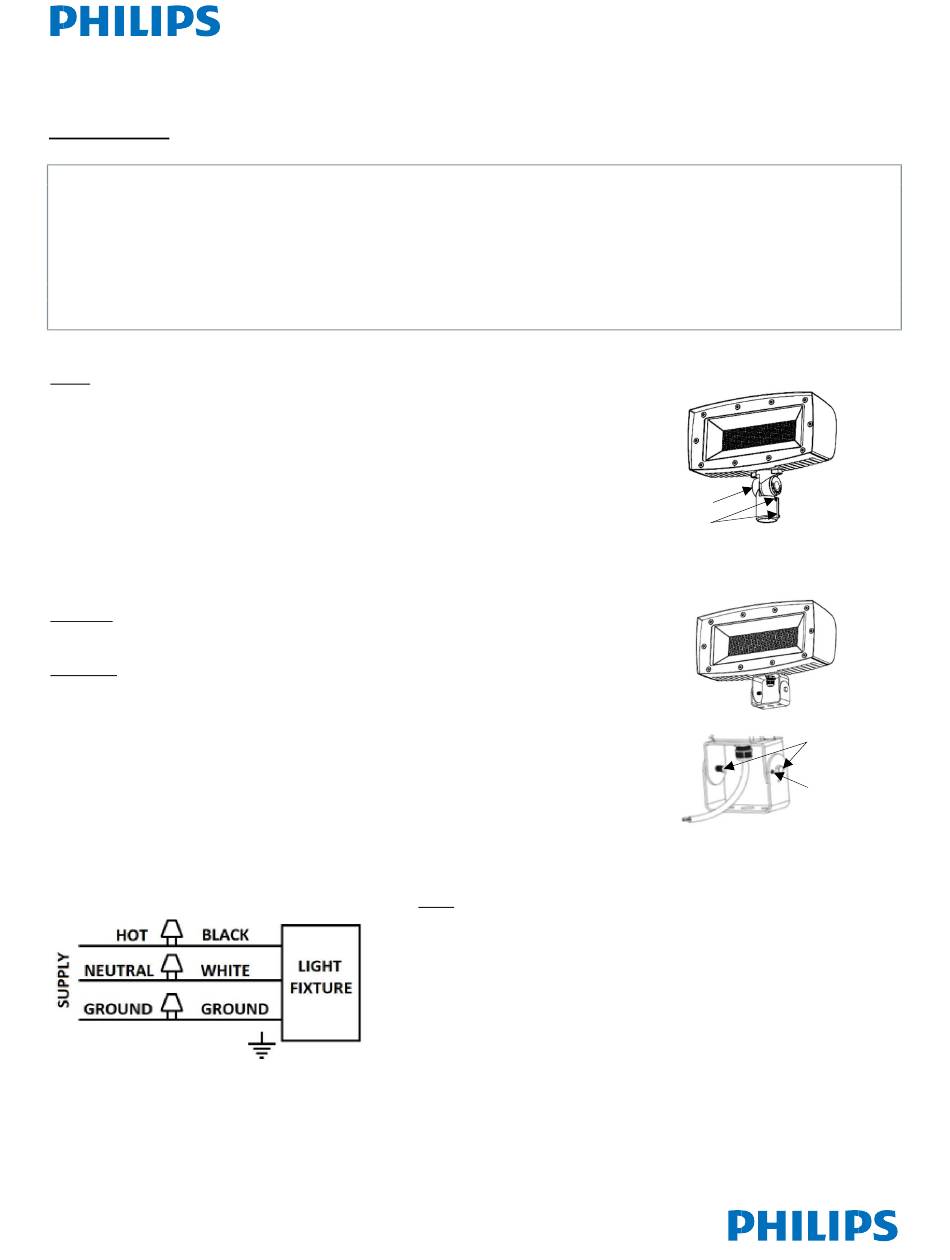

INSTALLATION & SERVICE INSTRUCTIONS FOR
FL80, FL150, FL200, FL300 (FLOODS)
IMPORTANT: READ BEFORE INSTALLING FIXTURE. RETAIN FOR FUTURE REFERENCE.
IMPORTANT:
READ BEFORE REMOVING FIXTURE FROM CARTON. RETAIN FOR FUTURE REFERENCE.
This fixture must be wired and installed in accordance with the NATIONAL ELECTRIAL CODE and all state and applicable local codes and
ordinances. These codes and ordinances supersede any and all instruction contained herein. Installation should be performed only by a licensed
and bonded electrician and a person familiar with the construction and operation of the product and the hazards involved in the installation and
operation of this product. Proper grounding is required for safety. Make certain power is OFF before installing or maintaining fixture. Failure to do
so may increase the RISK OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE, AND DEATH. The manufacturer takes no responsibility for the
product not installed under those guidelines and those contained in this document. See wiring diagram below.
CAUTION:
For proper weatherproof function, all gaskets must be seated
Apply weatherproof silicone sealant (NOT included) around the edge of the Wall Box and/or Junction Box. This is especially important with an
uneven wall surface. Silicone all plugs and unused conduit entries where applicable.
Mounting Instructions (Slip Fitter)
NOTE: Slip fitter option is compatible with 2-3/8" diameter pole maximum.
1. Make wiring connections to the light fixture using the wire nuts supplied.
Follow wiring instructions given below for proper wiring.
2. Inspect to ensure all 4 set screws are backed out of inner diameter of slip fitter.
Use included 5/32" hex wrench to adjust as needed.
3. Guide connected wires down into pole and slide slip fitter onto pole.
Ensure that wires are not being pinched.
4. Tighten 4 set screws to pole and torque
5. To adjust angle of fixture, loosen external pivot bolt with included 5/16" hex wrench.
Set in desired position, then with torque wrench tighten bolt to 180
Mounting Instructions (Trunnion Mount)
CAUTION: UL and C-UL listed or CSA certified liquid tight cord grip suitable for use with
three conductor type STW flexible cord shall be used for connection to a wet location
outlet box provided by other.
WARNING: Installer must assure suitability of the surface to safely support the luminaire.
Do not install if any parts are damaged. Installer must assure that mounting hardware is
seated properly in mounting flange of trunnion and that it is not damaged.
Hardware should be torqued appropriately to ensure fixture stability.
1. Mount trunnion bracket noting warning above.
2. Make wiring connections to the light fixture using the wire nuts supplied.
Follow wiring instructions given below for proper wiring.
3. To adjust angle of fixture, loosen pivot bolts and angle locking screw.
Set in desired position, then torque pivot bolts to 132 in.lbs.
Philips Lighting North America
Corporation
200 Franklin Square Drive,
Somerset, NJ 08873, USA
to 110 in.lbs.
NOTE: Make sure that the mains voltage is appropriate and conforms with the
1. Connect the green GROUND wire from the fixture to the supply GROUND.
2. Connect the WHITE lead from the fixture to the (-) NEUTRAL supply wire.
3. Connect the BLACK lead from the fixture to the (+) HOT supply wire.
1. Check that the line voltage at the fixture is correct.
2. Check that there is voltage at the fixture. If there is no voltage,
3. Ensure that the fixture is grounded properly.
Philips Éclairage Canada ltée
281 Hillmount Road
Markham, ON, Canada L6C 253
properly, and all screws inserted and tightened firmly.
in.lbs.
ON-OFF WIRING METHOD:
luminaire driver.
TROUBLESHOOTING:
check all connections.
Pivot Bolt
Set Screws
Pivot Bolts
Angle Locking
Screw
