Hisense PureFlat RF27A3FSE Mode D'emploi page 7

7
with an Allen wrench (4 mm).Remove the
lower left and right door hinges (F).

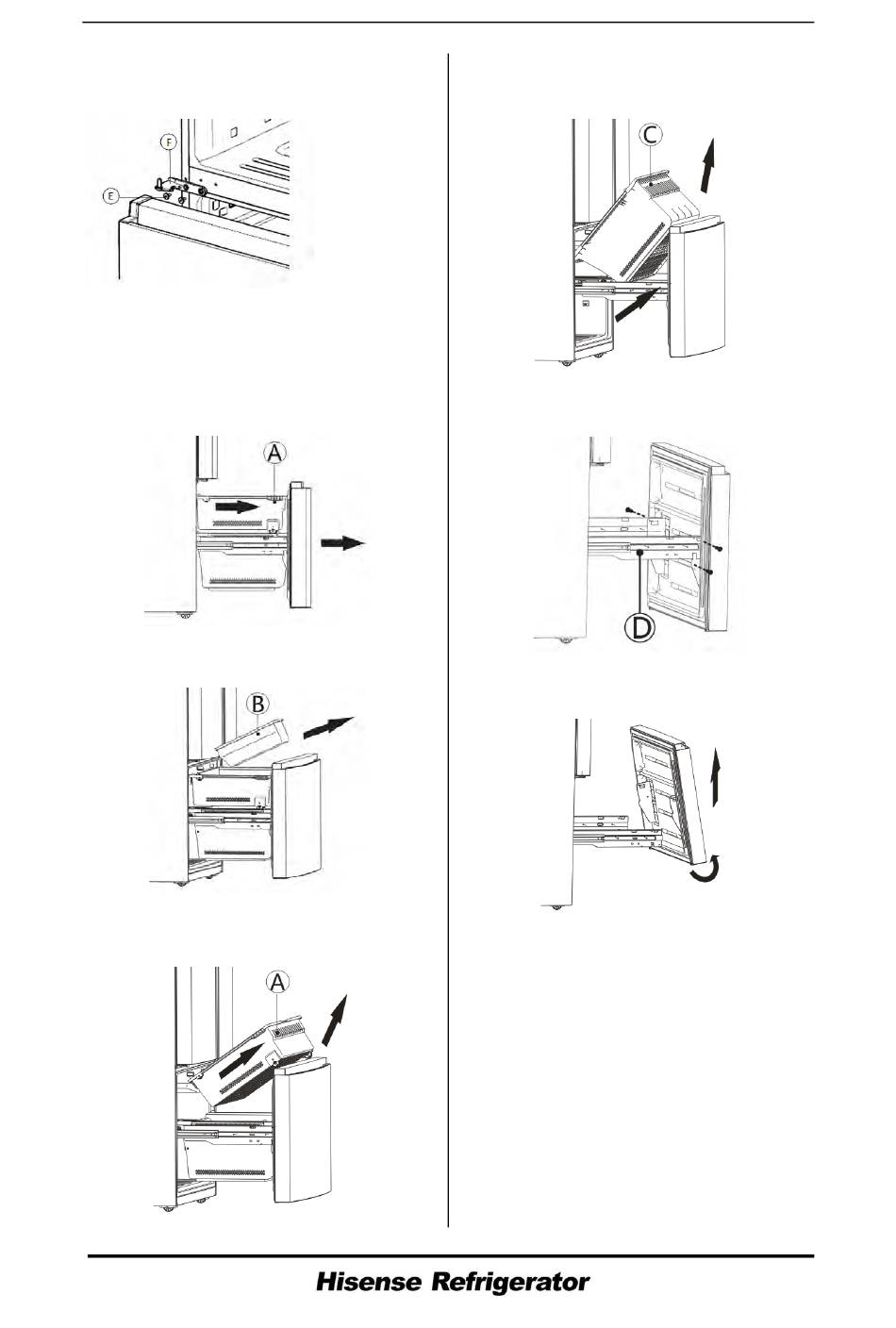

Disassembling the freezer door
1. Pull out the freezer door and the upper
freezer drawer (A) to the final position.
2. Take out the ice storage box (B) by lifting
it upin the direction of the arrow.
3.Take out the upper freezer drawer (A) by
lifting it up from the rail system.
4. Remove the lower freezer drawer (C) by
lifting it up.
5. Remove the 4 screws attached to the
supporting frame (D).
6. Pull out the freezer door and lift it upin
the direction of the arrow.
Re-assembling the freezer door
To reattach the drawer after you moved the
appliance to its final location, assemble the
parts in reverse order.
