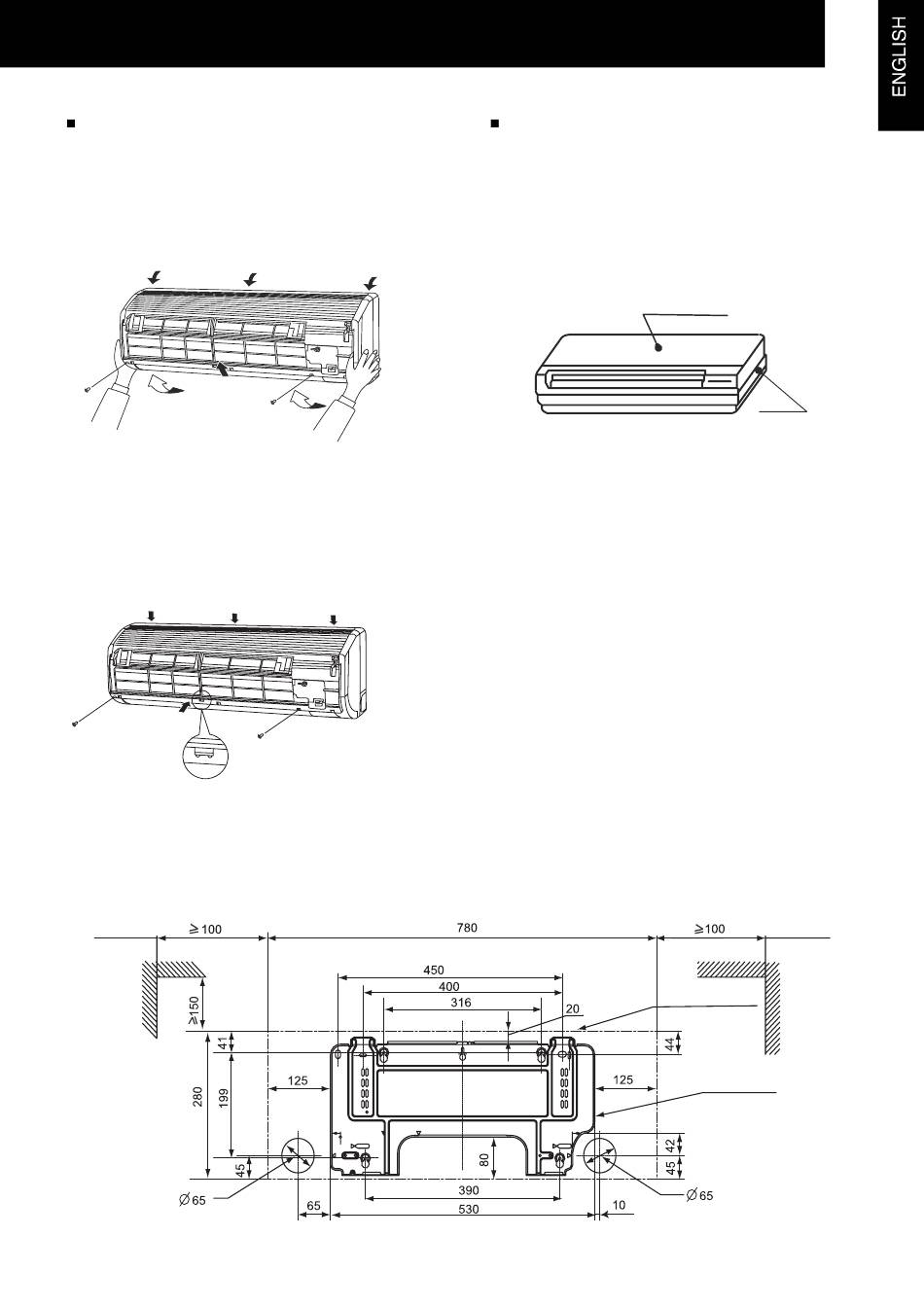

Removing Front Panel
In order to connect the refrigerant piping, wiring and to
check drain water flow, removing the right side cover is
needed. Perform this work according to the following
instructions. Pay an attention to the resin components not
to scratch.
1. Open the front panel and remove two screws
2. Slowly pull the lower side of the front panel at your side
by paying attention to the air outlet part without touching
the outlet grille.
Slightly lift the front panel upward in order to release the
combined parts (three parts) of upper side of the front
panel.
NOTE:
Do not hit the front panel when removing it, otherwise
the body will be broken.
2.1.4. DIMENSIONS OF THE MOUNTING BRACKET
Service Space
UNITS INSTALLATION
Putting back Front Panel
1. Firstly put back the upper side of the front panel (three
parts), and then fix the hook on bottom center part
2. There are stoppers inside of the front panel. Check to
ensure that there is no gap between front panel and
unit body.
Front Panel

CAUTION:
Any gap may cause air leakage or dewing
Unit exterior contour
2
3
Body
Service Space
Mounting Bracket
