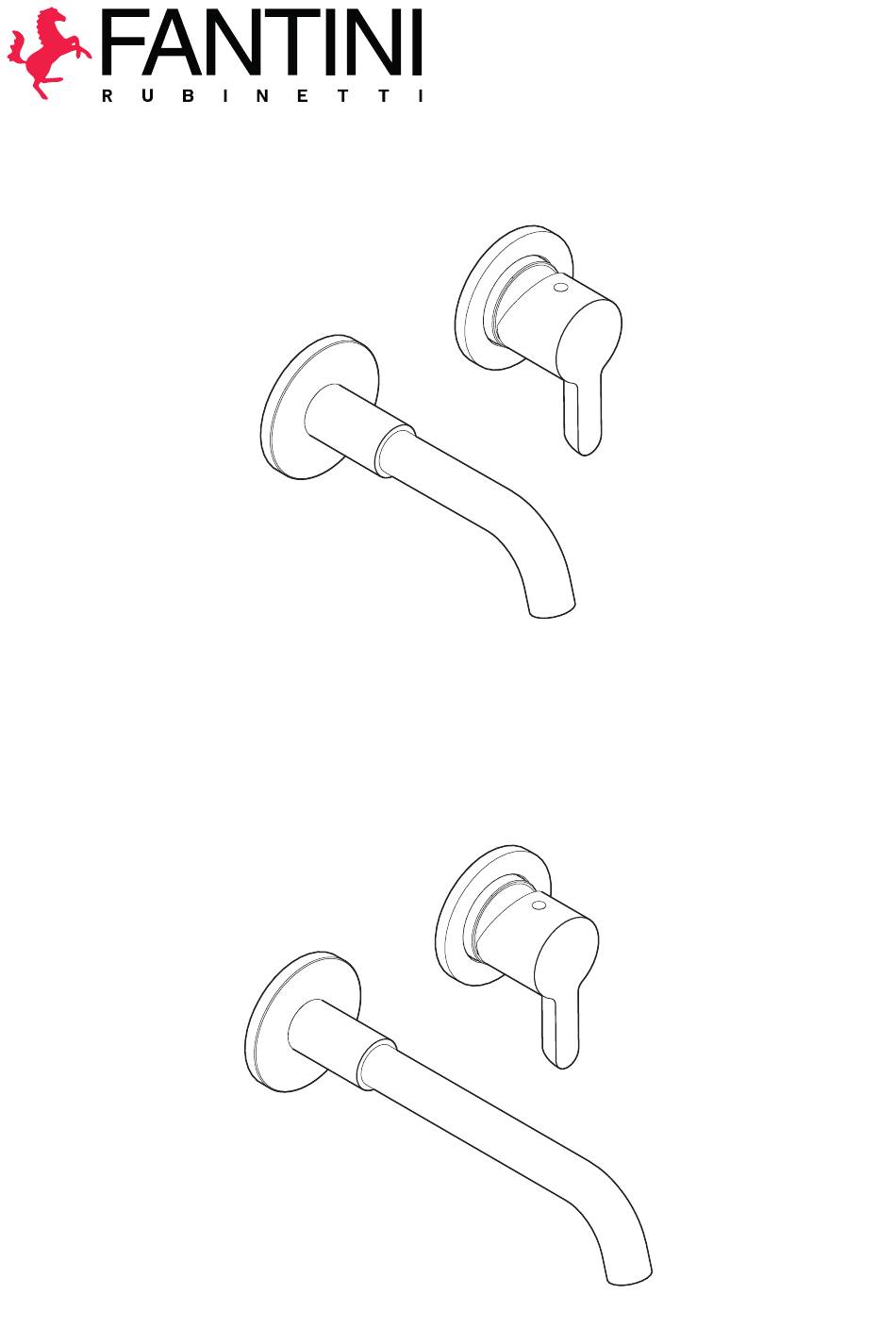

- Page 1 ICONA Instructions / Instructions De Montage / Instrucciones R411BU R413BU...
-
Page 2: Pre-Installation
PRE INSTALLATION PRÉ INSTALLATION - PREINSTALACIÓN R411BU 5-1/8" 2"- 2-5/8" 1/2" 6-1/8" R413BU 5,118 2"- 2-5/8" 1/2" 8-1/8"... -
Page 3: Necessary Tools
NECESSARY TOOLS OUTILS NÉCESSAIRES HERRAMIENTAS NECESARIAS TEFLON 30 mm 27 mm 2 mm 6 mm 10 mm... -
Page 4: Technical Details
TECHNICAL DETAILS - DONNÉES TECHNIQUES - DATOS TÉCNICOS Pression mínima Minimum pressure Pression minimum 1 BAR Pression máxima Maximum pressure Pression maximum 10 BAR Pression de trab. aconsejada Reccomended working pressure Pression optimale de service 2-5 BAR Temperatura máxima Max. water temperature Température maximum 80°... - Page 5 INSTALLATION - INSTALLATION - INSTALACIÓN R411BU R413BU 2 mm...
- Page 6 INSTALLATION - INSTALLATION - INSTALACIÓN 30 mm 10 mm...
- Page 7 INSTALLATION - INSTALLATION - INSTALACIÓN ~10-12 Nm 27 mm 10 Nm...
- Page 8 INSTALLATION - INSTALLATION - INSTALACIÓN silicon O-ring O-ring 2 mm...
- Page 9 INSTALLATION - INSTALLATION - INSTALACIÓN 6 mm...
- Page 10 INSTALLATION - INSTALLATION - INSTALACIÓN...
- Page 11 INSTALLATION - INSTALLATION - INSTALACIÓN METAL...
- Page 12 INSTALLATION - INSTALLATION - INSTALACIÓN TEFLON 6 mm 2 mm R411B R413B...
- Page 13 R411BU - UTILISATION - USO R413BU...
- Page 14 - UTILISATION - USO EN On first use or following prolonged periods of inactivity, do not use the first half-litre of drinking water dis- pensed. Shut o the plumbing system in the event of a long absence. Check the water-tightness regularly. FR Lors de la première utilisation ou après une longue période de non utilisation, ne pas consommer le premier demi-litre d’eau potable qui sort du robinet.
- Page 15 CLEANING - NETTOYAGE - LIMPIEZA EN Clean the surfaces using a soft cloth soaked in liquid soap diluted in water, then rinse and dry thoroughly. Never use detergents containing abrasive substances or containing muriatic acid, vinegar, ammonia, acetone, bleach, do- mestic acids, disinfectants in general or abrasive sponges.
- Page 16 Fratelli Fantini SpA via Buonarroti, 4 Pella (NO) Italia T +39 0322 918411 r.a. F +39 0322 969530 fantini@fantini.it www.fantini.it...
