Section 2

Door Removal

REMOVING LOWER DOOR ASSEMBLY

(Only if required for access through narrow doors)
1. With door in closed position, remove Phillips head
screw and washer from hinge area on each side of
lower access door.
2. Insert screwdriver between door and hinge bracket
on one side of door and gently push against bracket
to provide room for door stud to clear bracket.
3. Remove access door.
4. Pull up on baffle to remove.
5. Remove screws along top of door assembly.
6. Pull forward on top of assembly and lift to remove.

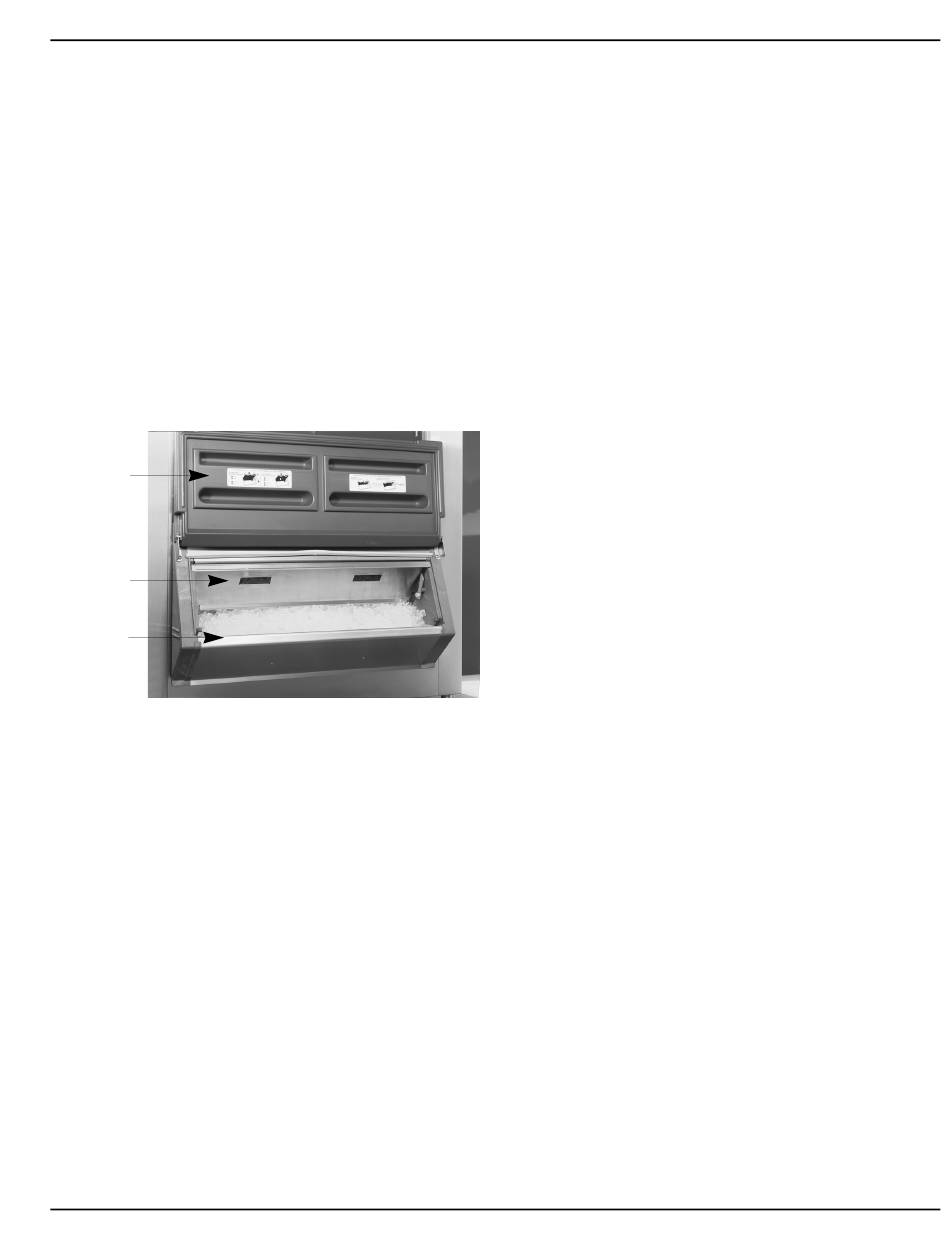

ACCESS
DOOR
BAFFLE
LOWER
DOOR
ASSEMBLY
Part Number 000006528 10/09

REINSTALLING LOWER DOOR ASSEMBLY

1. Reinstall lower door assembly in bin opening.
2. Reinstall screws in hood at top of door assembly.
3. Reinstall baffle in side panel tracks and push down
to seat.
4. With door in closed position, insert one door stud
through hinge bracket, install washer, screw and
tighten.
NOTE: For proper operation the access door must be
reinstalled in the closed position.
5. On other side, insert screwdriver between door and
hinge bracket and gently push against bracket to
provide room for door stud to clear bracket.
6. Reinstall washer and screw in lift door and tighten.
7. Check door to ensure proper operation.
Installation Instructions
5
