Installation requirements

Location requirements

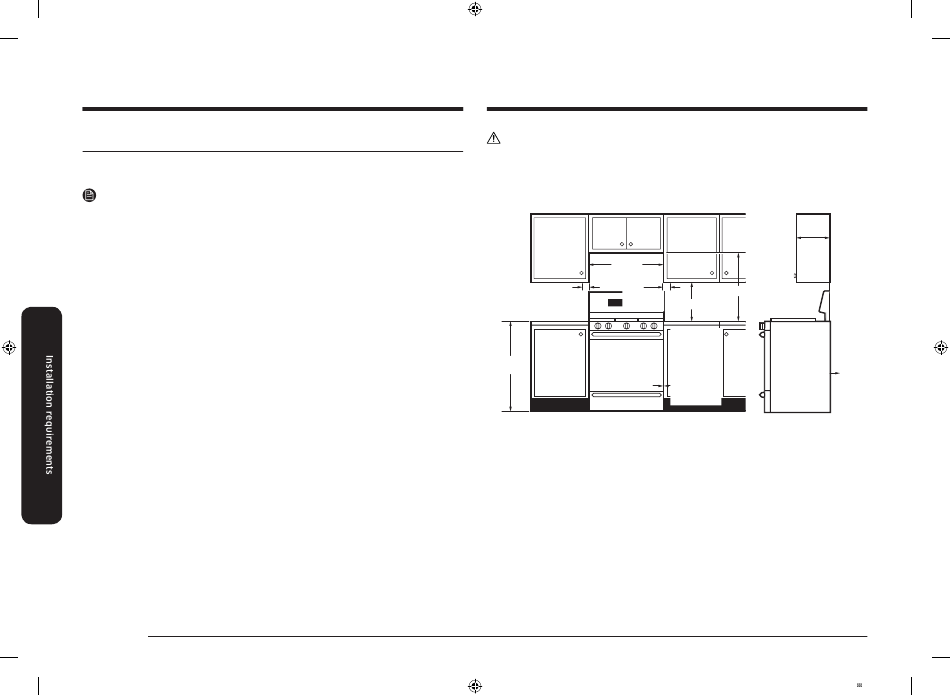

Clearances and dimensions
NOTE
For OTR over Gas Stove, please follow local GAS CODE.
BEFORE YOU BEGIN to install this appliance, refer to the following information,
dimensions, and clearances. Do not locate the range where it may be subject
to strong drafts. Provide adequate clearances between the range and adjacent
combustible surfaces. These dimensions must be met for safe use of the range.
The location of the electrical outlet and gas piping may be adjusted to meet the
following dimensions and clearances.
For installation in Canada, a free-standing range is not to be installed closer than
4.7 in (12 cm) from any adjacent surface.
16 English
Install_NX58R4311SS_AA_DG68-01153A-00_EN.indd 16
CAUTION
This range has been designed to comply with the maximum allowable wood
cabinet temperature of 194 °F (90 °C). Make sure the wall covering, countertops,
and cabinets around the range can withstand the heat (up to 194 °F [90 °C])
generated by the range. If not, discoloration, delamination, or melting may occur.
Side
30 in
Clearance
Above
Cooking
4 in
Surface to 6 in
(10.2 cm)
(15.2 cm)
Wall
24 in
(61 cm)
36 in
Lower
(91.4 cm)
Cabinet
Depth
13 in
(33 cm)
Overhead
Cabinet
Depth
30 in (76.2 cm)
18 in (45.7 cm)
0 in (0 cm)
Clearance
Below
Cooking Top
0 in
and at Rear
(15.2 cm)
and Sides of
Range
