Ecolab Hybrid-P BF16 Manuel D'entretien page 4

1
11
14
15
16
2

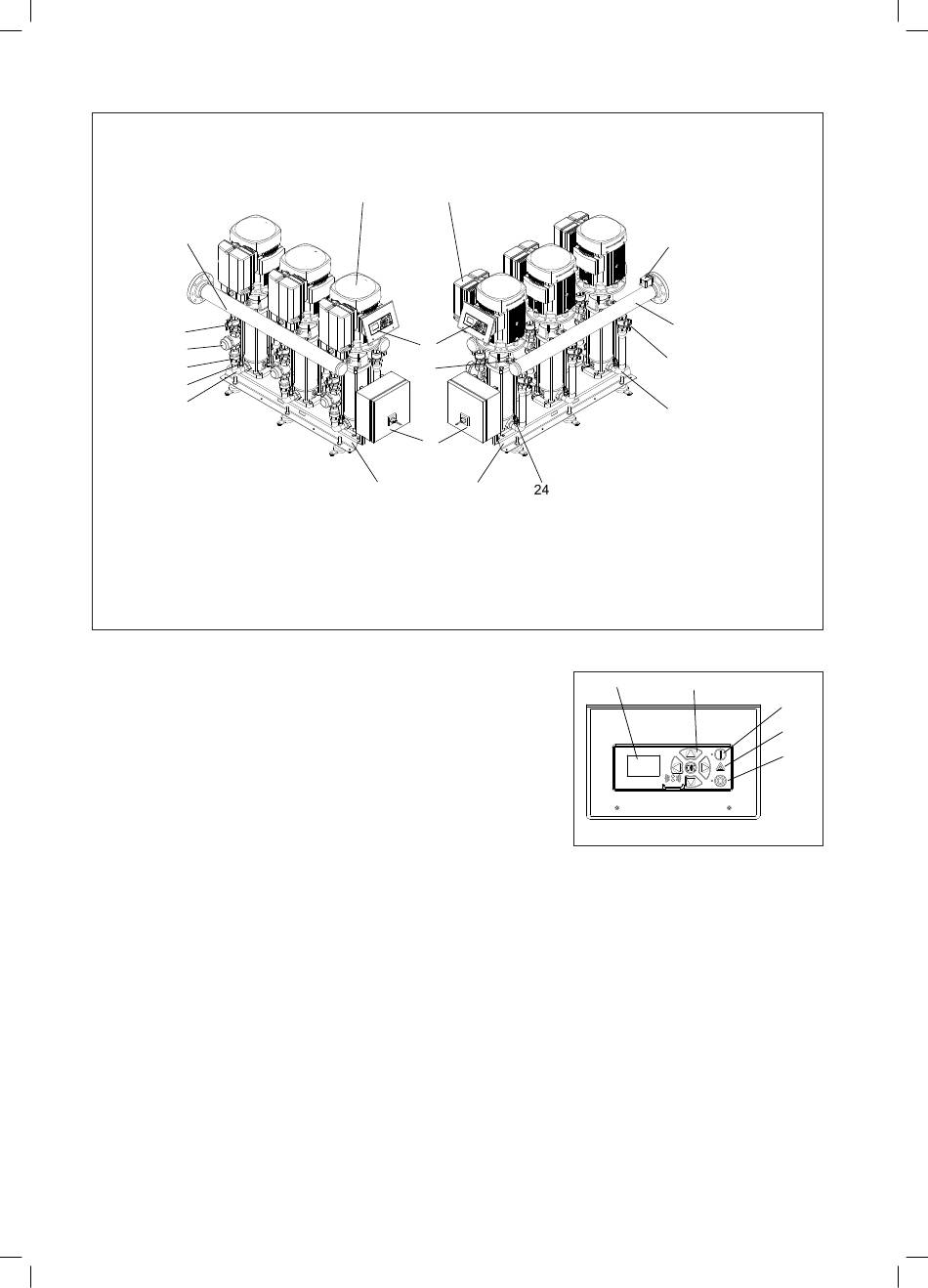

1.7 Multi Booster BF16 - BF24
1. Water inlet
2. Manifold inlet
3. Trigger sensor, flow sensor
4. Pump
5. Manifold outlet
6. Outlet pipe
7. Inverter box
8. Temperature sensor
9. Electrical connection box
10. Floor bracket
11. Inlet ball valve
12. Outlet ball valve
13. Operation panel
14. Strainer
15. Non Return Valve
16. Inlet pressure sensor
17. Display
18. Navigation buttoms
21. • O Pushbutton.Stop
22. • I Pushbutton.Start
23. • Δ Lamp. Alight by error
24. Outlet pressure sensor
4
4
7
13
8
9
10 10
3
6
12
5
110008450A
17
18
110002183
110008450
22
23
21
