Wiring
Important! Waterproof all connections whether inside or outside the vehicle by using sealant and wrapping with insulation tape. Wrap tape
tightly, overlapping by one-half widths so there are no gaps.
White Trig. Wire CAM 1 +
Blue Trig. Wire CAM 2 +
Brown Trig. Wire CAM 3+
Red (Power) +
2A INLINE FUSE SUPPLIED
Black (Ground) -
CAM 1
CAM 2
CAM 3

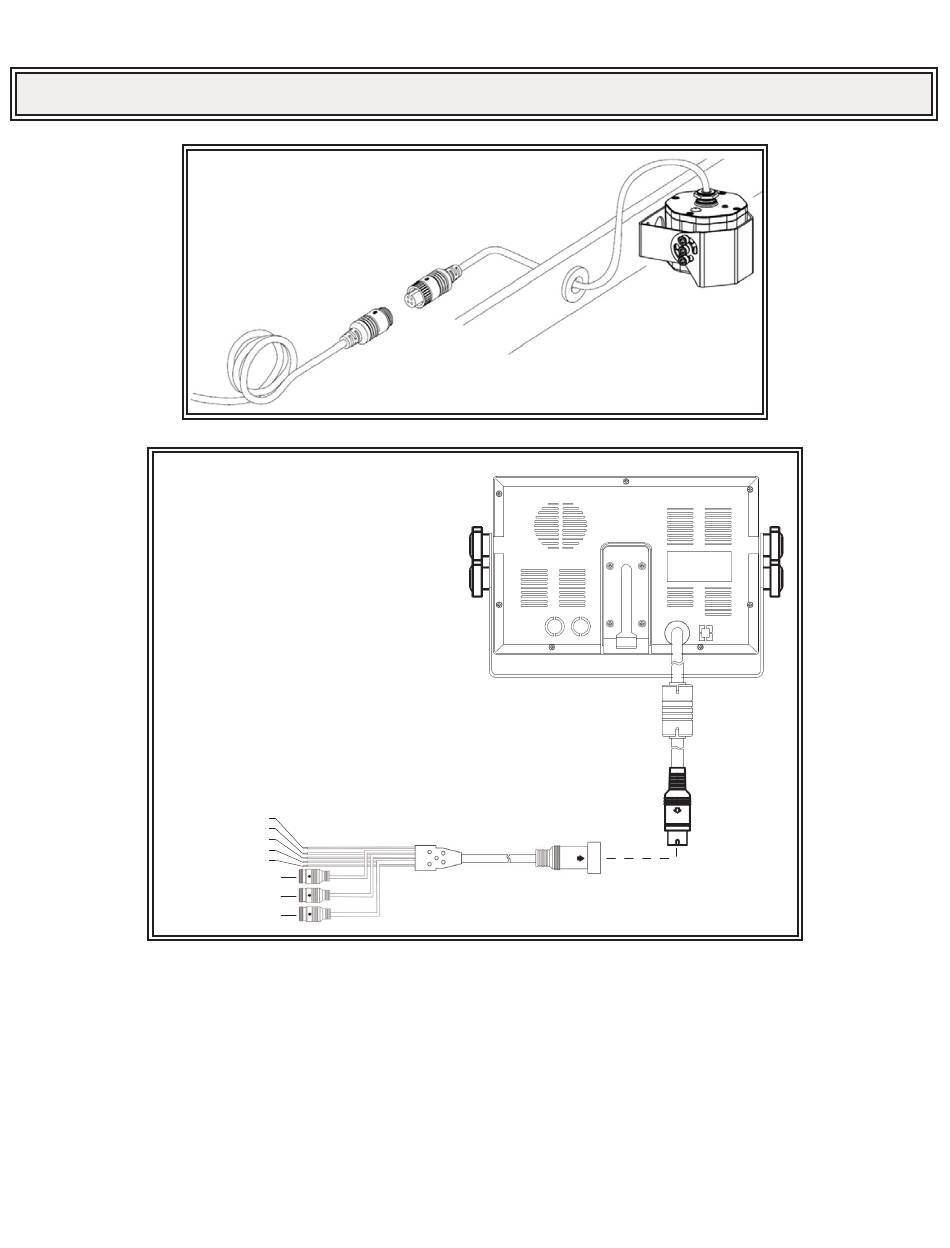

Figure 2
13 PIN FEMALE
WIRING DEFINED
13 PIN MALE
Page 4 of 10
