Model # 52233

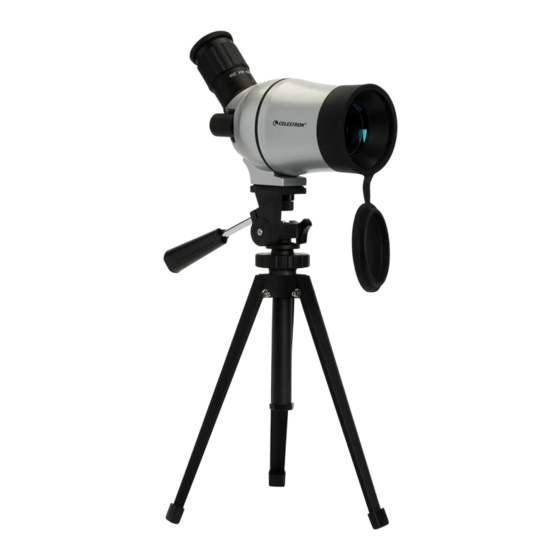

Congratulations on your purchase of the C50 Mini Mak Celestron spotting scope! Whether your interest is in sports, bird watching,
nature, wildlife, hunting, or other activities, these spotting scopes offer the finest optical quality guaranteed to
give you years of viewing pleasure.
Sight Tube
Maksutov Correcting Lens
Pan Locking Knob
Central Column
Tightening Ring
Central Column
Set Up your Spotting Scope
Remove the lens cap covering the Maksutov Correcting Lens by gently pulling it forward and then it will hang out of the way. Put the
zoom eyepiece on by threading it clockwise on the opening in the rear of the spotter until it is tight.
Setting Up the Table Tripod
Your spotting scope comes with a table tripod to support it for more stability when viewing. To set up the tripod:

Spread each of the three tripod legs outward until they come to a stop.

Make sure the pan handle and pan locking knob are tight (turn clockwise) with the mounting platform level.

Place the bottom of the spotting scope on top of the mounting platform where the tripod mounting screw will thread into the
1/4x20 hole in the plate on the bottom of the spotter. Secure the spotting scope by tightening the screw firmly.

You can adjust the central column of the tripod to the height you desire by loosening the central column tightening ring (turn
it counterclockwise) with one hand and holding the spotting scope in the other hand. After raising or lowering the central
column to where you want it, then tighten firmly the central column tightening ring.

The pan handle controls movement of the spotting scope.
counterclockwise) allows you free movement up/down and left/right and once at the position desired you lock them.
C50 Mini Mak Spotting Scope Instruction Manual
Focus Knob (on side of tube)
Rubber Eyecup
Zoom Eyepiece
Tripod Mounting Platform with
Mounting Screw underneath
Unlocking the pan handle and pan locking knob (turn
Pan Handle
Tripod Leg
