DESCRIPTION

SEL114 is a Slimrack standard selector allowing to route one digital audio input, among four, to one
same standard output.
The whole selection is made according to a synchronous commutation method: SEL114 commute to
the new selected source when the last frame is finished. If the two sources are synchronized, the
commutation is made without any interference noise. The bits user of various channels are
transparently broadcasted to the output.
Balanced digital input via XLR and via transformater (AES/EBU).
Balanced digital output via XLR and via transformater (AES/EBU )
External selection via SUB-D 9 points connector.
Front panel keypad selection.

USES

Digital audio signals monitoring in digital systems (Recording studio, Production studio...).
Digital audio sources routing.

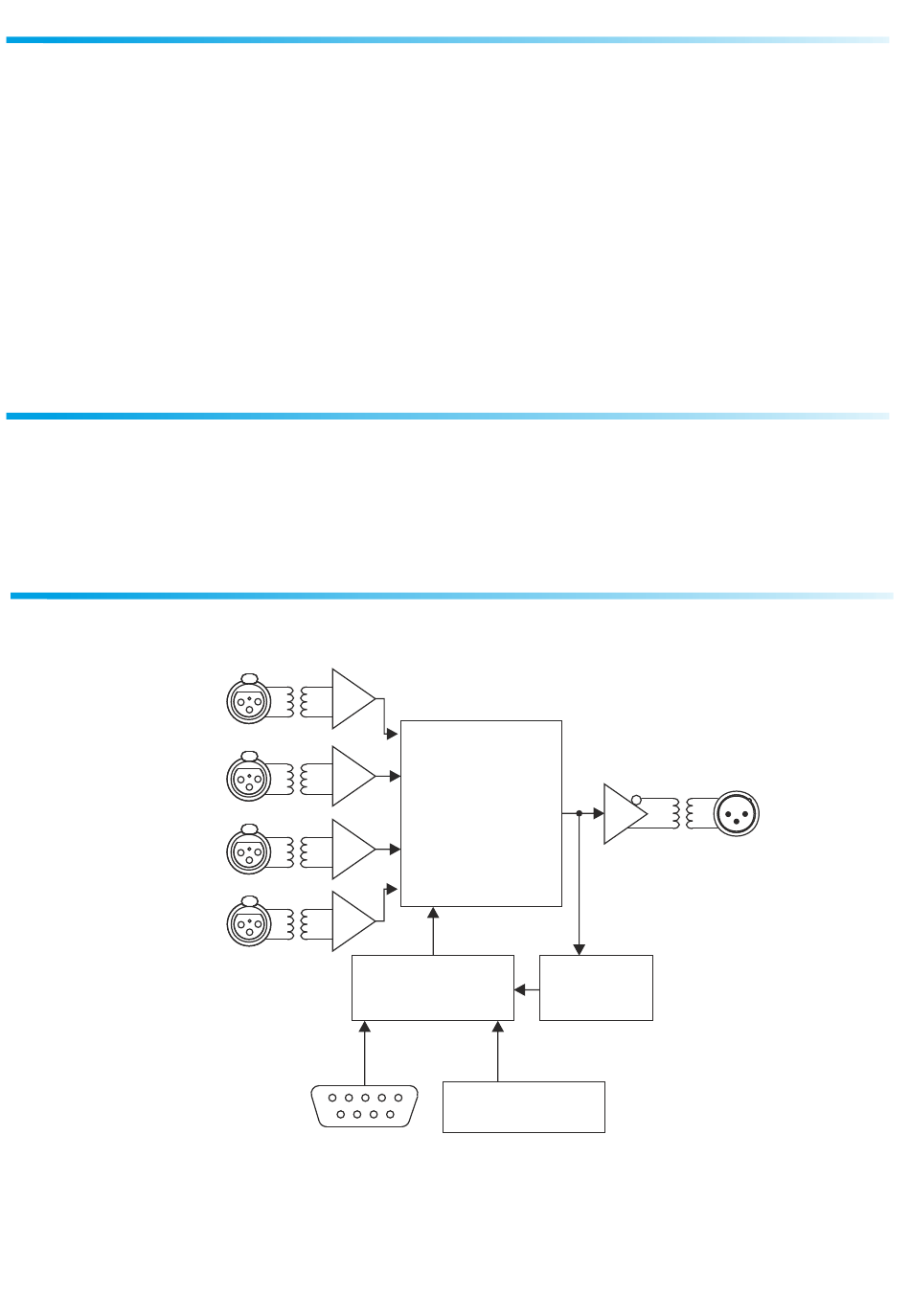

BLOCK DIAGRAM

AES/EBU
INPUT 1
AES/EBU
INPUT 2
AES/EBU
INPUT 3
AES/EBU
INPUT 4
Rami
PUSH
PUSH
PUSH
PUSH
Logic
Processor
External
Selection
Digital
Switcher
AES/EBU
Decoder
Front Panel
Keypad
10
AES/EBU
OUT
SEL114
