S P E C I F I C A T I O N S
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12,000 RPM
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 dBA
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Minimum Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" ID
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 PSIG
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.07"
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.85 LBS.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.82 CFM
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
MT2460
MT2460_manual_032706.indd 1
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other
masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
MT2460
Copyright © Professional Tool Products, 2006
1

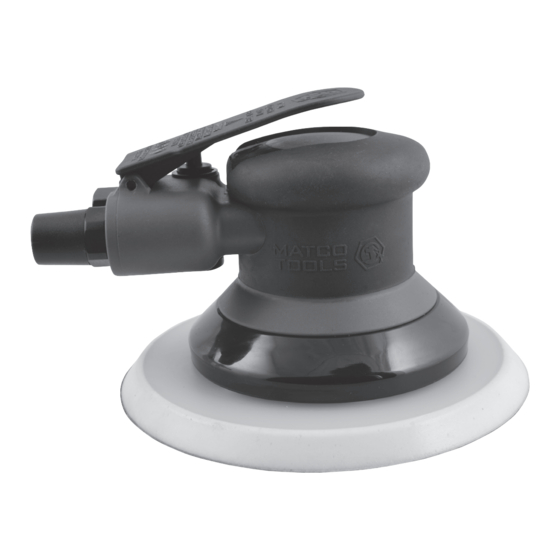

MT2460
6" HD
Random Orbital
Palm Sander
All rights reserved.
Rev. 03/27/06
3/29/06 7:52:21 AM

Publicité

loading

Sommaire des Matières pour Matco Tools MT2460

  • Page 1 S P E C I F I C A T I O N S MT2460 Free Speed ........... 12,000 RPM Sound Level .
  • Page 2 SUGGESTED APPLICATIONS Use the MT2460 to sand and finish a variety of materials including wood, metal, plastic, fiberglass composites, solid surfaces and other sandable surfaces. • Free speed of 12,000 revolutions per minute •...
  • Page 3 MT2460 6" HD Random Orbital Palm Sander • Low profile, low vibration 12,000 RPM variable speed palm sander • Recessed composite throttle lever for greater comfort • Inner locking cylinder and motor design for super high performance • New non-shrinking weight-matched pads for longer life •...
  • Page 4 MT2460 6" HD Random Orbital Palm Sander Ref. # Item # DESCRIPTION Ref. # Item # DESCRIPTION RS246001 Snap Ring (ISTW13) RS246021 Cylinder RS246002 O-Ring (S4) RS246022 Pin (3 x 14L) RS246003 Valve Stem RS246023 O-Ring (S8) RS288302 O-Ring (P10)
  • Page 5 S P É C I F I C A T I O N S MT2460 Vitesse à vide ..........12 000 R/MIN Niveau sonore .
  • Page 6 APPLICATIONS SUGGÉRÉES Utilisez la MT2460 pour poncer et faire la finition de matériaux comme le bois, le métal, le plastique, les composites de fibre de verre, les surfaces solides et d’autres surfaces qu’il est possible de poncer.
  • Page 7 MT2460 Ponceuse orbitale aléatoire manuelle 6" HD CARACTÉRISTIQUES • Ponceuse manuelle à vitesse variable 12 000 R/MIN, peu de vibrations et conception discrète • Levier de vitesse composite encastré pour un plus grand confort • Vérin de verrouillage interne et conception du moteur adaptés pour de très hautes performances •...
  • Page 8 E S P E C I F I C A C I O N E S MT2460 Velocidad libre ..........12,000 RPM Nivel sonoro .
  • Page 9 APLICACIONES SUGERIDAS Use la lijadora orbital MT2460 para lijar y acabar una variedad de materiales incluyendo la madera, el metal, el plástico, los compuestos de fibra de vidrio, las superficies sólidas y otras superficies lijables.
  • Page 10 MT2460 Lijadora orbital aleatoria de palma 6" Para servicio pesado • Lijadora de palma de velocidad variable de 12,000 RPM, baja vibración y configuración baja • Palanca compuesta y empotrada del estrangulador para mayor comodidad • Cilindro interior y diseño de motor de bloqueo para un super alto rendimiento •...
