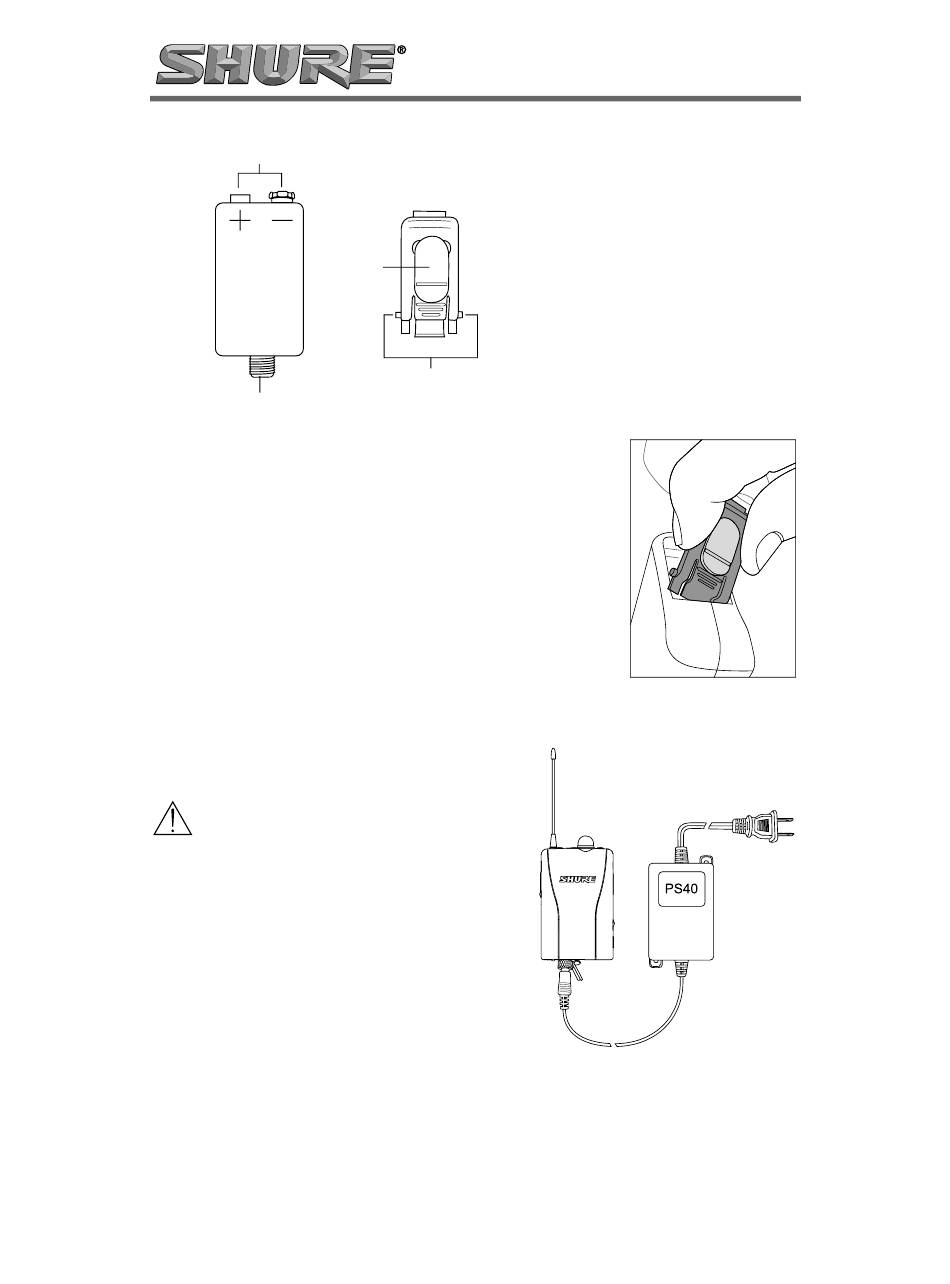

Shure PS9 Instructions

PS9 Battery Eliminator
Terminals
PS9
Threaded DC Connector
To install the PS9:
1. Turn off the bodypack.
2. Open the battery door and remove the 9V battery.
3. Remove the battery door as follows: with the battery door flipped open,
grip its base by the edges and squeeze firmly while twisting and
pulling it out.
4. Insert the flexible door as follows: dock one of the pegs at the base of
the door into the side of the battery compartment, as shown in figure
one. Then firmly squeeze the bottom edges of the door together while
twisting it and pressing in.
NOTE: Once this door is installed it is not necessary to change back
to the original door in order to use a 9V battery.
5. Insert the PS9 into the battery compartment, observing proper polarity.
6. Close the flexible door, lifting the rubber plug to allow the threaded DC
connector to extend outward.
7. Attach the PS40 locking connector to the PS9 threaded DC connector,
as shown in figure two.
8. Plug the PS40 into a power source.
9. Turn the bodypack on and confirm that it is working.
NOTE: Do not attach a 9V battery to the PS9. It is
not a battery charger and this may damage the PS9.
To use a 9V battery in place of the PS9:
1. Turn off the bodypack.
2. Disconnect the PS40 from the PS9 threaded DC
connector.
3. Open the flexible door and remove the PS9.
4. Insert the 9V battery, observing proper polarity.
5. Flip the rubber plug shut and close the door.
Furnished Components:
PS9 Battery Eliminator . . . . . . . . . . . . . . . . . 90A4794
Power Supply . . . . . . . . . . . . .PS40, PS40E, PS40UK
Flexible Door Assembly . . . . . . . . . . . . . . . . 90A4796
Replacement Battery Door . . . . . . . . . . . . . . 90A4797
Certification:
Eligible to bear CE Marking.
Conforms to European EMC Directive 89/336/EEC.
©2003 Shure Incorporated
27A8822 (Rev. 1)
Flexible Door
Rubber
Plug
Pegs
PS9 Instructions
The PS9 takes the place of a 9V battery,
allowing you to connect a PS40 AC adaptor
to the following Shure bodypack receivers
and transmitters:
• P2R • LX1
• P4R • UT1
• P4HW • ULX1
• T1 • MX1BP
• T1G
The PS9 also works with the VP3 camera-
mount receiver.
Figure 1
Figure 2
Specifications:
Input: 12–15V
Output: 9V at 100mA
Printed in U.S.A.
