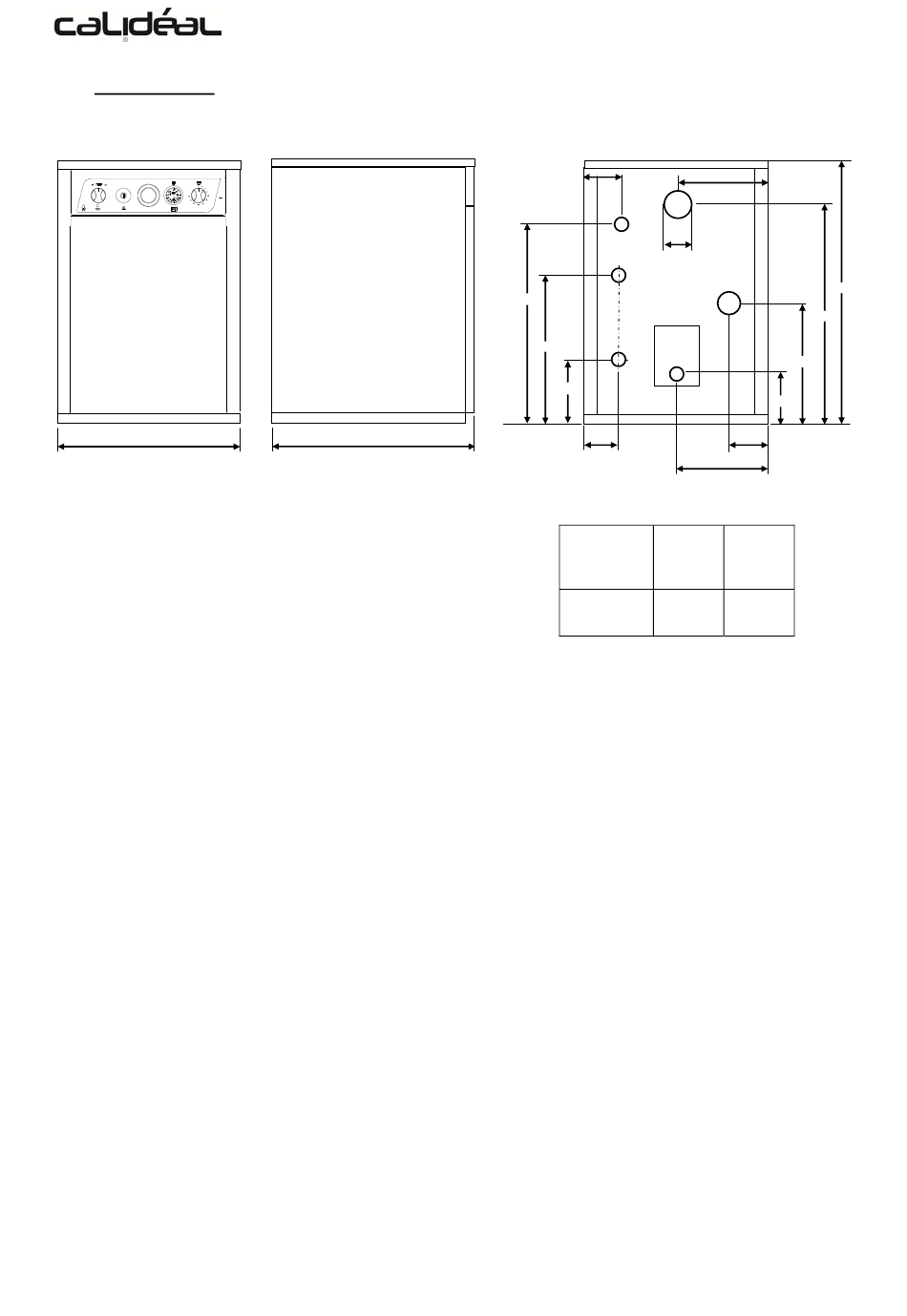

11.- DIMENSIONS
t
Gasoil ACU
565
DC :
Départ chauffage.
RC :
Retour chauffage.
SS :
Soupape de sécurité.
SC :
Sortie condensats, 1" H.
EA :
Entrée air de combustion, Ø80.
SF :
Sortie de fumées, Ø100.
L
700
550
300
COTE L
85
290
SF
VS
100
DC
EA
RC
SC
80
130
280
DC
RC
700
1" M
1" M
850
735
485
230
page ‐13‐
