AUTO-HAK F14 Mode D'emploi

ITTING INSTRUCTION
Clamp mark
in acc. with Cables joining
ISO PN
1 L Left directional lights
2 + Rear fog lights
3 31 Ground
4 R Right directional lights
5 58R Right side parking lights
6 54 Stoplights
7 58L Left side parking lights
6
5
5
6
14
13
Fig. 1
15

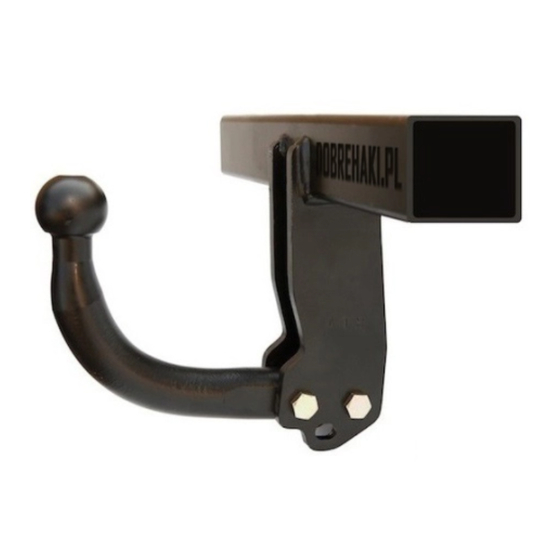

This towbar is designed to assembly in following car:
PEUGEOT 206, produced since 1998 till 06.2003, catalogue number F14
and is prepared to tow trailers max total weight 1100 kg and max vertical
load 50 kg.
Thank you for buying our product. Their reliability has been confirmed in
many tests. Reliability of towbar depends also on correct assembly and right
operation. For this reasons we kindly ask to read carefully this instruction and
apply to hints.
The towbar should be install in points described by a car producer.
6
5
1
13
12
3
From manufacturer
1. Disassemble the rear bumper and take silencer down from the rubber
supports.
2. Find the holes in the chassis on the left and right side then put two
special nuts (pos. 6) from the towbar accessories per each side.
6
3. Position the bar of towbar (pos. 1) to the chassis and fix with
M10x35mm (pos. 5) screws from the towbar accessories.
4. Cut the bumper according to fig. 2.
5. Reassemble the rear bumper.
6. Tighten all nuts and bolts according to the torque shown in the table.
7. Position the ball of towbar (pos. 2) and fix with M12x75mm screws
(pos. 4) from the towbar accessories.
8. Fix the socket plate (pos. 3) as shown on the drawing.
4
9. Connect the electric wires according to the instructions of the car.
16
10. Complete the paint cover of towbar (during the mounting paint cover
could be destroyed).
Fig. 2
2
After install the towbar you should get adequate note in registration book (at
authorised service station).The car should be equipped with:
•
Indicators
•
Tow mirrors
After 1000km of exploitation check all bolts and nuts. The ball of towbar must be
always kept clear and conserve with a grease.
The instruction of the assembly
Cut out
50
NOTE
