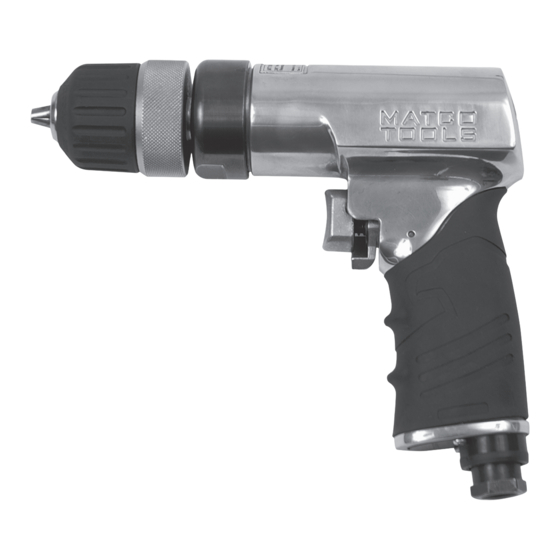

Perceuse pneumatique réversible 3/8 robuste avec mandrin sansclé hand-tite

Publicité

Les langues disponibles

Les langues disponibles

Liens rapides

• Operating Instructions • Warning Information
S P E C I F I C A T I O N S
Max. Free Speed........................................................................................... 1800 RPM
Air Inlet........................................................................................................... 1/4" NPT
Min. Air Hose Size.............................................................................................. 3/8" ID
Average Air Consumption............................................................ 3.4 CFM (24.21 SCFM)
Recommended Air Pressure................................................................................ 90 PSI
Sound Level........................................................................................................ 82 dBA
Length ........................................................................................................................7"
Net Weight....................................................................................................... 3.1 LBS.
Chuck Range Diameter............................................................................................3/8"
• MAXIMUM RPM OF 1800
• MAX AIR PRESSURE:
90 PSIG, 6.2 BAR
• RPM OF THE ACCESSORY
MUST EXCEED TOOL RPM
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
MT1889
MT1889_OpMan_111306.indd 1
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
MT1889
Copyright © Professional Tool Products, 2006
1
MT1889
3/8" Heavy Duty
Reversible Air
Drill with
Hand-Tite
®
Keyless Chuck
All rights reserved.
Rev. 11/13/06
11/21/06 9:09:53 AM
