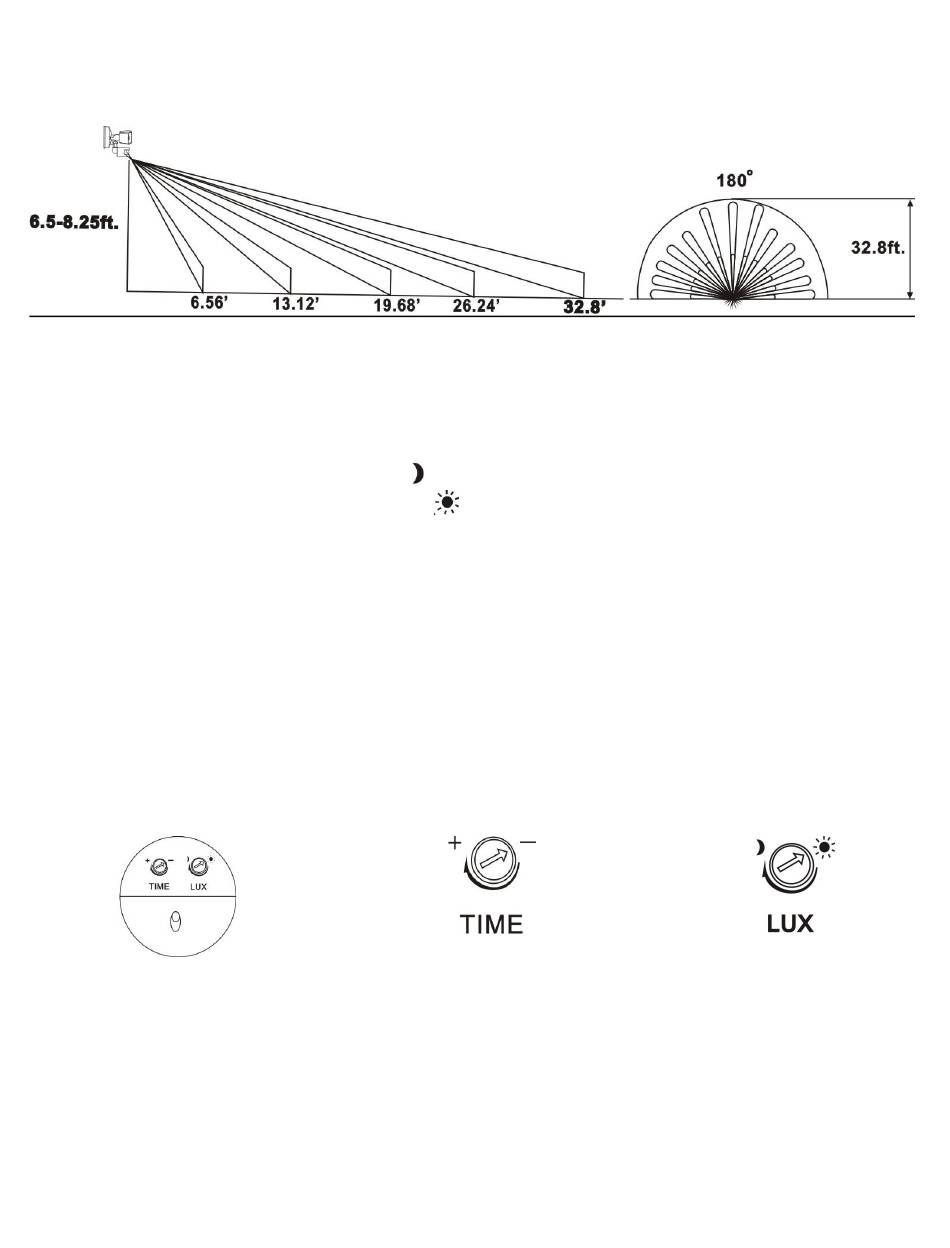

SETTING THE MOTION DETECTOR
Detection Range: 32.8ft (10m) * 180 degree
PIR SENSOR ADJUSTMENT
DUSK LEVEL SETTING (LUX) – controls the light level at which the motion security light triggers
 for motion in the dark, turn the dial to
 for motion in bright light, turn the dial to
DO NOT OVERTURN
TIME SETTING – controls the time span for light to be on when motion is detected
 turn the dial to the "+" side to increase the illumination time (7 minutes max.)
 turn the dial to the "-" to reduce the illumination time (5 seconds min.)
DO NOT OVERTURN.
Note: When you first install your security light, you must aim the sensor head to cover the desired area.
AIM LAMP HEADS AND PIR SENSOR
 Adjust the lamp head to get desired light direction
 Turn on electricity at fuse or circuit breaker box and verify success of installation
 Apply silicone caulking (not included) around the perimeter of the fixture where it contacts the
mounting surface for moisture seal
Fig. B
Fig. C
MS2HS-180
