Installation

The Revillusion™ Log Set RLG25BR / FC offers an alternative to wood or gas
fireplaces. It can give your existing fireplace new life or transform a cabinet or
media center of your own into a stunning focal point.
Specifications
Electrical
Volts: 120 V, 60 Hz
Amps: 12.5 A
Watts: 1500 W
Wiring: Plug-In
Bulb Type: LED
Approvals
Dimensions
Width: 25.6" (635 mm)
Height: 19.0" (483 mm)
Depth: 13.0" (330 mm)
Weight: 12 lbs (5.4 kg)
Operating Temperature Range:
-4 to 104 F (-20
o o
!
NOTE: A 15 Amp, 120 Volt circuit
is required. A dedicated circuit is
preferred, but not essential in all cases.
A dedicated circuit will be required if,
after installation, the circuit breaker trips
or the fuse blows on a regular basis
when the heater is operating. Additional
appliances on the same circuit may
exceed the current rating of the circuit
breaker.
WARNING: Electrical outlet wiring
must comply with local building codes
and other applicable regulations to
reduce the risk of fire, electric shock, or
injury to persons.
6
to 40 C)
o o

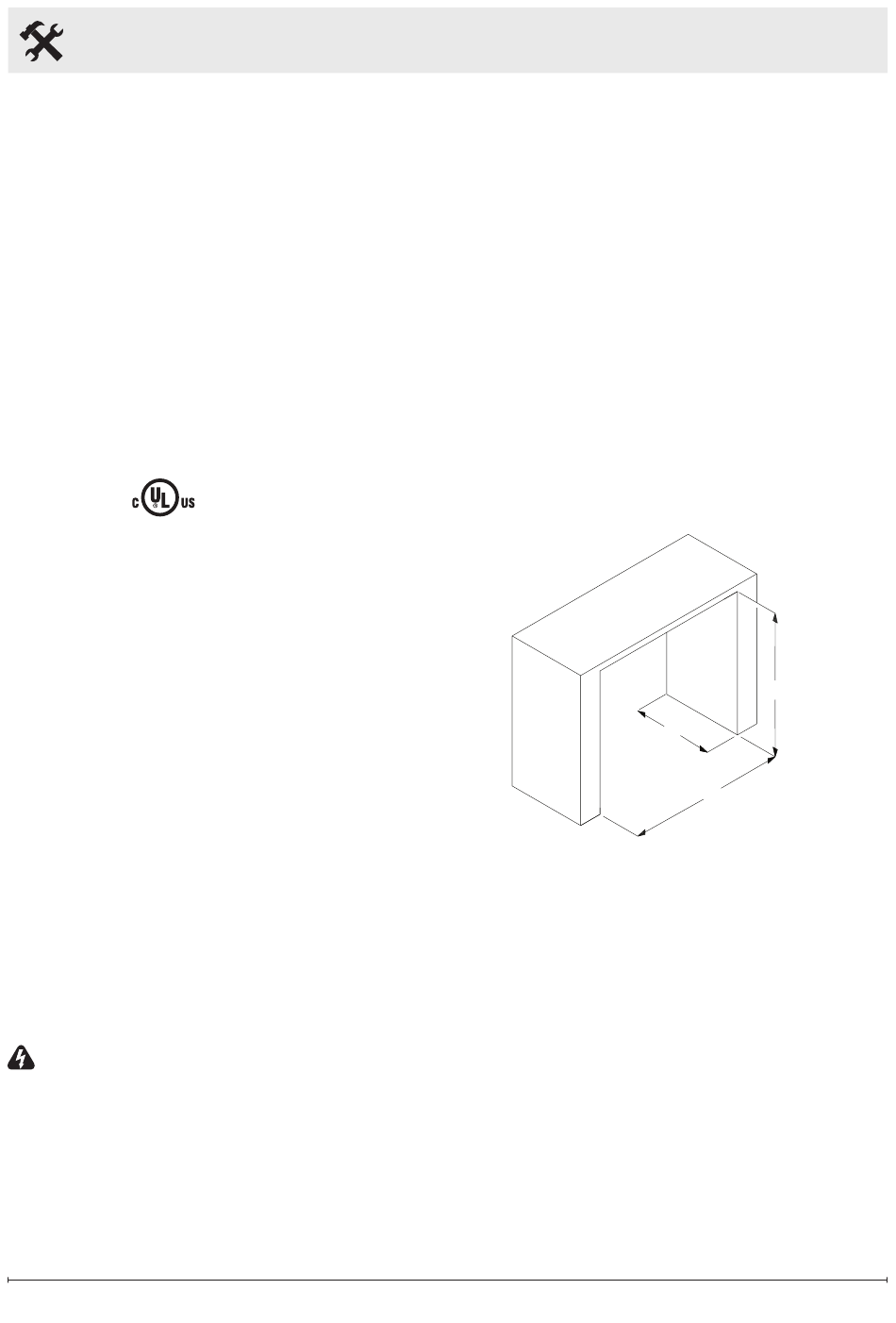

Placement
1.
The Revillusion log set does not
require venting. For optimal viewing,
it is recommended to install the unit
in an opening with the following
minimum dimensions:
A. 26" (660 mm) wide,
B. 22" (559 mm) high
C. 15" (381 mm) deep.
2.
Make sure there is clearance for air
circulation beneath the unit.
3.
If installing in an existing fireplace
opening, seal all drafts and vents
with a non-fibrous insulation
material to prevent any chimney
debris from falling onto the unit. Do
not install into an existing fireplace
opening that is prone to dampness.
B
C
A
