INTRODUCTION
EN
This instruction sheet provides you with the information required to safely own and
operate your Little Giant pump. Retain these instructions for future reference.
The Little Giant pump you have purchased is of the highest quality workmanship
and material, and has been engineered to give you long and reliable service. Little
Giant pumps are carefully tested, inspected, and packaged to ensure safe delivery
and operation. Please examine your pump carefully to ensure that no damage
occurred during shipment. If damage has occurred, please contact the place of
purchase. They will assist you in replacement or repair, if required.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO
INSTALL, OPERATE, OR SERVICE YOUR LITTLE GIANT PUMP. KNOW THE
PUMP'S APPLICATION, LIMITATIONS, AND POTENTIAL HAZARDS. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE!
SAFETY GUIDELINES
1. Make certain that the unit is disconnected from the power source before
attempting to service or remove any component.
2. Do not use to pump flammable or explosive fluids such as gasoline, fuel oil,
kerosene, etc. Do not use in explosive atmospheres. Pump should only be
used with liquids compatible with pump component materials.
3. Do not handle pump with wet hands or when standing on a wet or damp
surface or in water.
4. This pump is supplied with a grounding conductor and/or grounding type
attachment plug. To reduce the risk of electric shock. be certain that it is
connected to a properly grounded grounding type receptacle.
5. Support pump and piping when assembling and when installed. Failure to do
so may cause piping to break, pump to fall, motor bearing failures, etc.
6. Pump is an oil-filled pump, the motor housing is filled with a dielectric lubricant
at the factory for optimum motor heat transfer and lifetime lubrication of
the bearings. Use of any other lubricant could cause damage and void the
warranty. This lubricant is non-toxic; however, if it escapes the motor housing,
it should be removed from the surface quickly by placing newspapers or other
absorbent material on the water surface to soak it up.
ELECTRICAL CONNECTIONS
1. Check the pump label for proper voltage required. Do not connect to voltage
other than that shown.
2. If pump is supplied with a 3-prong electrical plug, the third prong is to ground
the pump to prevent possible electrical shock hazard. DO NOT REMOVE the
third prong from the plug. A separate branch circuit is recommended. Do not
use an extension cord.
3. If the cord is equipped with stripped lead wires, such as on 230v models, be sure
that the lead wires are connected to a power source correctly. The (green/yellow)
wire is the ground. The (blue or white) and the (brown or black) are live.
CONSULT INSTRUCTION SHEET ILLUSTRATIONS FOR PROPER ASSEMBLY AND
DISASSEMBLY OF YOUR LITTLE GIANT PUMP.
1. Turn on power.
2. Test the unit after it is installed by filling the tank with water until the pump
comes on. Check the lines for leaks and kinks that will prevent full water
disposal. If water is not available, test the pump by removing the switch
screen and inserting differentiator top into switch housing bottom.
CAUTION: Do not run pump dry for more than a couple of seconds. Do not test
this way if water is present.
1. The #1 style pump must be run submerged. The pump should be placed with
the screen as a base. If the surface is sandy or muddy, provide a smooth
surface for the pump to be placed on.

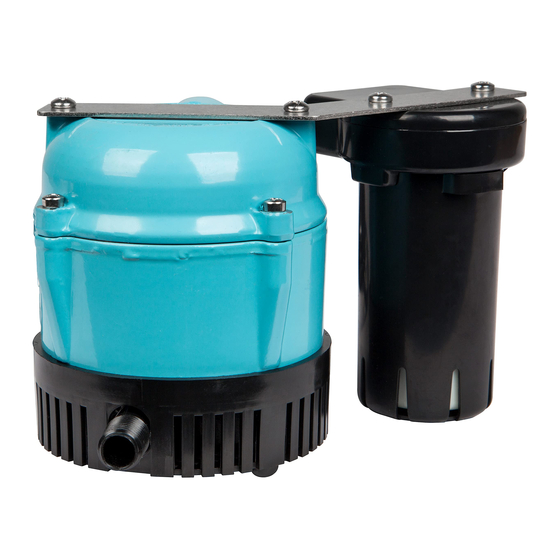

1-ABS
Hydroponic Pump
Pompe Hydroponique
Bomba Hidropónica
WARNING
WARNING
TESTING
WARNING
OPERATION
WARNING
2. Do not attempt to restrict the intake side of these pumps. Restricting the intake
may cause damage to the seal and may starve the pump. If you require reduced
flow rates, then place a valve on the discharge side of the pump or if flexible
vinyl tubing is used, a clamp can be used on the tubing to restrict the flow.
3. Do not let the unit operate dry (without liquid). It is designed to be cooled by
pumping fluid. You may damage the seal and the motor may fail if the pump is
allowed to run dry.
4. If the unit is going to be idle for a period of time, follow the cleaning instructions
outlined in the next section. Do not let the unit freeze in the wintertime. This
may cause cracking or distortion that may destroy the unit.
5. If fused type plug is used on 230 volt units, a 2.0 amp fuse is recommended.
6. If using an aluminum body pump in an area with water having a high mineral
content (hard water) or if other metals (copper tubing, metal fountain heads, etc.)
are present, a condition called "galvanic corrosion" may occur. The recommended
solution to this situation is the use of a sacrificial anode attached to the pump. This
anode works on the same principle as the anode found in water heaters and boat
motors. Contact your local distributor and ask for the model SA-1 by Little Giant.
SERVICE INSTRUCTIONS
MAKE CERTAIN THAT THE UNIT IS DISCONNECTED FROM THE POWER
SOURCE BEFORE ATTEMPTING TO SERVICE OR REMOVE ANY COMPONENT!
1. This unit is permanently lubricated. Oiling is not required. Do not, in any case,
open the sealed portion of the unit or remove housing screws. The power
cord on these units cannot be replaced. In case of damage the whole unit
must be replaced.
2. Periodic cleaning of the pump parts will prolong the life and efficiency of the
pump. Refer to Figure 2 for the assembly and disassembly of the pumping head.
3. Be sure the float moves freely. Clean as necessary.
4. First remove the intake screen from the pump. Then remove the three screws as
indicated by the arrows. (DO NOT remove other screws which may be exposed.)
5. Lightly clean any corrosion or debris which may clog the impeller. Use a brush
and penetrating oil and lightly scrape to remove encrusted material.
6. Turn the impeller by hand to make sure it turns freely. Set pump down so the
pump and impeller are not touching anything. Plug the unit into GFCI circuit for
2-3 seconds to see if the impeller turns; a) If it is rotating and GFCI did not trip,
unplug unit and install parts in reverse order in which they were removed. b) If
it does not rotate, if pump is tripping circuit breakers, or not operating properly
after cleaning, replace pump.
7. Be certain power cord is in good condition and contains no nicks or cuts.
Figure 1
INTRODUCTION
FR
Cette feuille d'instructions vous fournit les informations nécessaires pour entretenir
et faire fonctionner votre produit Little Giant. Conserver ces directives afin de
pouvoir les consulter plus tard.
Le produit Little Giant que vous avez acheté a été soigneusement fabriqué avec des
matériaux de la plus haute qualité et a été conçu pour durer longtemps et offrir un service
fiable. Les produits Little Giant sont soigneusement testés, inspectés et emballés afin
d'en assurer la sécurité de fonctionnement et une livraison en bonne condition. Vérifier
attentivement le produit afin de vous assurer qu'il n'a pas été endommagé pendant le
transport. S'il est endommagé, veuillez contacter l'entreprise qui vous l'a vendu. Si une
réparation ou un remplacement est requis, elle vous prêtera assistance.
LIRE ATTENTIVEMENT CES DIRECTIVES AVANT DE PROCÉDER À
L'INSTALLATION, À L'UTILISATION OU À L'ENTRETIEN DU PRODUIT LITTLE
GIANT. SE FAMILIARISER AVEC LES APPLICATIONS, LES LIMITES ET LES
RISQUES POTENTIELS DU PRODUIT. ASSURER SA PROPRE PROTECTION
WARNING
ET CELLE DES AUTRES EN SUIVANT TOUTES LES RÈGLES DE SÉCURITÉ.
LE NON-RESPECT DE CES DIRECTIVES PEUT ENTRAÎNER DES BLESSURES
AVERTISSEMENT
ET/OU DES DOMMAGES MATÉRIELS!
DIRECTIVES DE SECURITE
1. Veiller à débrancher l'appareil de sa source d'alimentation électrique avant
l'entretien ou la dépose d'une ou de plusieurs piéces.
2. Ne pas pomper des fluides explosifs ou inflammables tels qu'essence, mazout,
kérosène, etc. Ne pas employer dans une atmosphère comportant des risques
de déflagration. La pompe ne doit servir qu'à pomper des liquides compatibles
avec les matériaux utilisés pour la fabrication des éléments qui la composent.
WARNING
AVERTISSEMENT
