MCS-D 3643 – Installation Examples

10. Installation examples

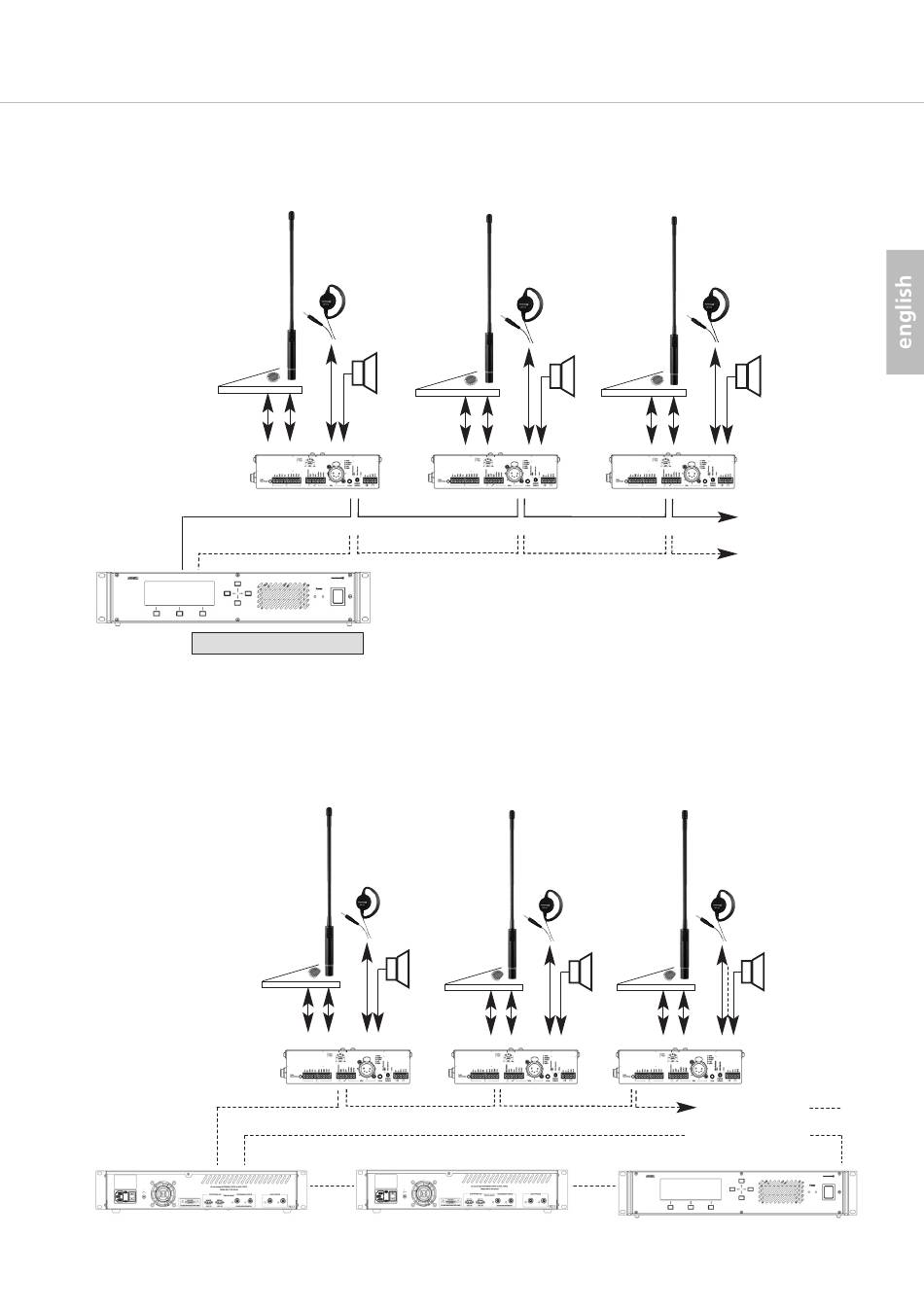

Installation with external components and MCS-D 200 control unit
Classis GM 314 E
button
MCS-D 3643
+ CA 4100 internal power supply
MCS-D 200
Installation with external components, MCS-D 200 control unit and external CA 4146 power supply unit
Classis GM 314 E
button
MCS-D 3643
CA 4146 external power supply unit
DT 1 S
Classis GM 314 E
button
CA 43xx cable
CA 43xx cable
DT 1 S
Classis GM 314 E
button
CA 43xx cable
CA 4146 external power supply unit
DT 1 S
Classis GM 314 E
button
DT 1 S
Classis GM 314 E
button
max. 45 microphone
units; redundant cabling
recommended for more
than 40 microphone
units
MCS-D 200 control unit
33
DT 1 S
max. 15 microphone
units
max. 30 microphone
units (with second
internal power supply
in MCS-D 200)
DT 1 S
